Battery Module

PST-0124-400-00

Download data sheet

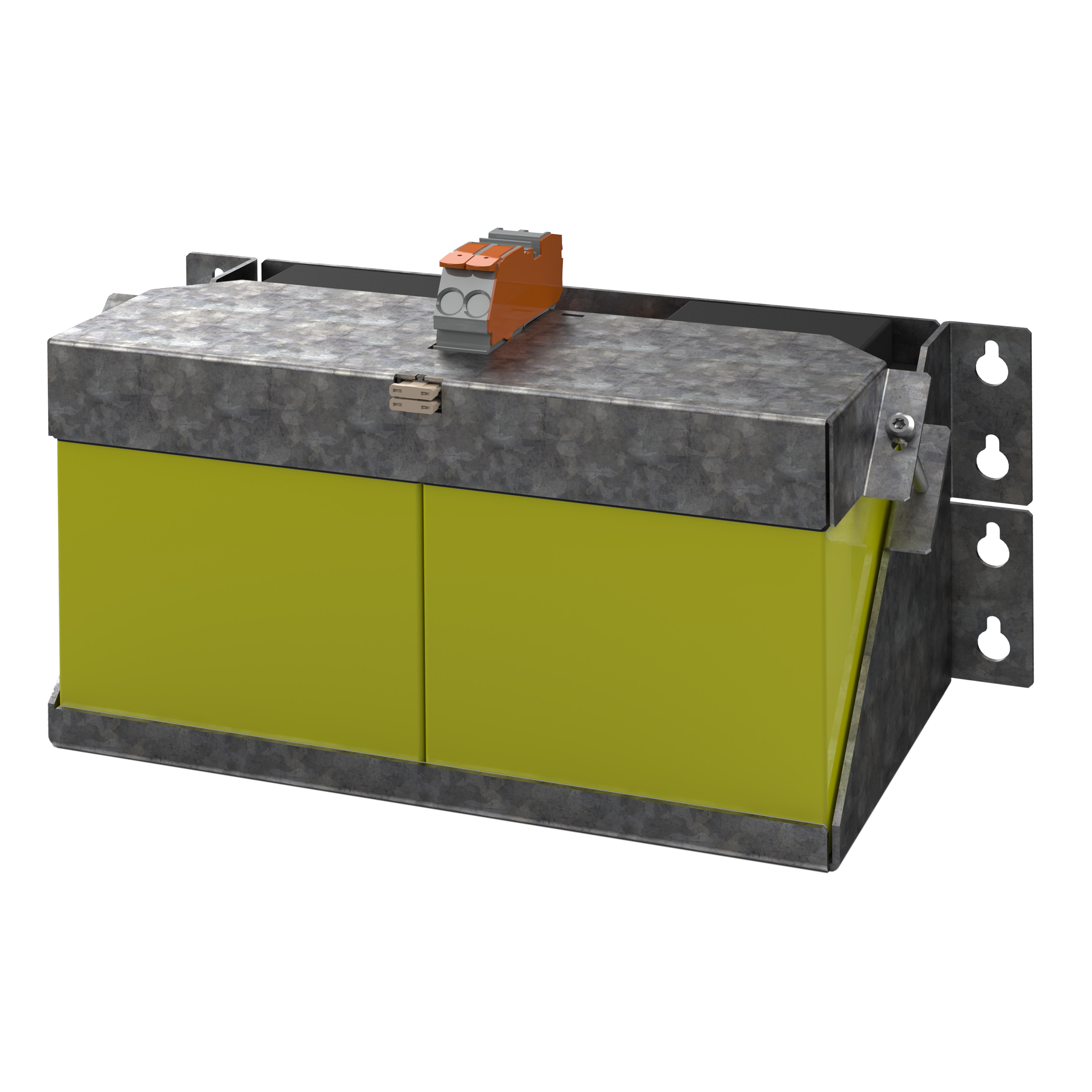

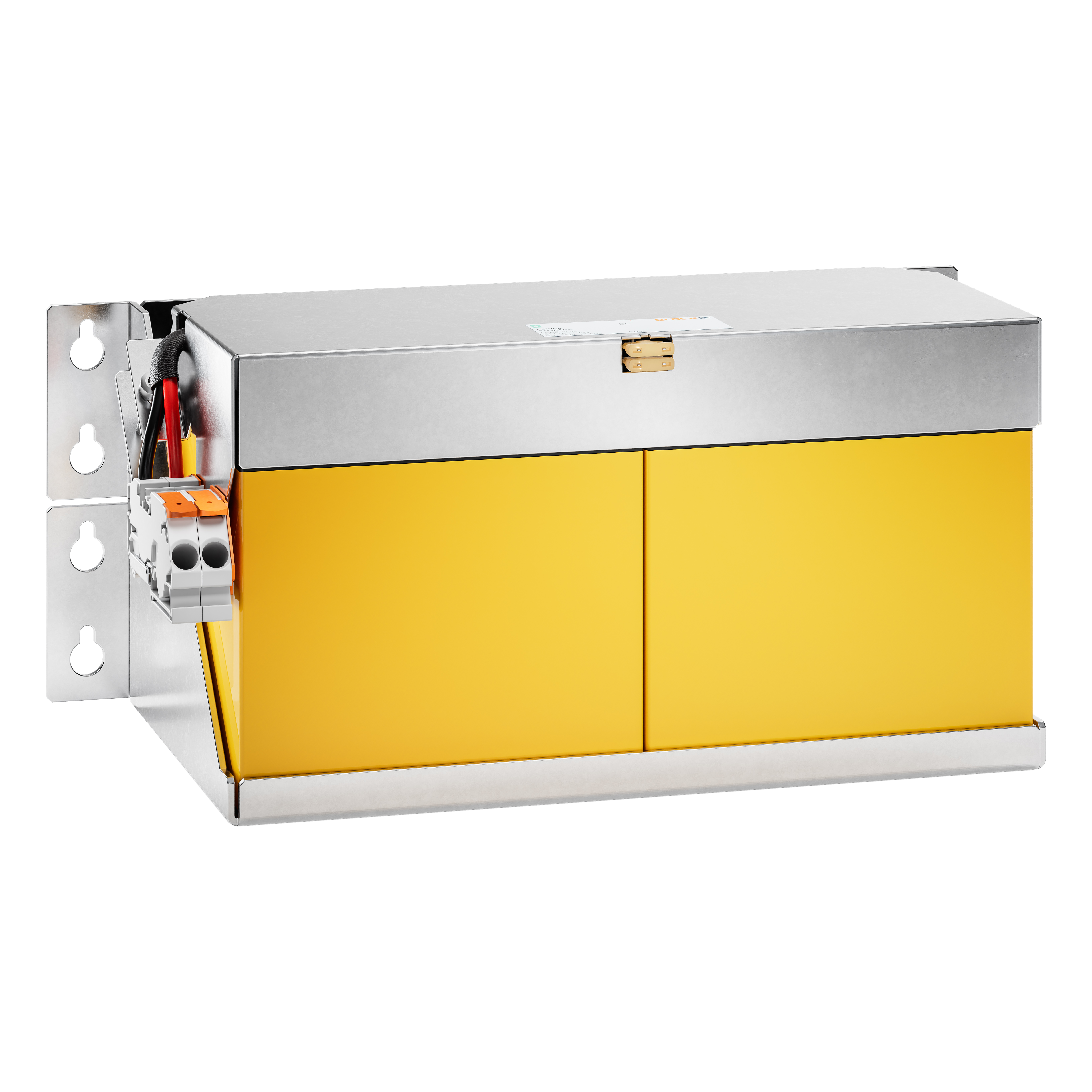

Image of BLOCK Item: PST-0124-400-00

Characteristics

Benefits

› Space-saving battery module

› Temperature-controlled charging via the upstream charging and control unit

› With lever and push-in terminal for quick wiring

Product Battery Module
Order number PST-0124-400-00
Series POWER STORAGE
Input
Rated input voltage 24 Vdc
Input voltage range 24 Vdc
Output
Rated output voltage 24 Vdc
Rated Output Current 40 A
Output voltage range 24 Vdc
Rated capacity 40 Ah
Parallel connection possible Yes
Environment
Ambient temperature -15 °C to 40 °C / 5 °F to 104 °F
Storage temperature -20 °C to 40 °C / -4 °F to 104 °F
Protection and Safety
Protection class according to EN 61140 III
Size and Weight
Width 417 mm / 16.42 in
Height 225 mm / 8.86 in
Depth 212 mm / 8.35 in
Weight 10 kg / 22.046 lbs
