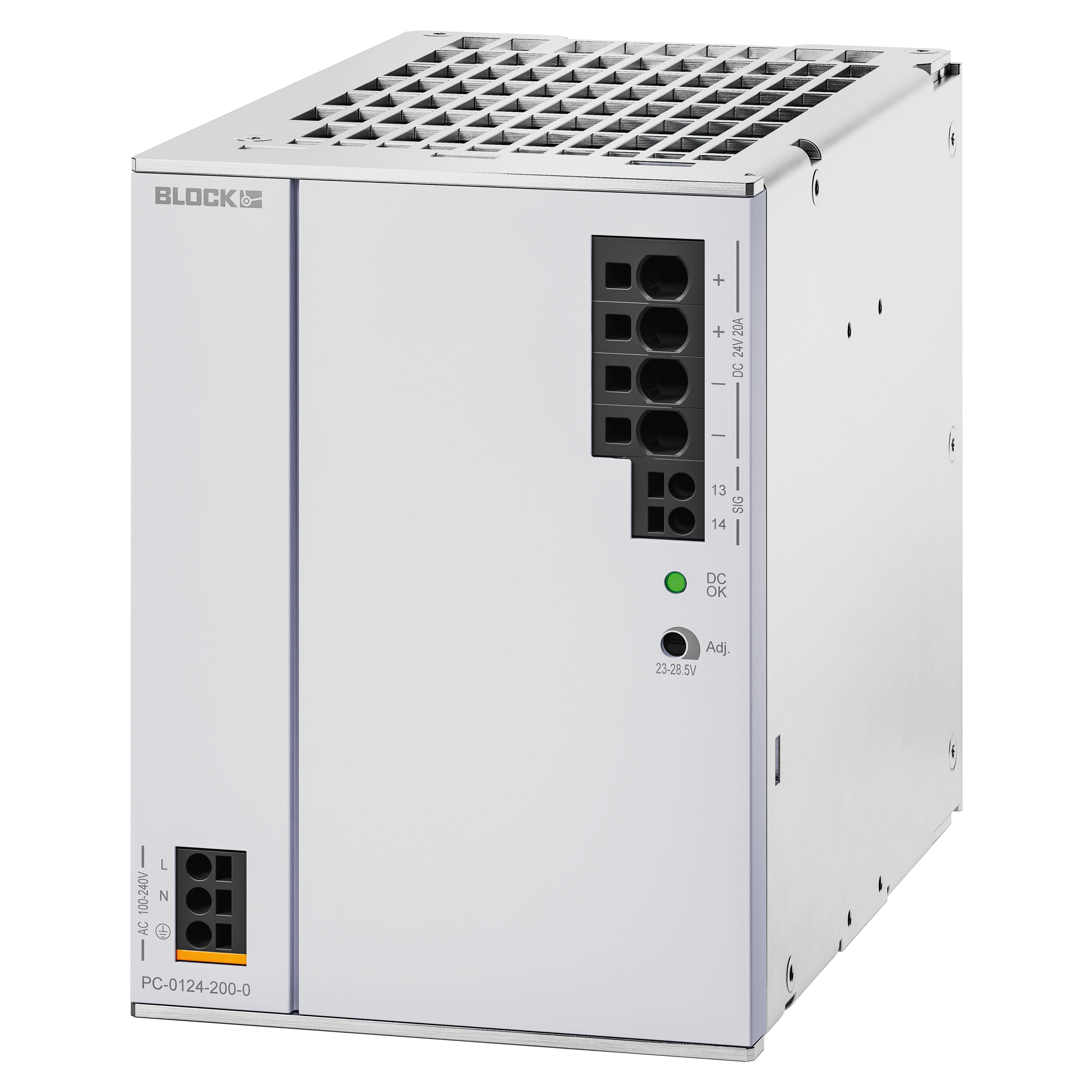

Primary switched mode power supply, single-phase

PC-0124-200-0

Characteristics

Benefits

 Stabilised and adjustable output voltage

 Fast tripping of conventional circuit breakers

 DC OK signalling

 Parallel operation

 Push-in terminals

 Robust DIN rail mounting

 Resistant to transient overvoltages up to 4 kV

 3 years warranty

Product Search
Product Primary switched mode power supply, single-phase
Order number PC-0124-200-0
Input
Rated input voltage 100 Vac to 240 Vac
Input voltage range 85 Vac to 264 Vac
Input voltage range 120 Vdc to 372 Vdc
Rated input current (rated load) (100Vac) 5.56 A
Rated input current (rated load) (230Vac) 2.23 A
Internal input fuse 10 AT
Switch-on time (100Vac) 0.45 s
Switch-on time (230Vac) 0.20 s
Rated frequency range AC 44 Hz to 66 Hz
Rated frequency range DC 0 Hz
Inrush current limitation NTC < 30 A
Recommended preliminary fuse 10A, 16A, B/C-Char.
Mains failure bridging (rated load) (100Vac) 20.0 ms
Mains failure bridging (rated load) (230Vac) 20.0 ms
Output
Power 480 W
Rated output voltage 24 Vdc
Rated Output Current 20 A
Output voltage range 23 Vdc to 28.5 Vdc
Output Current Limitation (Constant Current) typ. 22 A
Ripple (rated load) typ. 70 mVss
Power factor 0.98
Max. power loss 68.3 W
Max. feedback resistance 35 Vdc
Verlustleistung Leerlauf (230Vac) 7.20 W
Verlustleistung Nennlast (230Vac) 42.40 W
Efficiency 92 %
Parallel connection possible Yes
Series connection possible Yes
Signaling
Signal output Relay contact
Status display Green LED
Enviroment
Ambient temperature -25 °C to 70 °C / -13 °F to 158 °F
Storage Temperature -25 °C to 85 °C / -13 °F to 185 °F
Humidity without condensation 5 % to 96 %
Cooling type natural convection
Required minimum distance (side) 0 mm
Required minimum distance (top/bottom) 50 mm
Protection and Safety
Degree of pollution 2
Protection class according to EN 61140 III, without PE connection
Size and Weight
Width 95 mm / 3.74 in
Height 127 mm / 5 in
Depth 159 mm / 6.26 in
Weight 1.7 kg / 3.75 lbs
