Battery module

PST-0124-120-00

Download data sheet

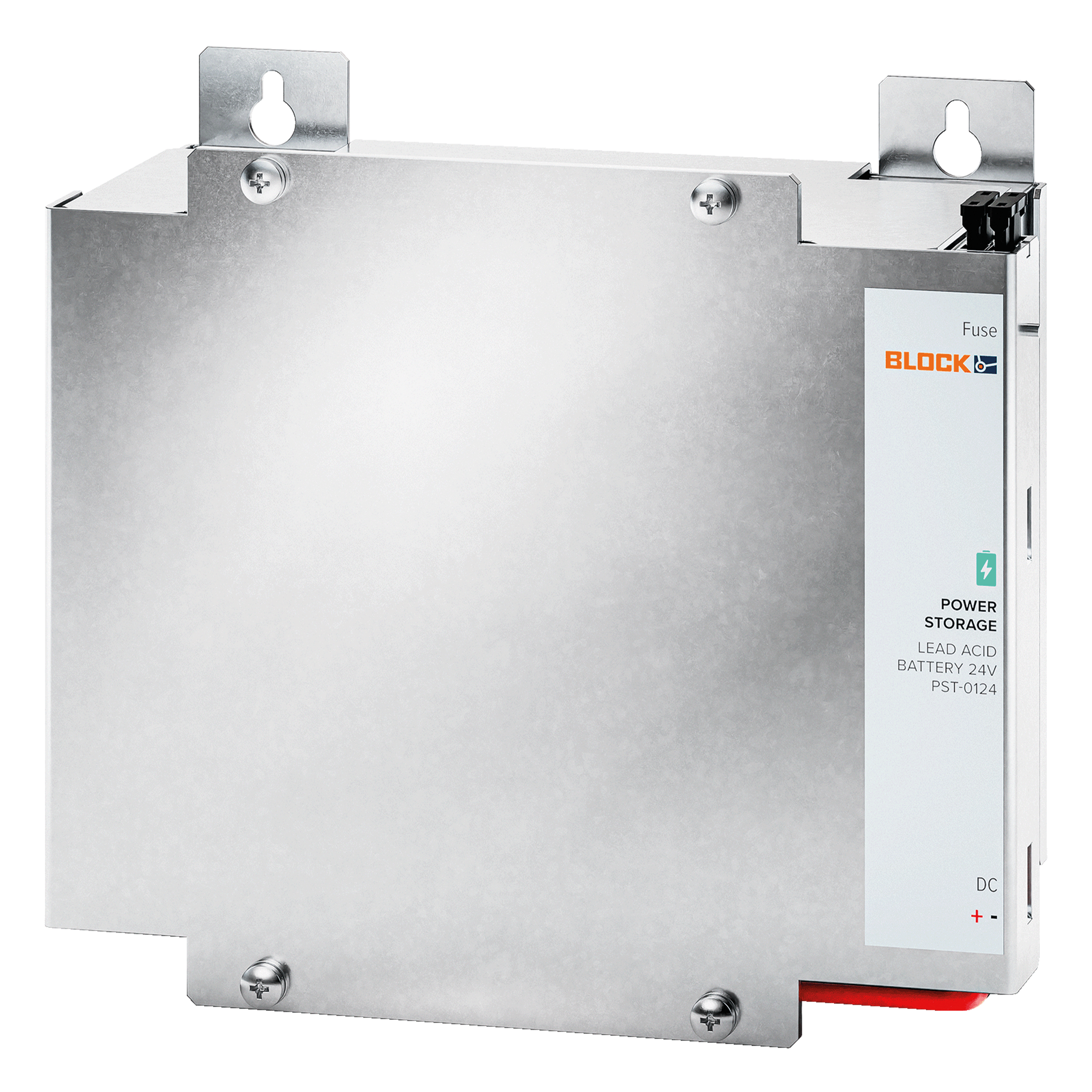

Image of BLOCK Item: PST-0124-120-00

Characteristics

Benefits

› Space-saving battery modul

› Temperature-controlled charging via the upstream charging and control unit

› Pre-assembled connection cables

Product Battery module
Order number PST-0124-120-00
Series POWER STORAGE
Input
Rated input voltage 24 Vdc
Input voltage range 24 Vdc
Output
Rated output voltage 24 Vdc
Rated Output Current 40 A
Output voltage range 24 Vdc
Rated capacity 12 Ah
Parallel connection possible Yes
Environment
Ambient temperature -15 °C to 40 °C / 5 °F to 104 °F
Storage temperature -20 °C to 40 °C / -4 °F to 104 °F
Protection and Safety
Protection class according to EN 61140 III
Size and Weight
Width 216 mm / 8.5 in
Height 190 mm / 7.48 in
Depth 111 mm / 4.37 in
Weight 10 kg / 22.046 lbs
cURus UL 508 - Recognized
Symbol cURus - Recognized
RoHS directive
Zulassung CE
