Primary switched mode power supply, two-phase,

PM-0224-038-0

Characteristics

Benefits

 Stabilised and adjustable output voltage

 Low idling losses 0,1 W

 Constant current limiting without overload shutdown

 DC OK signalling

 Parallel operation option

 Push-in terminals

 Panel installation on mounting rails

 3 years warranty

Product Search

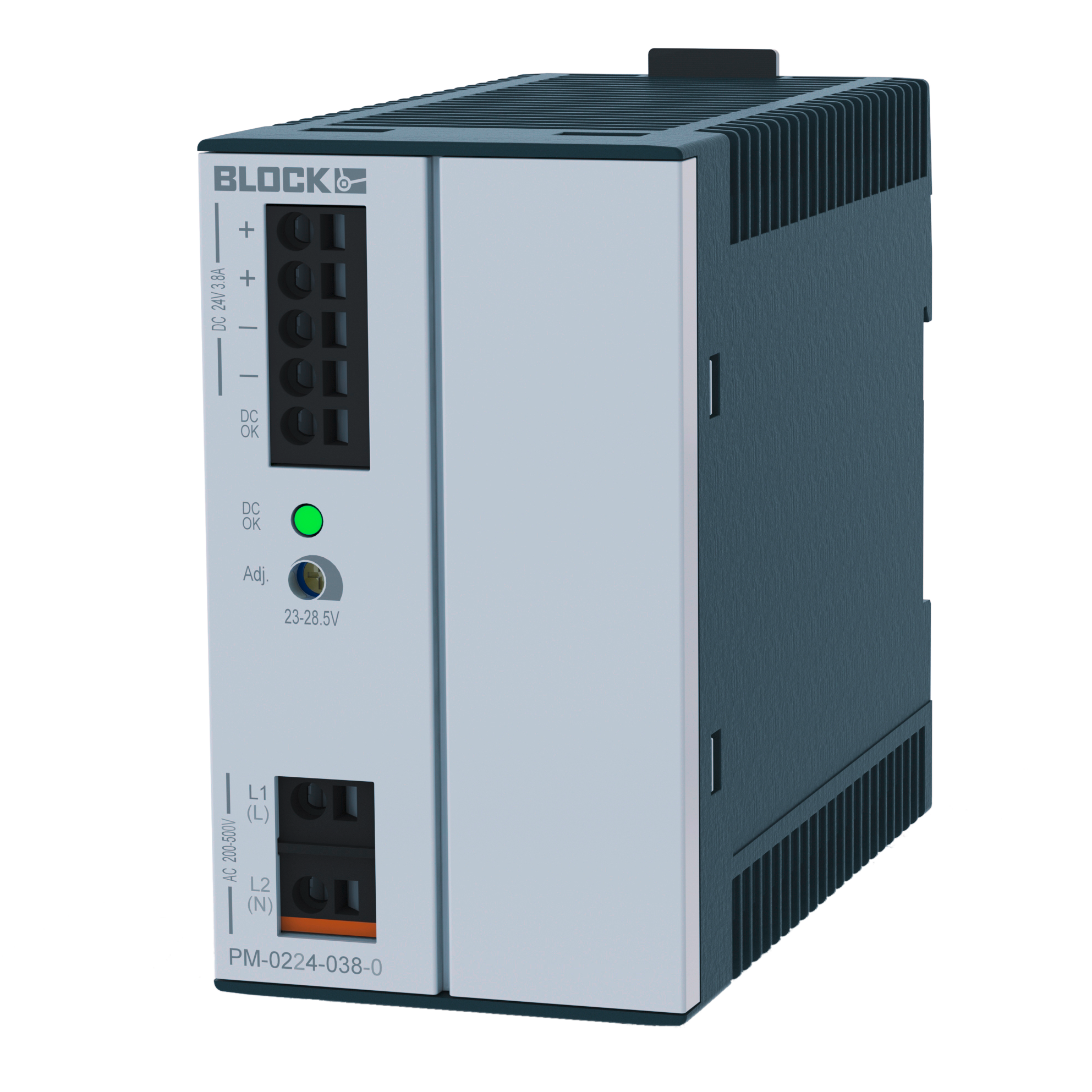

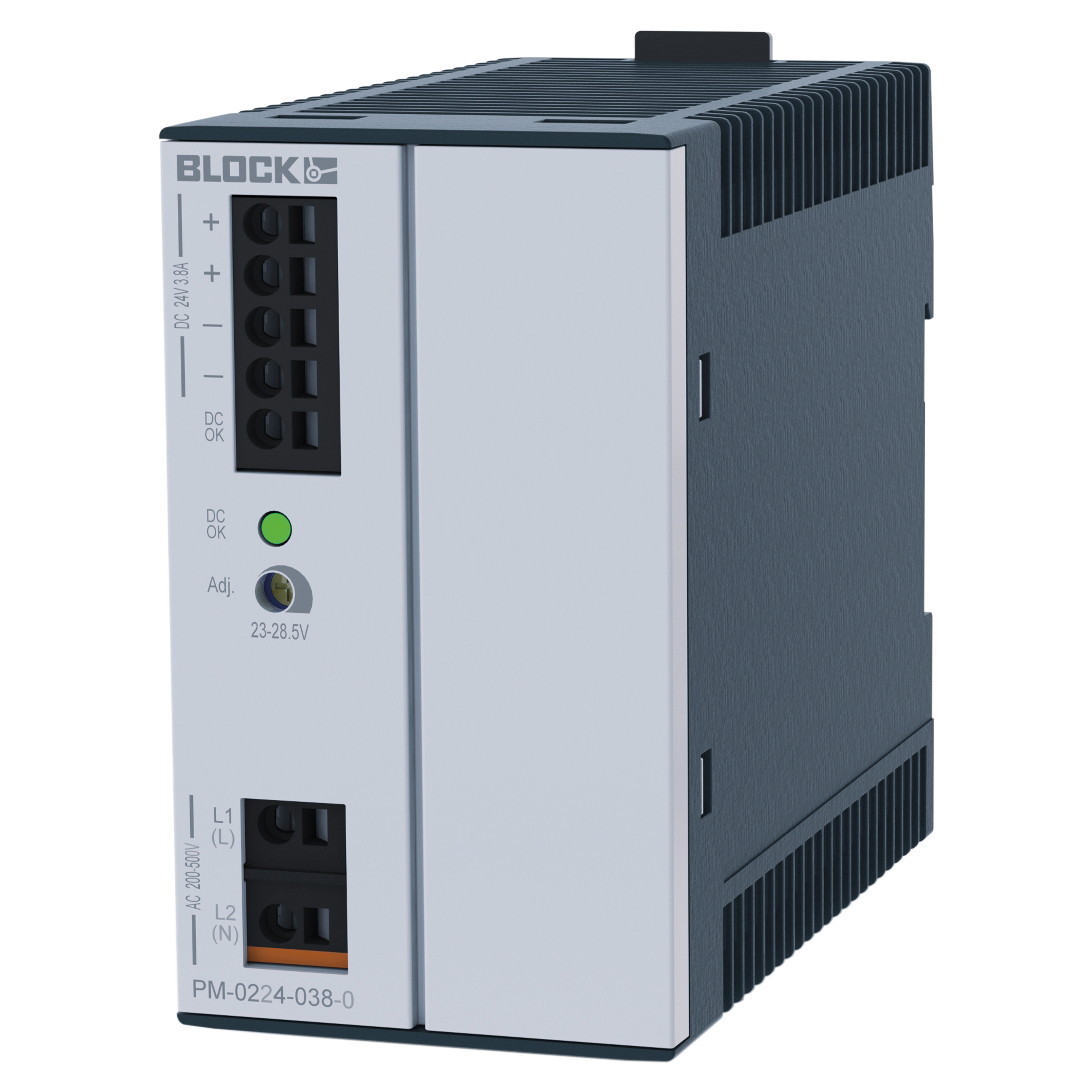

Product Primary switched mode power supply, two-phase,
Order number PM-0224-038-0
Series PM 2AC
Input
Rated input voltage 200 Vac to 500 Vac
Input voltage range 180 Vac to 575 Vac
Input voltage range 254 Vdc to 800 Vdc
Rated input current (rated load) (230Vac) 0.82 A
Rated input current (rated load) (500Vac) 0.52 A
Internal input fuse 3.15 AT
Switch-on time (230Vac) 1.20 s
Switch-on time (400Vac) 0.80 s
Rated frequency range AC 44 Hz to 66 Hz
Rated frequency range DC 0 Hz
Inrush current limitation NTC < 30 A
Recommended preliminary fuse 6A, 10A, 16A, B/C-Char.
Mains failure bridging (rated load) (230Vac) 15.0 ms
Mains failure bridging (rated load) (400Vac) 60.0 ms
Output
Power 91 W
Rated output voltage 24 Vdc
Rated Output Current 3.8 A
Output voltage range 23 Vdc to 28.5 Vdc
Output Current Limitation (Constant Current) typ. 3.8 A
Ripple (rated load) typ. 30 mVss
Power factor 0.66
Max. power loss 13.2 W
Max. feedback resistance 35 Vdc
Verlustleistung Leerlauf (230Vac) 0.93 W
Verlustleistung Leerlauf (400Vac) 1.80 W
Verlustleistung Nennlast (230Vac) 11.00 W
Verlustleistung Nennlast (400Vac) 11.00 W
Überspannungsschutz des Ausgangs 40.0 Vdc
Parallel connection possible Yes
Series connection possible Yes
Signaling
Signal output Relay contact
Status display Green LED
Environment
Ambient temperature -25 °C to 70 °C / -13 °F to 158 °F
Storage temperature -25 °C to 85 °C / -13 °F to 185 °F
Humidity without condensation 5 % to 96 %
Cooling type natural convection
Required minimum distance (side) 0 mm
Required minimum distance (top/bottom) 50 mm
Protection and Safety
Degree of pollution 2
Protection class according to EN 61140 II, without PE connection
Size and Weight
Width 52 mm / 2.05 in
Height 90 mm / 3.54 in
Depth 111 mm / 4.37 in
Weight 0.37 kg / 0.816 lbs

Conrad Electronic SE

Product link

Premier Farnell Limited

Product link

This could also be of interest to you

PC-0424-010-00
Capacitive uninterruptible power supply • IN: 24 Vdc • OUT: 24 Vdc 20 A • 1 kWs internal capacity
Product details

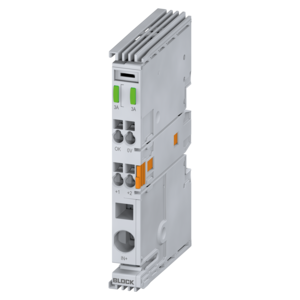

EB-2724-2060-0
