Batteriemodul

PST-0124-180-00

Download data sheet

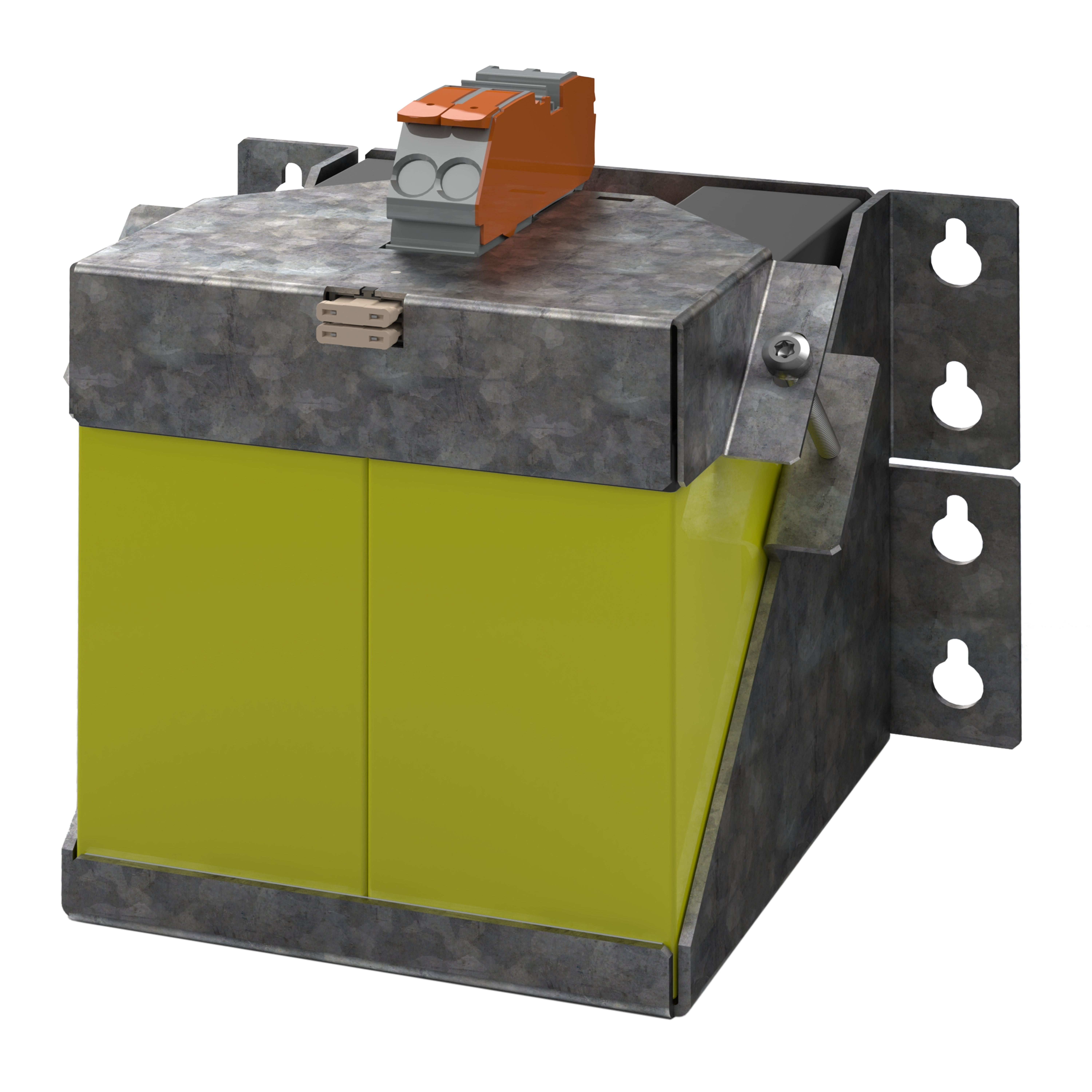

Image of BLOCK Item: PST-0124-180-00

Characteristics

Benefits

› Platzsparendes Batteriemodul

› Temperaturgeführtes Laden über die vorgeschaltete Lade- und Kontrolleinheit

› Mit Hebel und Push-in Klemme zur schnellen Verdrahtung

Product Batteriemodul
Order number PST-0124-180-00
Series POWER STORAGE
Input
Rated input voltage 24 Vdc
Input voltage range 24 Vdc
Output
Rated output voltage 24 Vdc
Rated Output Current 40 A
Output voltage range 24 Vdc
Rated capacity 18 Ah
Parallel connection possible Ja
Environment
Ambient temperature -15 °C to 40 °C / 5 °F to 104 °F
Storage temperature -20 °C to 40 °C / -4 °F to 104 °F
Protection and Safety
Protection class according to EN 61140 III
Size and Weight
Width 183 mm / 7.2 in
Height 183 mm / 7.2 in
Depth 185 mm / 7.28 in
Weight 14.5 kg / 31.967 lbs
