Buffered primary mode power supply, single-phase

PCC-4124-040-01

Download data sheet

Characteristics

General data

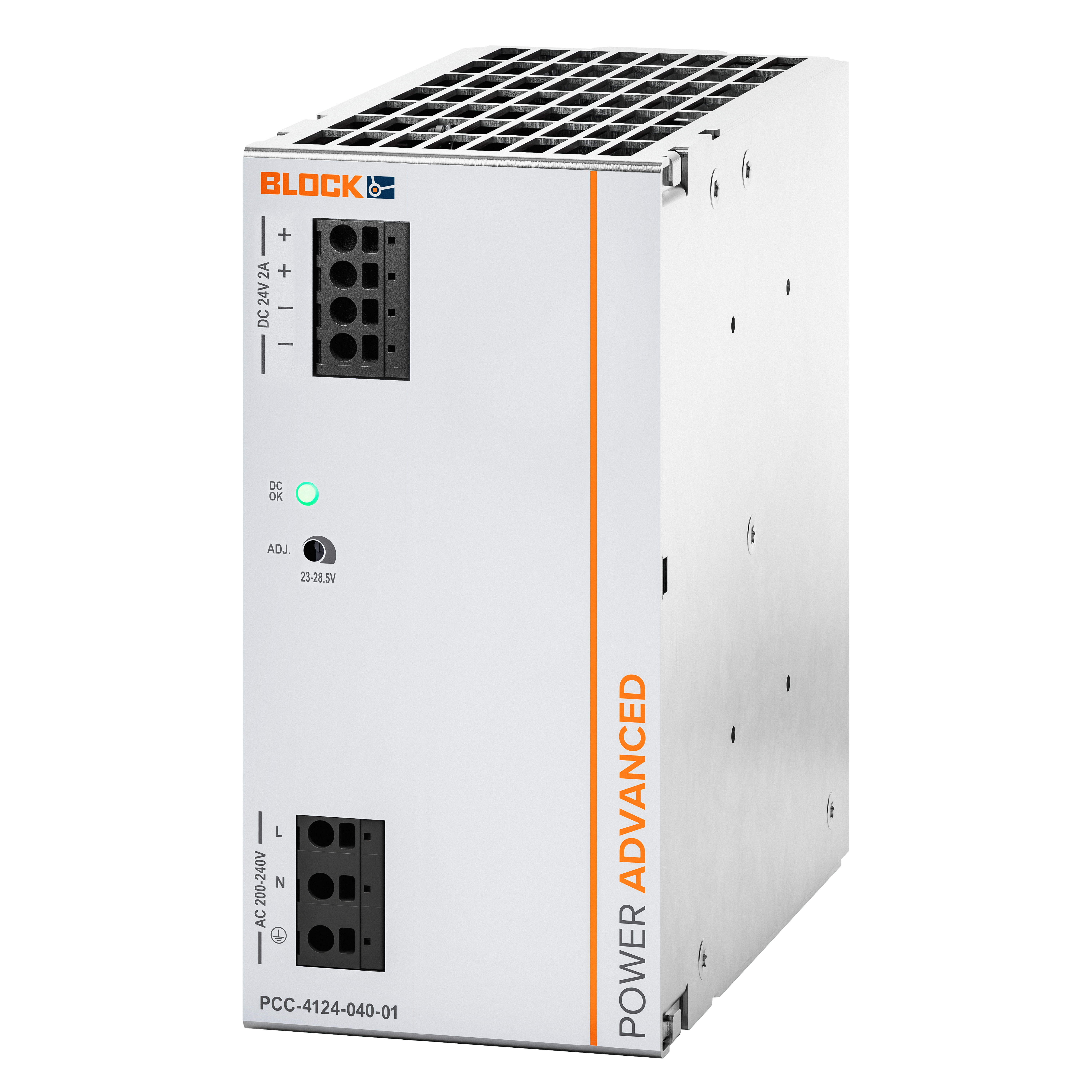

The reliable PCC-4124-040-01 power supply combines a power supply unit and buffering in a compact housing. This ensures a flawless power supply even during short power interruptions. The space-saving design in combination with the mounting rail attachment enables quick and easy installation in control cabinets. The DC OK status is indicated by an LED.

Benefits

› Power supply with integrated UPS functionality

› FRT capability >5s (4A)

› Complies with the requirements of the VDE-AE-N 4105 and TOR generator guidelines

› Continuous buffering of the set output voltage without voltage drop

› High temperature range: +70°C

› Maintenance-free thanks to supercapacitors

› Operating indicator LED signal

› Mounting rail attachment

› 3-year warranty

Product Search

Technical Data

Product	Buffered primary mode power supply, single-phase
Order number	PCC-4124-040-01
Series	POWER ADVANCED

Input

Rated input voltage	200 Vac to 240 Vac
Rated input voltage	230 Vdc
Input voltage range	180 Vac to 264 Vac
Rated input current (rated load) (230Vac)	1.50 A
Internal input fuse	4 AT
Rated frequency range AC	44 Hz to 66 Hz
Rated frequency range DC	0 Hz
Inrush current limitation NTC <	30 A
Recommended preliminary fuse	6A, 10A, 16A, B/C-Char.

Output

Power	92 W
Rated output voltage	24 Vdc
Rated Output Current	4 A
Output voltage range	23 Vdc to 28 Vdc
Ripple (rated load) typ.	100 mVss
Max. power loss	6 W
Max. feedback resistance	35 Vdc
Rated capacity	2025 Ws

Signaling

Status display

Green LED

Conditions

Environment

Ambient temperature	-25 °C to 70 °C / -13 °F to 158 °F
Storage temperature	-25 °C to 85 °C / -13 °F to 185 °F
Humidity without condensation	5 % to 96 %
Cooling type	natürliche Konvektion
Required minimum distance (side)	5 mm
Required minimum distance (top/bottom)	50 mm
