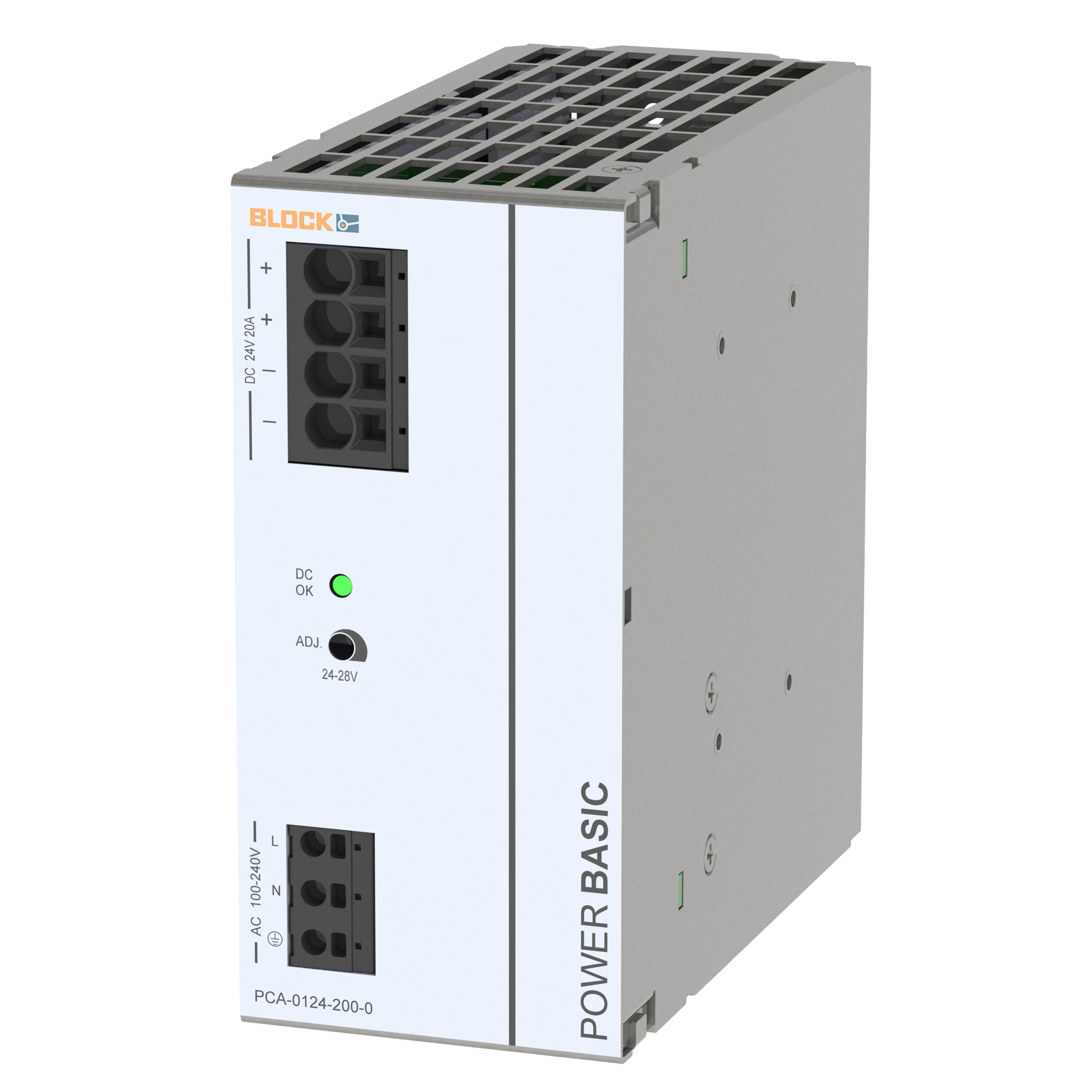

Primary-switched power supply, single-phase
PCA-0124-200-0
Characteristics
Benefits
› Easy integration
› High power density
› Robust technology
| Product | Primary-switched power supply, single-phase |
| Order number | PCA-0124-200-0 |
| Series | POWER BASIC |
Input
| Rated input voltage | 100 Vac to 240 Vac |
| Input voltage range | 90 Vac to 264 Vac |
| Input voltage range | 120 Vdc to 300 Vdc |
| Rated input current (rated load) (100Vac) | 5.55 A |
| Rated input current (rated load) (230Vac) | 2.40 A |
| Internal input fuse | 10 AT |
| Rated frequency range AC | 47 Hz to 63 Hz |
| Rated frequency range DC | 0 Hz |
| Inrush current limitation NTC < | 30 A |
| Recommended preliminary fuse | 10A, 16A, 20A, B/C-Char. |
Output
| Power | 480 W |
| Rated output voltage | 24 Vdc |
| Rated Output Current | 20 A |
| Output voltage range | 24 Vdc to 28 Vdc |
| Output Current Limitation (Constant Current) typ. | 23 A |
| Ripple (rated load) typ. | 100 mVss |
| Power boost | - |
| Max. feedback resistance | 35 Vdc |
| Verlustleistung Leerlauf (230Vac) | 5.00 W |
| Überspannungsschutz des Ausgangs | 40.0 Vdc |
| Parallel connection possible | with redundancy module |
| Series connection possible | Ja |
Signaling
| Status display | Green LED |
Environment
| Ambient temperature | -25 °C to 70 °C / -13 °F to 158 °F |
| Storage temperature | -40 °C to 85 °C / -40 °F to 185 °F |
| Humidity without condensation | 5 % to 96 % |
| Cooling type | natural convection |
| Required minimum distance (side) | 0 mm |
| Required minimum distance (top/bottom) | 45 mm |
Protection and Safety
| Degree of pollution | 2 |
| Protection class according to EN 61140 | I |
Size and Weight
| Width | 59 mm / 2.32 in |
| Height | 127 mm / 5 in |
| Depth | 125 mm / 4.92 in |
| Weight | 1 kg / 2.205 lbs |
