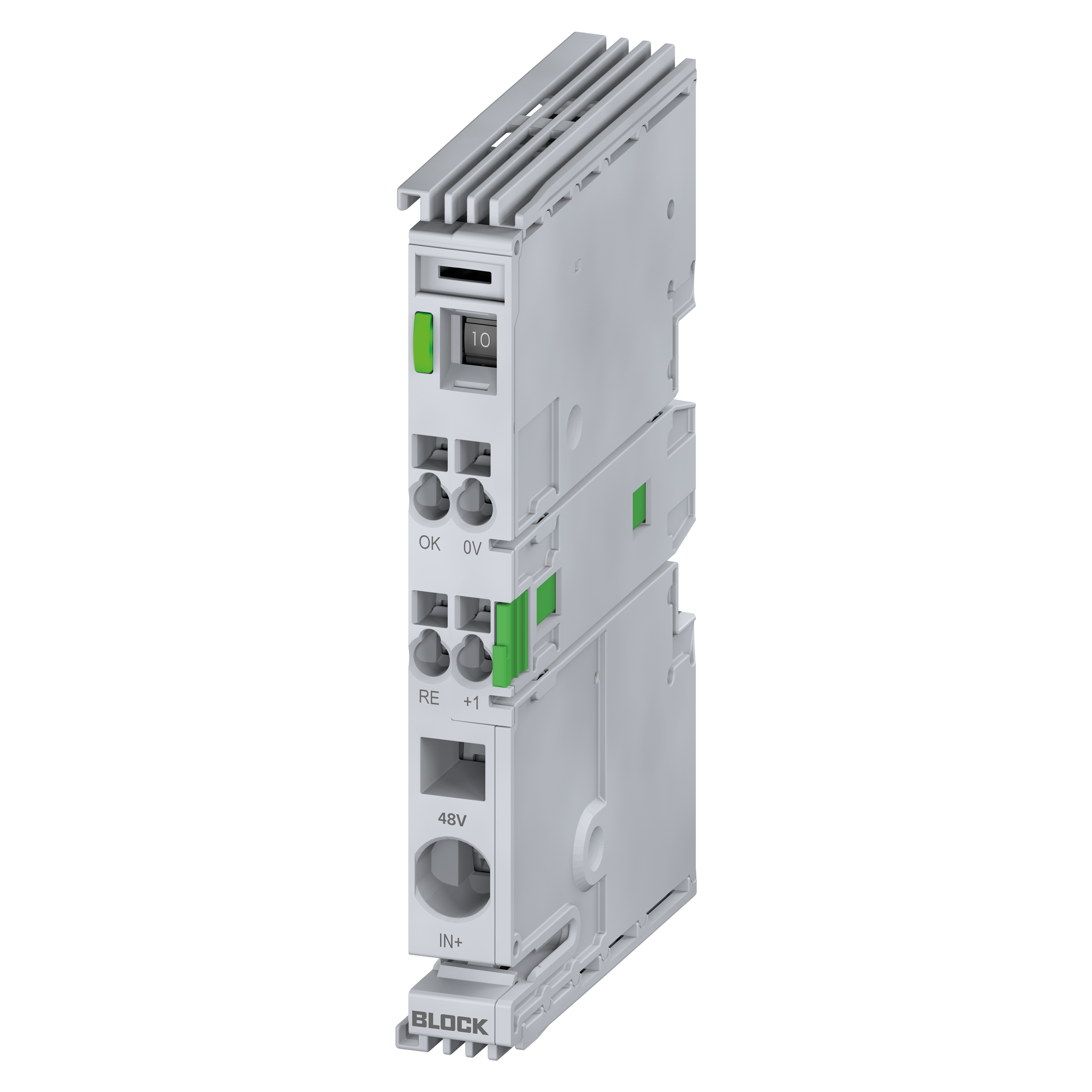

1-Channel circuit breaker thermomagnetic
EB-0748-100-0
Characteristics
Benefits
› Additional load outputs through output expanders mountable sidewise
› Automatic channel assignment
› Internal fuse adapted to the tripping current
| Product | 1-Channel circuit breaker thermomagnetic |
| Order number | EB-0748-100-0 |
| Series | EB-48 |
Input
| Rated input voltage | 48 Vdc |
| Input voltage range | 32 Vdc to 58 Vdc |
| Max. continuous current of the module | 10 A |
| Max. continuous current feed terminal (+) | 40 A |
| Switch-on threshold | 31.40 V |
Output
| Rated output voltage | 48 Vdc |
| Rated Output Current | 10 A |
| Rated Output Current Adjustable | 0.5,1,2,3,4,5,6,8,10 |
| Rated Output Current per Output Channel | 10 A |
| Number of Output Channels | 1 |
| Switch-off threshold | 31 V |
| Max. feedback resistance | 58 Vdc |
| Power losses in stand-by mode | 0.30 W |
| Parallel connection of outputs | Nicht erlaubt |
| Series connection of outputs | Nicht erlaubt |
| Release Characteristics | Thermomagnetic characteristic |
Signaling
| Signal output | Output status, short-circuit proof, DC 24 V, max. 25 mA, high = channel on, low = channel off, error |
| Status display | Green, yellow, red LED |
Environment
| Ambient temperature | -25 °C to 70 °C / -13 °F to 158 °F |
| Storage temperature | -25 °C to 85 °C / -13 °F to 185 °F |
| Humidity without condensation | 5 % to 96 % |
| Cooling type | natürliche Konvektion |
| Required minimum distance (side) | 0 mm |
| Required minimum distance (top/bottom) | 30 mm |
Protection and Safety
| Degree of pollution | 2 |
Size and Weight
| Width | 12 mm / 0.47 in |
| Height | 99 mm / 3.9 in |
| Depth | 60 mm / 2.36 in |
| Depth incl. DIN TH35 | 64.5 mm / 2.54 in |
| Weight | 0.04 kg / 0.088 lbs |
