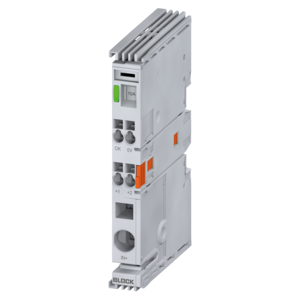

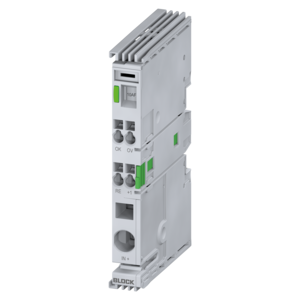

Primary switched mode power supply, single-phase
PVSE 230/24-10
Characteristics
Benefits
› Stabilised and adjustable output voltage
› Up to 200 % Real Power Boost for 4 seconds
› Top Boost to trip conventional circuit breakers
› DC OK signalling
› Stand-by-input
› Parallel connection option
› Service-friendly spring-loaded connector system
| Product | Primary switched mode power supply, single-phase |
| Order number | PVSE 230/24-10 |
| Series | PVSE 230 |
Input
| Rated input voltage | 110 Vac to 240 Vac |
| Input voltage range | 85 Vac to 264 Vac |
| Input voltage range | 120 Vdc to 373 Vdc |
| Rated input current (rated load) (100Vac) | 2.50 A |
| Rated input current (rated load) (230Vac) | 1.20 A |
| Internal input fuse | 6.3 AT |
| Rated frequency range AC | 44 Hz to 66 Hz |
| Rated frequency range DC | 0 Hz |
| Inrush current limitation NTC < | 8 A |
| Recommended preliminary fuse | 10A, 16A, B/C-Char. |
| Mains failure bridging (rated load) (100Vac) | 24.0 ms |
| Mains failure bridging (rated load) (230Vac) | 24.0 ms |
Output
| Power | 240 W |
| Rated output voltage | 24 Vdc |
| Rated Output Current | 10 A |
| Output voltage range | 22 Vdc to 29.5 Vdc |
| Output Current Limitation (Constant Current) typ. | 11 A |
| Ripple (rated load) typ. | 70 mVss |
| Power boost | 20 A / 4 s (15 A / 8 s) |
| Top boost | 60 A / 25 ms |
| Power factor | 0.95 |
| Max. power loss | 40.3 W |
| Max. feedback resistance | 35 Vdc |
| Verlustleistung Leerlauf (230Vac) | 3.50 W |
| Verlustleistung Nennlast (230Vac) | 19.70 W |
| Parallel connection possible | Yes, for increased power with redundancy module |
| Series connection possible | Yes |
Signaling
| Signal output | Relay contact |
| Status display | Green, red LED |
Environment
| Ambient temperature | -25 °C to 70 °C / -13 °F to 158 °F |
| Storage temperature | -25 °C to 85 °C / -13 °F to 185 °F |
| Humidity without condensation | 30 % to 85 % |
| Cooling type | natural convection |
Protection and Safety
| Degree of pollution | 2 |
Size and Weight
| Width | 57 mm / 2.24 in |
| Height | 127 mm / 5 in |
| Depth | 179.5 mm / 7.07 in |
| Weight | 1.3 kg / 2.866 lbs |
| cULus | UL 508 - Listed |
| cURus | UL 60950-1 - Recognized |
