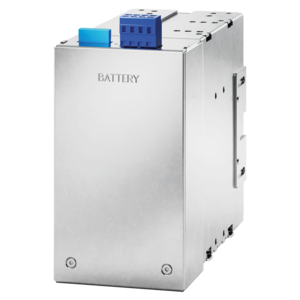

Charge and control unit
PVUA 24/24-10
Characteristics
Benefits
› Electronic overcurrent and short-circuit protection
› Active current limiting in the event of an error
› Automatic detection of connected battery module
› Reliable early warning signal when battery life expectancy is declining
› Extended life expectancy through temperature controlled battery management
› Service-friendly spring-loaded connector system
› Isolated signal contact
› Reverse polarity protection
› Exhaustive discharge protection for batteries
› Interface to visualise and adjust relevant data
› Current and voltage monitoring
› Active signal outputs for function monitoring
› RS-232 interface
› Reliable supply of industrial PC's
| Product | Charge and control unit |
| Order number | PVUA 24/24-10 |
| Series | BATTERY UPS |
Input
| Rated input voltage | 24 Vdc |
| Input voltage range | 18 Vdc to 29 Vdc |
Output
| Rated output voltage | 24 Vdc |
| Rated Output Current | 10 A |
| Output voltage range | 24 Vdc |
| Max. feedback resistance | 35 Vdc |
| Parallel connection possible | No |
| Series connection possible | No |
Signaling
| Signal output | Relay contact |
| Status display | Green, yellow, red LED |
Environment
| Ambient temperature | -10 °C to 60 °C / 14 °F to 140 °F |
| Storage temperature | -25 °C to 85 °C / -13 °F to 185 °F |
| Humidity without condensation | 5 % to 96 % |
| Cooling type | natural convection |
Size and Weight
| Width | 40 mm / 1.57 in |
| Height | 127 mm / 5 in |
| Depth | 163.5 mm / 6.44 in |
| Weight | 0.9 kg / 1.984 lbs |
| cURus | UL 60950 - Recognized |
| cULus | UL 508 - Listed |
