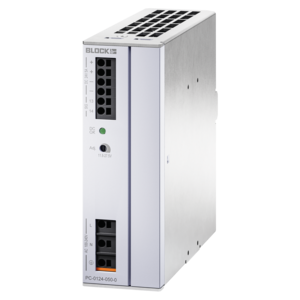

Primary switched mode power supply, single-phase
PSR 230/24-5 - Discontinued items – not for new applications
| Product | Primary switched mode power supply, single-phase |
| Order number | PSR 230/24-5 |
| Series | PSR 230 |
Input
| Rated input voltage | 100 Vac to 240 Vac |
| Input voltage range | 90 Vac to 264 Vac |
| Rated input current (rated load) (230Vac) | 1.20 A |
| Internal input fuse | 4 AT |
| Rated frequency range AC | 50 Hz to 60 Hz |
| Inrush current limitation NTC < | 30 A |
| Recommended preliminary fuse | 10A, B/C-Char. |
| Mains failure bridging (rated load) (230Vac) | 20.0 ms |
Output
| Power | 120 W |
| Rated output voltage | 24 Vdc |
| Rated Output Current | 5 A |
| Output voltage range | 22 Vdc to 28.8 Vdc |
| Output Current Limitation (Constant Current) typ. | 5.5 A |
| Ripple (rated load) typ. | 100 mVss |
| Power factor | 0.59 |
| Max. feedback resistance | 30 Vdc |
| Überspannungsschutz des Ausgangs | 40.0 Vdc |
| Parallel connection possible | Yes |
| Series connection possible | Yes |
Signaling
| Status display | Green LED |
Environment
| Ambient temperature | -10 °C to 70 °C / 14 °F to 158 °F |
| Storage temperature | -25 °C to 85 °C / -13 °F to 185 °F |
| Humidity without condensation | 30 % to 85 % |
| Cooling type | natural convection |
| Required minimum distance (side) | 15 mm |
| Required minimum distance (top/bottom) | 70 mm |
Protection and Safety
| Degree of pollution | 2 |
| Protection class according to EN 61140 | I |
Size and Weight
| Width | 71 mm / 2.8 in |
| Height | 112 mm / 4.41 in |
| Depth | 140 mm / 5.51 in |
| Weight | 0.89 kg / 1.962 lbs |
| cULus | UL 508 - Listed |
| cURus | UL 60950-1 - Recognized |
PC-0124-050-0
Primary switched mode power supply, single-phase
| Rated input voltage | Rated output voltage | Rated Output Current |
|---|---|---|
100 Vac to 240 Vac |
24 Vdc |
5 A |
