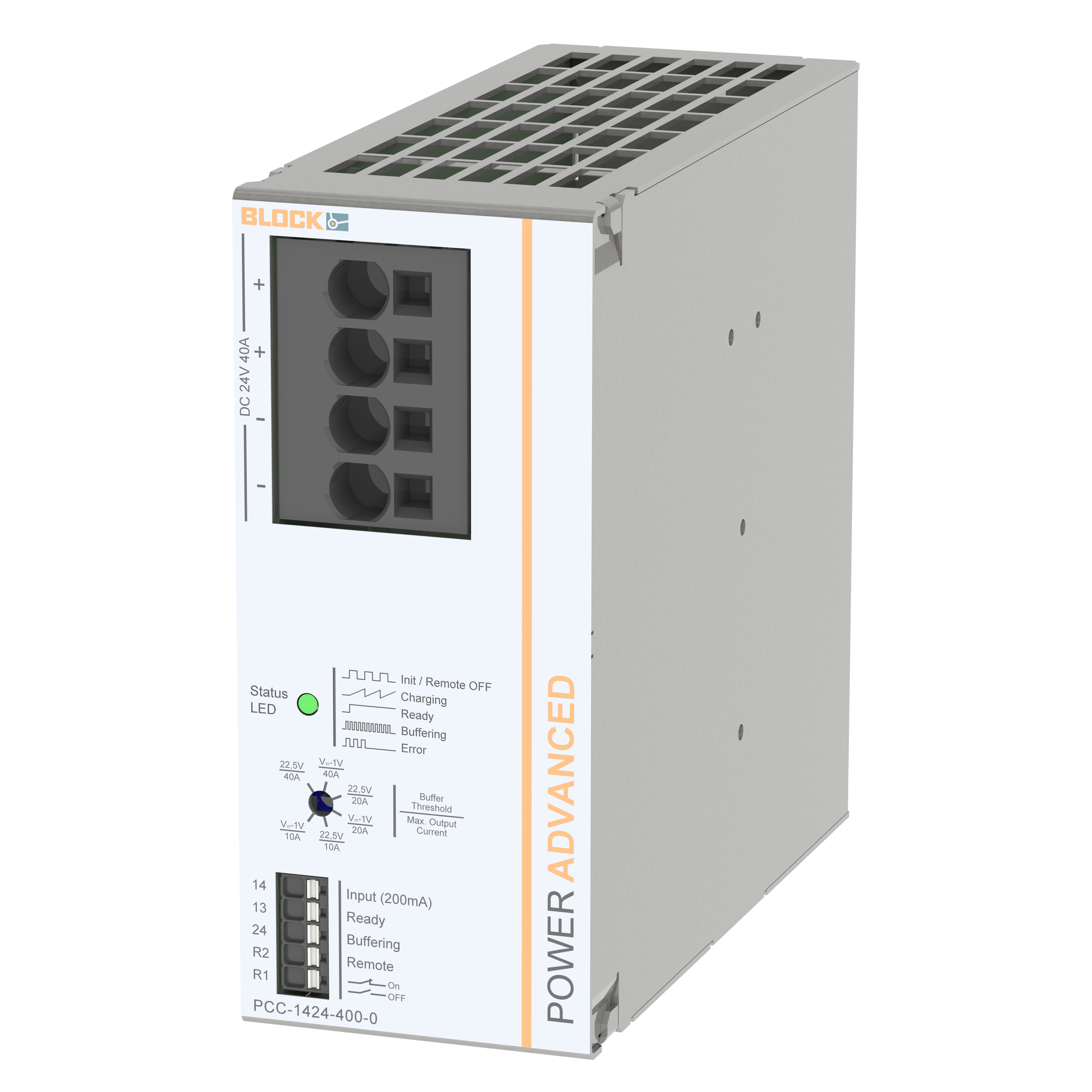

Puffermodul
PCC-1424-400-0
Characteristics
Benefits
› Maintenance-free capacitor-based energy storage device
› Reverse polarity protection
› Adjustable switch-on threshold 22.5 V or Vin -1V
› LED signaling
› 2 potential-free signal contacts
› For bridging failures in the range of seconds
› Can be connected in parallel
› Mounting rail attachment
| Product | Puffermodul |
| Order number | PCC-1424-400-0 |
| Series | BUFFER MODULES |
Input
| Rated input voltage | 24 Vdc |
| Input voltage range | 19 Vdc to 30 Vdc |
Output
| Rated output voltage | 24 Vdc |
| Rated Output Current | 40 A |
| Output voltage range | 24 Vdc |
| Max. feedback resistance | 35 Vdc |
| Parallel connection possible | Ja |
| Series connection possible | Nein |
Signaling
| Signal output | Relay contact |
| Status display | Green LED |
| Communication | - |
Environment
| Ambient temperature | -25 °C to 70 °C / -13 °F to 158 °F |
| Storage temperature | -25 °C to 85 °C / -13 °F to 185 °F |
| Humidity without condensation | 5 % to 96 % |
| Cooling type | natural convection |
Size and Weight
| Width | 58 mm / 2.28 in |
| Height | 127 mm / 5 in |
| Depth | 141.5 mm / 5.57 in |
| Weight | 1.1 kg / 2.425 lbs |
