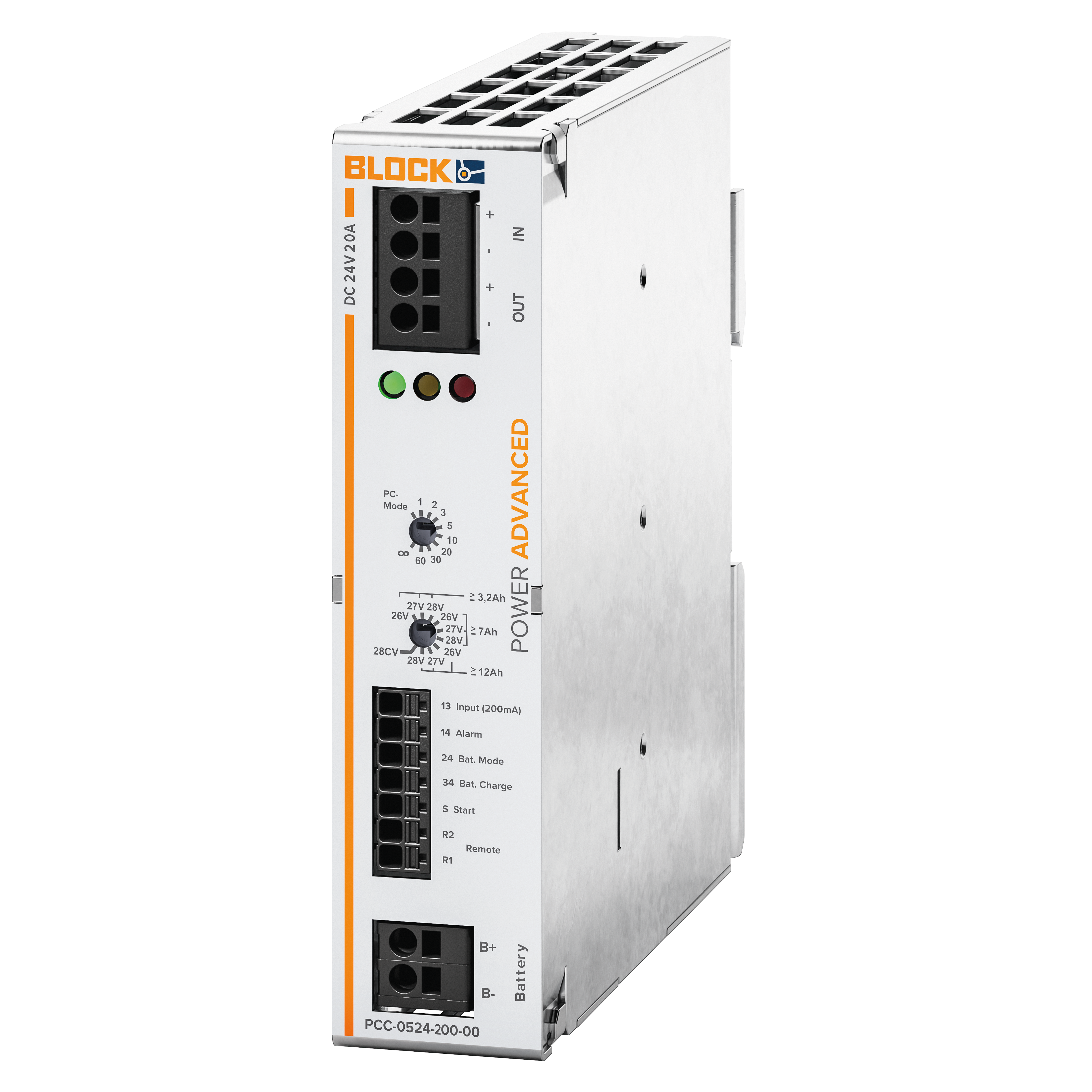

Charge and control unit
PCC-0524-200-00
Characteristics
Benefits
› Ultra-compact design
› Parameter setting via front rotary switches
› Electronic overcurrent and short-circuit protection
› Active current limiting in case of fault
› Adjustable charging current and final charging voltage
› Potential-free signaling contact
› Reverse polarity protection
› Deep discharge protection for batteries
› Current and voltage monitoring
› Active signal outputs for function monitoring
| Product | Charge and control unit |
| Order number | PCC-0524-200-00 |
| Series | BATTERY UPS |
Input
| Rated input voltage | 24 Vdc |
| Input voltage range | 18 Vdc to 30 Vdc |
Output
| Rated output voltage | 24 Vdc |
| Rated Output Current | 20 A |
| Output voltage range | 18 Vdc to 30 Vdc |
| Max. feedback resistance | 35 Vdc |
| Parallel connection possible | Yes, max. 3 batteries to extend the buffer time |
Signaling
| Signal output | Relay contact |
| Status display | Green, yellow, red LED |
| Communication | - |
Environment
| Ambient temperature | -25 °C to 70 °C / -13 °F to 158 °F |
| Storage temperature | -25 °C to 85 °C / -13 °F to 185 °F |
| Humidity without condensation | 5 % to 96 % |
| Cooling type | Natural convection |
| Required minimum distance (side) | 0 mm |
| Required minimum distance (top/bottom) | 40 mm |
Size and Weight
| Width | 32.5 mm / 1.28 in |
| Height | 127 mm / 5 in |
| Depth | 126 mm / 4.96 in |
| Weight | 0.582 kg / 1.283 lbs |
| cULus | UL 61010 - Listed |
