Uninterruptible power supplies

Uninterruptible power supplies protect 24 V supply voltages from unexpected power failures. Capacitive UPS solutions from BLOCK’s Power Compact series provide 24 V supply voltage up to the minute range. Featuring ultracapacitors they are designed for long lifetimes. For longer buffer periods, we also offer space-saving Power Compact combination modules as uninterruptible power supplies with battery modules. The intelligent battery management and short charging times ensure maximum system availability.

Overview:

◼︎ Secure supply of industrial PCs
◼︎ Comprehensive function monitoring
◼︎  High power density and efficiency factor
◼︎ ePlan

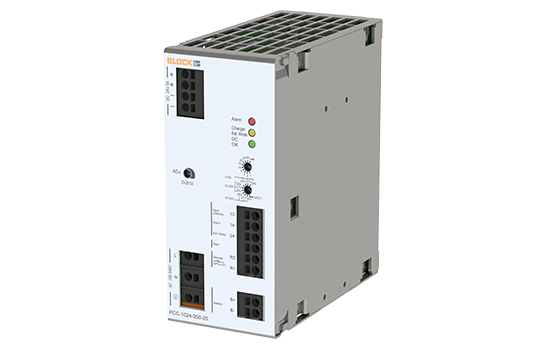

Switched mode power supply + charge and control unit

The uninterruptible power supply PowerCompact Combi features an economic DC 24 V/5 A switched mode power supply with basic requirements, tailored for the supply of industrial PCs and a charge and control unit for optimal battery management. The Combi UPS manages and monitors the battery module and provides an early warning signal for low remaining battery life.

•   Reliable early warning signal for battery exchange
•   Fast tripping of standard circuit breakers
•   Extensive function monitoring
•   Extended battery life through optimal charge management
•   Push-in connection technology
•   Reliable supply of industrial PCS
•   Optional with Power Boost

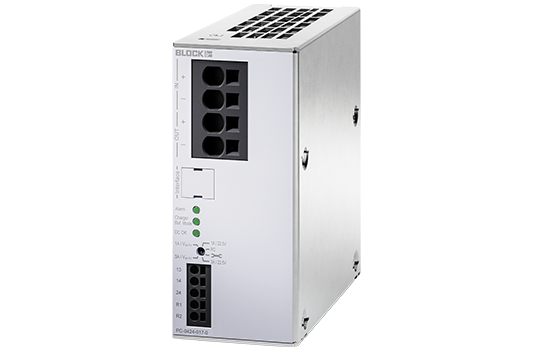

Capacitive UPS

The new capacitive UPS is based on ultra-capacitors and provides a long service life, even at high ambient temperatures. It also therefore offers higher safety levels in 24 V mains. During a power failure, the basic module provides uninterrupted currents of up to 20 A. Thanks to fl exible expansion options, the output current can be increased to 40 A by connecting additional capacity modules and the buffer time can be scaled as required. All relevant data can be retrieved at any time from a potential-separated USB interface.

•   Up to 40 A output current with capacity module
•   Expandable with up to three capacity modules
•   Long service life of the capacitors
•   3 A charge current for short charging times
•   High power density
•   Long buffer times
•   Two isolated signal contacts

•   Isolated USB interface
•   Decoupled output

•   Constant output voltage in buffer mode

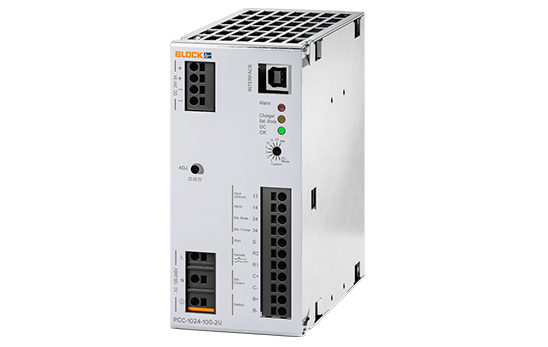

Charge and control unit

The new charge and control unit offers the highest system availability through intelligent battery management and short charging times, even with large battery capacities. In the event of a power failure, they can be used in 12 V, 24 V and 48 V mains up to 40 A without power interruption. As the connected batteries are permanently monitored, an early warning is issued in the event of low remaining service life. In addition to parameterization, the powerful confi guration software UPS control also ensures an overview of the operating conditions of the UPS at all times.

•   Up to 40 A output current
•   5 A charging current for short charging times
•   Start from battery
•   Three isolated signal contacts
•   Isolated USB interface
•   Decoupled Output
•   Reliable early warning signal for battery exchange
•   Maximum reliability due to "battery control" technology
•   Reliable supply of industrial PCS


Product search for Uninterruptible power supplies

24 Versions of 14 products
Or do you have different requirements? We can help you!
Image of %s BLOCK Item: PC Combi UPS
PC Combi UPS
Uninterruptible power supply
PRI 100 – 240 Vac, SEC 24 Vdc, Rated output current: 5 A, Combined power supply with charging and controlling unit
Display options
Version Input rated voltage Output rated voltage Output rated current
PC-1024-050-0 100 - 240 Vac 24 Vdc 5.00 A
Or do you have different requirements? We can help you!
Image of %s BLOCK Item: PC-0424-017-0
PC-0424-017-0
Capacitive UPS
Expandable by capacity modules, PRI 24 Vdc, SEC 24 Vdc, 20 A
Display options
Version Input rated voltage Output rated current
PC-0424-017-0 24 Vdc 20 A
Or do you have different requirements? We can help you!
Image of %s BLOCK Item: PC-0424-115-0
PC-0424-115-0
Capacity module
Extension of the buffer time of PC-0424-017-0, Communication through system bus cable, Rated voltage 24 Vdc, Charging current max. 3 A
Display options
Version
PC-0424-115-0
Or do you have different requirements? We can help you!
Image of %s BLOCK Item: PC-0524-400-0
PC-0524-400-0
Charge and control unit
PRI 24 Vdc, SEC 24 Vdc, Charging current max. 5 A
Display options
Version Input rated voltage Output rated current
PC-0524-400-0 24 Vdc 40 A
Or do you have different requirements? We can help you!
Image of %s BLOCK Item: PVUA
PVUA
Charge- and control unit
PRI 24 Vdc, SEC 24 Vdc, 10 – 20 A, RS-232 interface
Display options
Version Input rated voltage Output rated current
PVUA 24/24-10 24 Vdc 10.00 A
PVUA 24/24-20 24 Vdc 20.00 A
Or do you have different requirements? We can help you!
Image of %s BLOCK Item: PVUC
PVUC
Buffer module
PRI 24 Vdc, SEC 24 Vdc, 10 – 20 A, Configurable switch-in threshold
Display options
Version Input rated voltage Output rated current
PVUC 24/24-10 24 Vdc 10.00 A
PVUC 24/24-20 24 Vdc 20.00 A
Or do you have different requirements? We can help you!
Image of %s BLOCK Item: PVAF
PVAF
Battery module
24 Vdc, max. 5.00 – 40.00 A, 0.8 – 12 Ah, Service-friendly spring-loaded connector system
Display options
Version Input rated voltage Output rated current Rated capacity
PVAF 24/0,8Ah 24 Vdc max. 5.00 A 0.8 Ah
PVAF 24/1,2Ah 24 Vdc max. 7.50 A 1.2 Ah
PVAF 24/7Ah 24 Vdc max. 40 A 7.0 Ah
PVAF 24/12Ah 24 Vdc max. 40 A 12.0 Ah
Or do you have different requirements? We can help you!
Image of %s BLOCK Item: PVA
PVA
Battery module
24 Vdc, max. 20.00 / 40.00 A, 3.2 – 12 Ah, Service-friendly spring-loaded connector system
Display options
Version Input rated voltage Output rated current Rated capacity
PVA 24/3,2Ah 24 Vdc max. 20.00 A 3.2 Ah
PVA 24/7Ah 24 Vdc max. 40.00 A 7.0 Ah
PVA 24/12Ah 24 Vdc max. 40.00 A 12.0 Ah
Or do you have different requirements? We can help you!
Image of %s BLOCK Item: PBAT
PBAT
Battery module
24 Vdc, 20/40 A, 2.5 / 13 Ah, Service-friendly spring-loaded connector system
Display options
Version Input rated voltage Output rated current Rated capacity
PBAT-1224-025-0 24 Vdc 20 A 2.5 Ah
PBAT-1224-130-0 24 Vdc 40 A 13.0 Ah
Or do you have different requirements? We can help you!
Image of %s BLOCK Item: PC-KOK1
PC-KOK1
Communication cable
150 cm, For all PowerCompact Models that have integrated interface, Female plug for RS232 9-pole Sub-D,
Display options
Version
PC-KOK1
