PVAF 24/12Ah

Battery module PVAF

Version PVAF 24/12Ah
Input rated voltage 24 Vdc Output rated current max. 40 A Rated capacity 12 Ah
Version Input rated voltage Output rated current Rated capacity
PVAF 24/0,8Ah 24 Vdc max. 5.00 A 0.8 Ah
PVAF 24/1,2Ah 24 Vdc max. 7.50 A 1.2 Ah
PVAF 24/7Ah 24 Vdc max. 40 A 7 Ah
PVAF 24/12Ah 24 Vdc max. 40 A 12 Ah
PVAF 24/3,2Ah Discontinued line - not for new designs 24 Vdc max. 20.00 A 3.2 Ah

Technical Data for PVAF 24/12Ah

Input
Input rated voltage 24 Vdc
Rated capacity 12 Ah
Output
Output rated voltage 24 Vdc
Output rated current max. 40 A
Internal fuse 2x25 A (slow-blow)
Parallel connection Yes
Environment
Ambient temperature 14 °F to +104 °F
Storage temperature -4 °F to + 104 °F
Service life 5 years at 68 °F
Latest commissioning (only accumulators) 6 months at 86 - 104 °F
Safety and protection
Protection index IP 20
Terminal and mounting
Terminals input / output (spring clamp terminal, pluggable) max. 10 mm²
Terminals temperature measurement, (spring clamp terminal, pluggable) max. 2.5 mm²
Fixing method Straps at the case
Measures and weights
Width 9.06 inch
Height 5.71 inch
Depth 6.93 inch
Weight 22.49 lbs

Information for PVAF series

General Data
  • Input rated voltage 24 Vdc
  • Capacity 0.8 to 12 Ah
  • Ambient temperature 14 °F / -10 °C to +104 °F / +40 °C
  • Protection index IP 20
  • Output rated voltage 24 Vdc
Benefits
  • Service-friendly spring-loaded connector system
  • Extended life expectancy through temperature controlled battery management
  • Reliable early warning signal when battery life expectancy is declining
  • Automatic detection of battery modules at UPS control unit

Our recommendations for you

BLOCK product: PC-1024-050-0

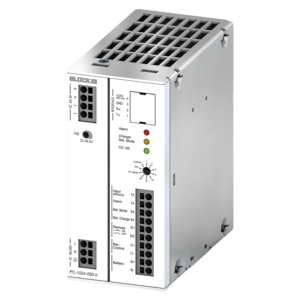

PC-1024-050-0
Uninterruptible power supply
PRI 100 – 240 Vac, SEC 24 Vdc, Rated output current 5 A, Combined power supply with charging and controlling unit
View accessory
BLOCK product: PVUA 24/24-20

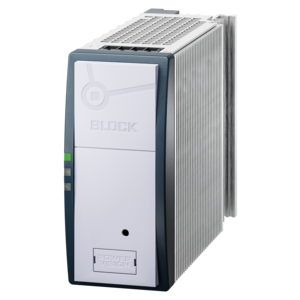

PVUA 24/24-20
