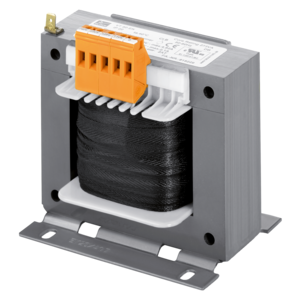

Autotransformer
VT 100-EN
Characteristics
General data
The autotransformers of the VT-EN series are used for voltage adjustment without the need for galvanic isolation. The transformers feature lower weight and a smaller form factor compared to other transformer types with separate windings and can be easily mounted using robust metal base brackets with elongated holes.
Benefits
› Autotransformer according to EN (IEC) 61558-2-13
› Very high efficiency
› Excellent moisture protection and low noise emission thanks to BLOCK IMPEX vacuum impregnation
› Touch-protected connection terminals according to UVV BGV A3
| Product (Headline_Detailseite) | Autotransformer |
| Order number (PF_Teilenummer) | VT 100-EN |
| Series (PF_Baureihe) | VT-EN |
| Power (PF_Leistung_VA_W) | 1,000 VA |
| Input (PF_Trafo_Eingang) | 110 V / 125 V / 230 V / 240 V |
| Output (PF_Trafo_Ausgang) |
110 V • 9.1 Aac oder 125 V • 8 Aac oder 230 V • 4.35 Aac oder 240 V • 4.17 Aac |
| Phases (PF_Phasen) | 1 |
| Frequency range (PF_Frequenzbereich) | 50 Hz to 60 Hz |
| Short-Circuit Losses (PF_Kurzschlussverluste_W) | 26.4 W |
| No-Load Losses (PF_Leerlaufverluste_W) | 13.7 W |
| EN Insulation class (PF_EN_Isolierstoffklasse) | B (130°C) |
| UL Insulation class (PF_UL_Isolierstoffklasse) | class 130 |
| Duty Cycle (PF_Einschaltdauer) | 100 % |
| Wire material (PF_Leitermaterial) | Copper |
| Efficiency (PF_Wirkungsgrad) | 96.1 % |
General
| Short circuit proof (PF_Kurzschlussfestigkeit_KS_Festigkeit) | not short-circuit proof |
| Switching group (PF_Schaltgruppe) | Ia0 |
| Cooling type (PF_Kuehlungsart) | AN |
Environment
| Ambient temperature (PF_Umgebungstemperatur) | -20 °C to 40 °C / -4 °F to 104 °F |
| Max. installation height (PF_max_Aufstellhoehe_m) | 2,000 m / 6,562 ft |
Protection and Safety
| Protection type (PF_Schutzart) | IP00 |
| Protection class (prepared) (PF_Schutzklasse) | I |
| Degree of contamination (PF_Verschmutzungsgrad) | 2 |
Electrical Connections
| Input terminal (PF_Anschluss_Eingang) | Screw terminal |
| Output terminal (PF_Anschluss_Ausgang) | Screw terminal |
| Terminal PE (PF_Anschluss_PE) | Flat plug connection |
Size and Weight
| Width (PF_Breite_mm) | 104 mm / 4.09 in |
| Height (PF_Hoehe_mm) | 140 mm / 5.51 in |
| Depth (PF_Tiefe_mm) | 150 mm / 5.91 in |
| Weight (PF_Gewicht_kg) | 7.8 kg / 17.196 lbs |
| Low Voltage Directive | EN 61558-2-13 |
| Approval cURus - Recognized | UL 5085-1/-2; CSA 22.2 |
