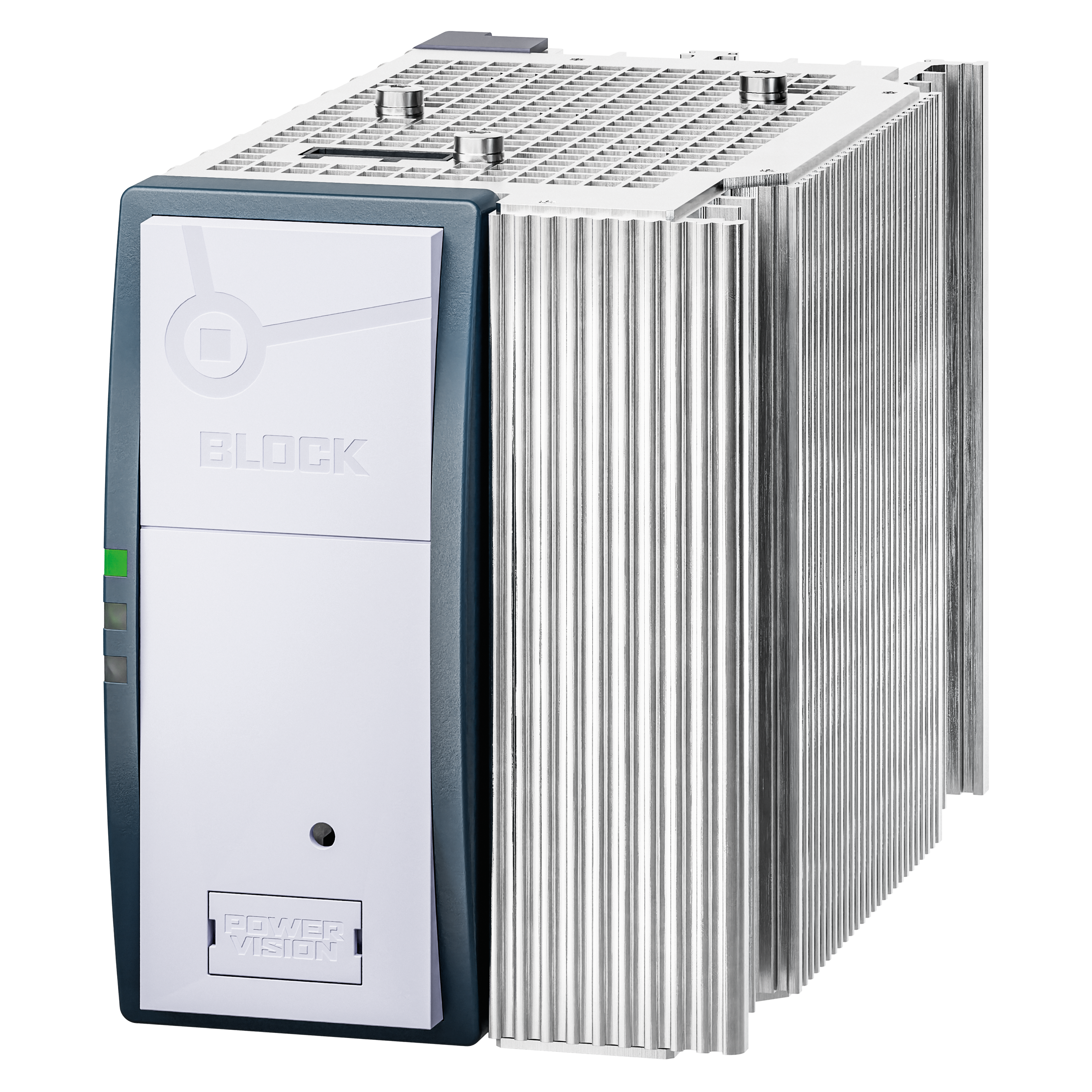

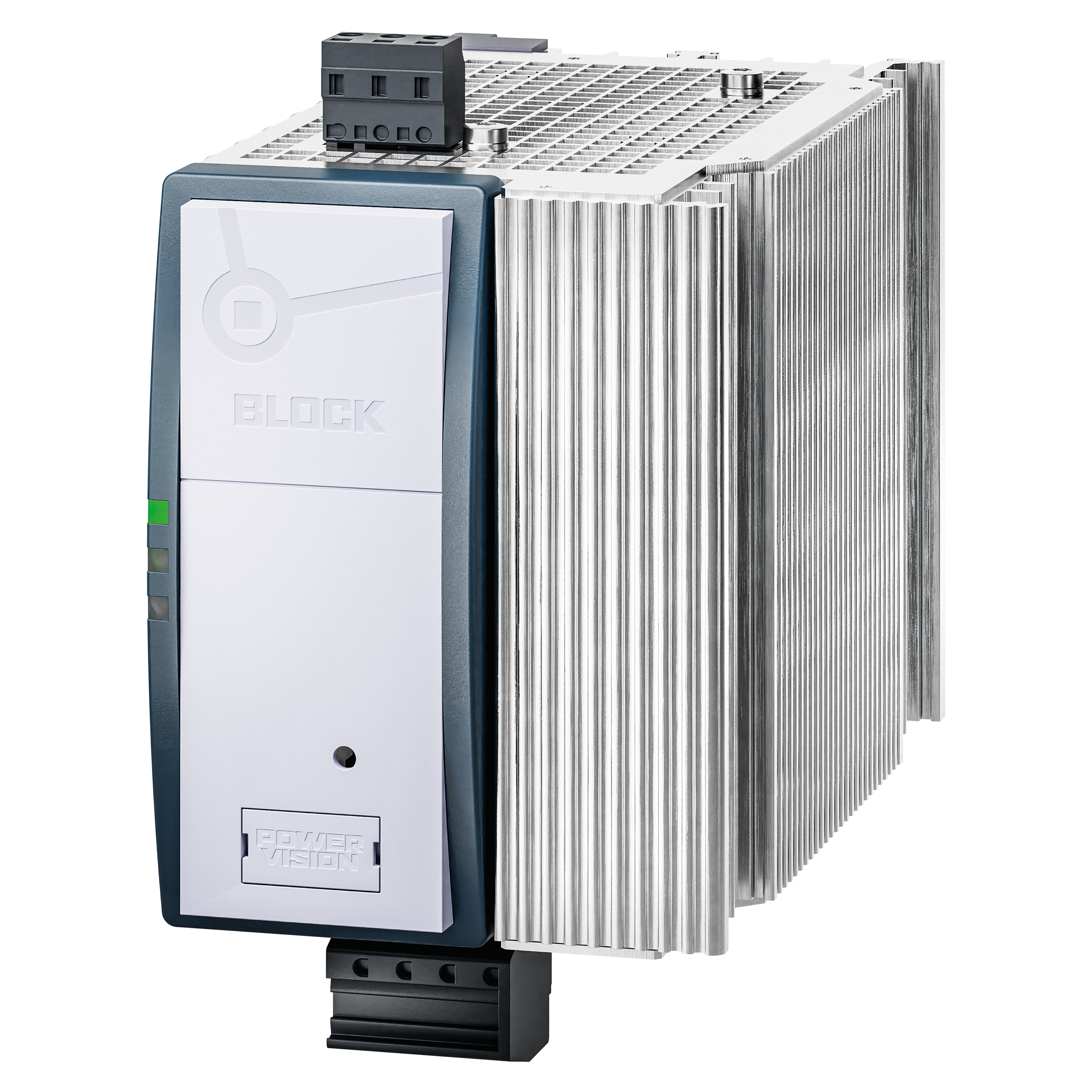

Primary switched mode power supply, single-phase

PVSE 230/30-15 - Discontinued items - no longer available

Characteristics

Benefits

 Stabilised and adjustable output voltage

 Up to 200 % Real Power Boost for 4 seconds

 Top Boost to trip conventional circuit breakers

 DC OK signalling

 Stand-by-input

 Parallel connection option

 Service-friendly spring-loaded connector system

Product Primary switched mode power supply, single-phase
Order number PVSE 230/30-15
Input
Rated input voltage 110 Vac to 240 Vac
Input voltage range 85 Vac to 264 Vac
Input voltage range 120 Vdc to 373 Vdc
Rated input current (rated load) (100Vac) 5.70 A
Rated input current (rated load) (230Vac) 2.30 A
Internal input fuse 10 AT
Rated frequency range AC 44 Hz to 66 Hz
Rated frequency range DC 0 Hz
Inrush current limitation NTC < 8 A
Recommended preliminary fuse 10A, 16A, B/C-Char.
Mains failure bridging (rated load) (100Vac) 20.0 ms
Mains failure bridging (rated load) (230Vac) 25.0 ms
Output
Power 450 W
Rated output voltage 30 Vdc
Rated Output Current 15 A
Output voltage range 27 Vdc to 43 Vdc
Output Current Limitation (Constant Current) typ. 16.5 A
Ripple (rated load) typ. 70 mVss
Power boost 15 A / 4 s (12,5 A / 8 s)
Top boost 70 A / 25 ms
Power factor 0.95
Max. power loss 61.5 W
Max. feedback resistance 63 Vdc
Verlustleistung Leerlauf (230Vac) 4.80 W
Verlustleistung Nennlast (230Vac) 50.20 W
Efficiency 91 %
Parallel connection possible Yes, for increased power
Series connection possible Yes
Signaling
Signal output Relay contact
Status display Green, red LED
Enviroment
Ambient temperature -25 °C to 70 °C / -13 °F to 158 °F
Storage Temperature -25 °C to 85 °C / -13 °F to 185 °F
Humidity without condensation 30 % to 85 %
Cooling type natural convection
Protection and Safety
Degree of pollution 2
Size and Weight
Width 97 mm / 3.82 in
Height 127 mm / 5 in
Depth 187.5 mm / 7.38 in
Weight 2.48 kg / 5.47 lbs
