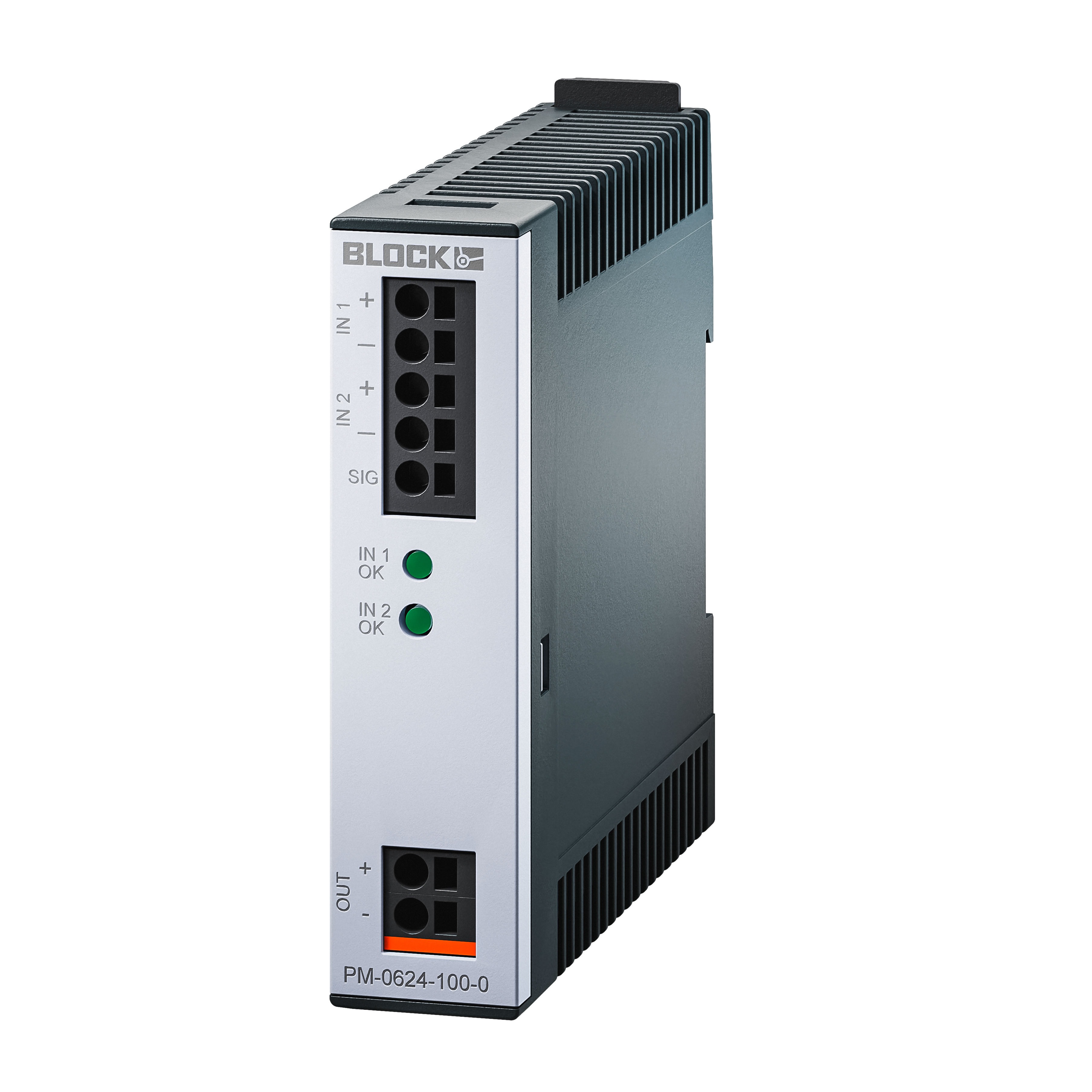

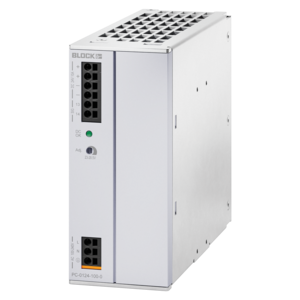

Redundancy module
PM-0624-100-0
Characteristics
Benefits
› High efficiency
› Error message via relay contact and LEDs
› Safe parallel operation to increase power
› Fully compatible with Top and Power Boost for your power supplies
› Active operation for minimal power loss even in the event of a short-circuit on the secondary side
› Decoupling with diodes
› 3 years warranty
| Product (Headline_Detailseite) | Redundancy module |
| Order number (PF_Teilenummer) | PM-0624-100-0 |
| Series (PF_Baureihe) | PM RE |
Input
| Rated input voltage (EWS_Eingangsnennspannung_DC) | 24 Vdc |
| Input voltage range (EWS_Eingangsspannungsbereich_DC) | 10 Vdc to 36 Vdc |
| Rated input current (EWS_Eingangsnennstrom) | 10 A |
Output
| Rated output voltage (EWS_Ausgangsnennspannung) | 24 Vdc |
| Rated Output Current (EWS_Ausgangsnennstrom) | 10 A |
| Output voltage range (EWS_Ausgangsspannungsbereich) | 10 Vdc to 36 Vdc |
| Power boost (PIM_alt_powerboost) | 120 A, 25 ms / 40 A, 4 s / 30 A, 16 s |
| Max. voltage drop between input and output (EWS_Max_Spannungsabfall_eing_ausg) | 750 mV |
| Max. power loss (EWS_Verlustleistung) | 7.5 W |
| Max. feedback resistance (EWS_Rueckspeisefestigkeit_max) | 37 Vdc |
| Parallel connection possible (PIM_alt_parallelschaltung) | Ja |
Signaling
| Signal output (EWS_Signalausgang) | Relay contact |
| Status display (EWS_Statusanzeige) | 2 x Green LED |
Environment
| Climate class according to EN 60721 (EWS_Klimaklasse) | 3K3 |
| Ambient temperature (PF_Umgebungstemperatur) | -40 °C to 70 °C / -40 °F to 158 °F |
| Storage temperature (PF_Lagertemperatur) | -40 °C to 85 °C / -40 °F to 185 °F |
| Humidity without condensation (EWS_Luftfeuchtigkeit) | 5 % to 96 % |
| Cooling type (PF_Kuehlungsart) | natural convection |
| Required minimum distance (side) (EWS_Erforderlicher_Mindestabstand) | 0 mm |
| Required minimum distance (top/bottom) (EWS_Erforderlicher_Mindestabstand_oben_unten) | 30 mm |
Protection and Safety
| Degree of pollution (EWS_Verschmutzungsgrad) | 2 |
| Protection class according to EN 61140 (EWS_Schutzklasse) | III, without PE connection |
| Safety extra low voltage (SELV/PELV) (EWS_Schutzkleinspannung_SELV_PELV) | EN 60950 (SELV), EN 60204 (PELV) |
Size and Weight
| Width (PF_Breite_mm) | 22 mm / 0.87 in |
| Height (PF_Hoehe_mm) | 90 mm / 3.54 in |
| Depth (PF_Tiefe_mm) | 94 mm / 3.7 in |
| Weight (PF_Gewicht_kg) | 0.12 kg / 0.265 lbs |
| cULus | UL 508 - Listed |
