Capacitive UPS power supply, single-phase
PEL-4124-013-01
Characteristics
General data

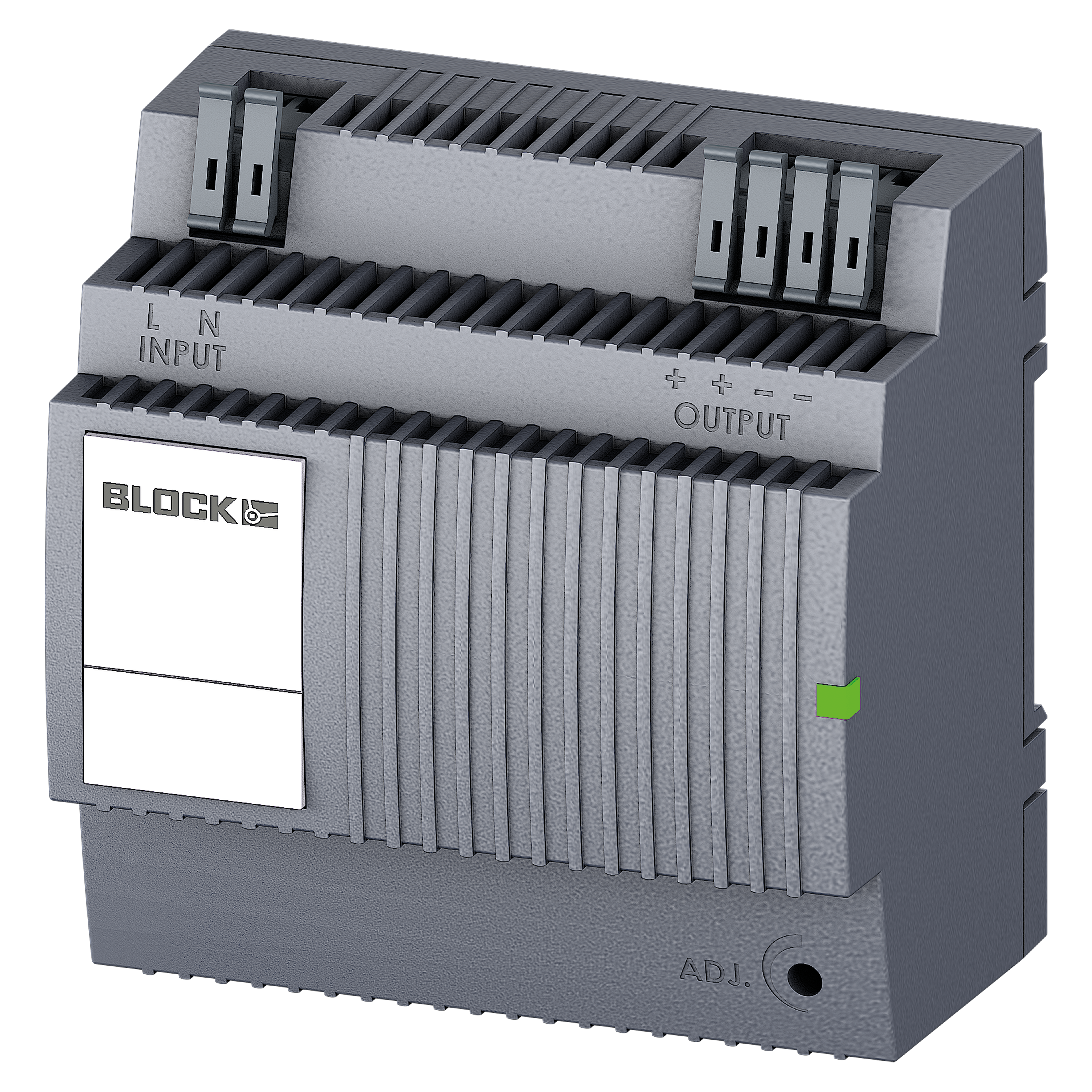

The reliable power supply PEL-4124-013-01 combines a power supply with buffering in one housing. The compact design, along with rail mounting, allows for quick and easy installation in control cabinets and distribution boxes. The DC OK status is indicated by an LED.
Benefits
› Power supply unit with integrated UPS functionality
› FRT capability >5s (1A)
› Complies with the requirements of directive VDE-AE-N 4105 and TOR generator
› DC OK signaling through LED
› Mounting on DIN rail
› 3 years warranty
| Product (Headline_Detailseite) | Capacitive UPS power supply, single-phase |
| Order number (PF_Teilenummer) | PEL-4124-013-01 |
| Series (PF_Baureihe) | PEL 230 |
Input
| Rated input voltage (EWS_Eingangsnennspannung_AC) | 200 Vac to 240 Vac |
| Input voltage range (EWS_Eingangsspannungsbereich_AC) | 180 Vac to 264 Vac |
| Rated input current (rated load) (230Vac) (EWS_Eingangsnennstrom_nennlast_230Vac) | 0.50 A |
| Internal input fuse (EWS_Eingangssicherung_intern) | 2 AT |
| Rated frequency range AC (EWS_Nennfrequenzbereich_AC) | 44 Hz to 66 Hz |
| Inrush current limitation NTC < (EWS_Einschaltstrombegrenzung) | 30 A |
| Recommended preliminary fuse (EWS_Empfohlene_Vorsicherung) | 6A, 10A, 16A, B/C-Char. |
Output
| Power (EWS_Leistung) | 32 W |
| Rated output voltage (EWS_Ausgangsnennspannung) | 24.5 Vdc |
| Rated Output Current (EWS_Ausgangsnennstrom) | 1.3 A |
| Output Current Limitation (Constant Current) typ. (EWS_Ausgangsstrombegrenzung_number) | 1.43 A |
| Max. power loss (EWS_Verlustleistung) | 7.3 W |
| Verlustleistung Leerlauf (230Vac) (EWS_Verlustleistung_Leerlauf_230Vac) | 2.60 W |
| Verlustleistung Nennlast (230Vac) (EWS_Verlustleistung_Nennlast_230Vac) | 7.00 W |
| Rated capacity (EWS_Nennkapazitaet_Ws) | 360 Ws |
| Parallel connection possible (PIM_alt_parallelschaltung) | Ja |
| Series connection possible (PIM_alt_serienschaltung) | Ja |
Signaling
| Status display (EWS_Statusanzeige) | Green LED |
Environment
| Ambient temperature (PF_Umgebungstemperatur) | -25 °C to 55 °C / -13 °F to 131 °F |
| Storage temperature (PF_Lagertemperatur) | -25 °C to 85 °C / -13 °F to 185 °F |
| Humidity without condensation (EWS_Luftfeuchtigkeit) | 5 % to 96 % |
| Cooling type (PF_Kuehlungsart) | natural convection |
| Required minimum distance (side) (EWS_Erforderlicher_Mindestabstand) | 0 mm |
| Required minimum distance (top/bottom) (EWS_Erforderlicher_Mindestabstand_oben_unten) | 50 mm |
Protection and Safety
| Degree of pollution (EWS_Verschmutzungsgrad) | 2 |
| Protection class according to EN 61140 (EWS_Schutzklasse) | II (in the closed control cabinet) |
Size and Weight
| Width (PF_Breite_mm) | 90 mm / 3.54 in |
| Height (PF_Hoehe_mm) | 89 mm / 3.5 in |
| Depth (PF_Tiefe_mm) | 59 mm / 2.32 in |
| Weight (PF_Gewicht_kg) | 0.3 kg / 0.661 lbs |
