Primary switched mode power supply, single-phase

PEL-0124-013-0 - Discontinued items - no longer available

Characteristics

Benefits

 Stabilised and adjustable output voltage

 DC OK signalling via LEDs

 Parallel connection option

 Push-in terminals

 Panel installation on mounting rails

 3 years warranty

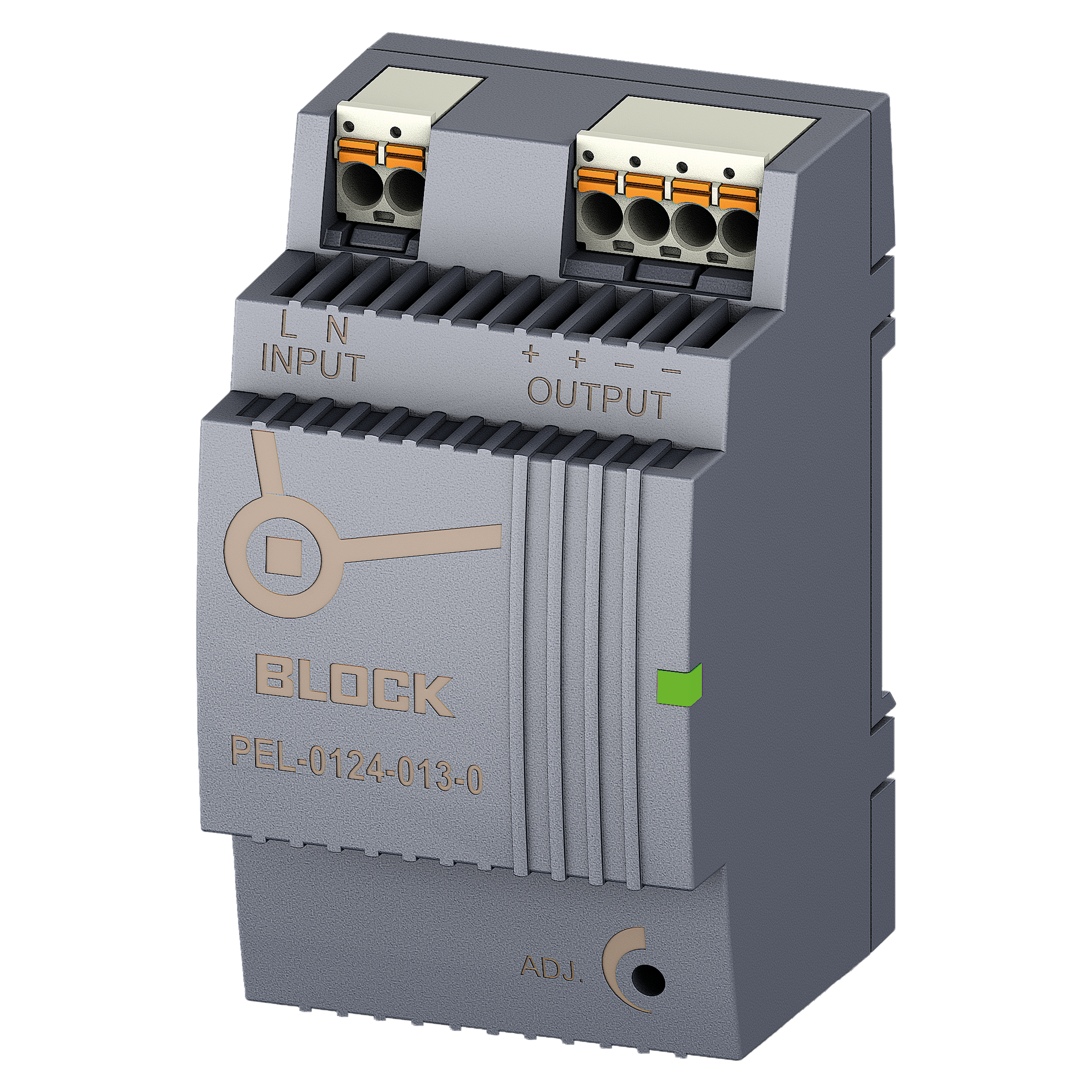

Product Primary switched mode power supply, single-phase
Order number PEL-0124-013-0
Input
Rated input voltage 100 Vac to 240 Vac
Input voltage range 85 Vac to 264 Vac
Input voltage range 120 Vdc to 373 Vdc
Rated input current (rated load) (100Vac) 0.70 A
Rated input current (rated load) (230Vac) 0.50 A
Internal input fuse 2 AT
Rated frequency range AC 44 Hz to 66 Hz
Rated frequency range DC 0 Hz
Inrush current limitation NTC < 30 A
Recommended preliminary fuse 6A, 10A, 16A, B/C-Char.
Mains failure bridging (rated load) (100Vac) 10.0 ms
Mains failure bridging (rated load) (230Vac) 80.0 ms
Output
Power 31 W
Rated output voltage 24 Vdc
Rated Output Current 1.3 A
Output voltage range 22.8 Vdc to 26.4 Vdc
Output Current Limitation (Constant Current) typ. 1.43 A
Ripple (rated load) typ. 100 mVss
Max. power loss 7.3 W
Max. feedback resistance 30 Vdc
Verlustleistung Leerlauf (230Vac) 2.60 W
Verlustleistung Nennlast (230Vac) 7.00 W
Efficiency 82 %
Parallel connection possible Yes
Series connection possible Yes
Signaling
Status display Green LED
Enviroment
Ambient temperature -25 °C to 60 °C / -13 °F to 140 °F
Storage Temperature -25 °C to 85 °C / -13 °F to 185 °F
Humidity without condensation 5 % to 96 %
Cooling type natural convection
Required minimum distance (side) 0 mm
Required minimum distance (top/bottom) 50 mm
Protection and Safety
Degree of pollution 2
Protection class according to EN 61140 II (in the closed control cabinet)
Size and Weight
Width 54 mm / 2.13 in
Height 89 mm / 3.5 in
Depth 59 mm / 2.32 in
Weight 0.18 kg / 0.4 lbs
