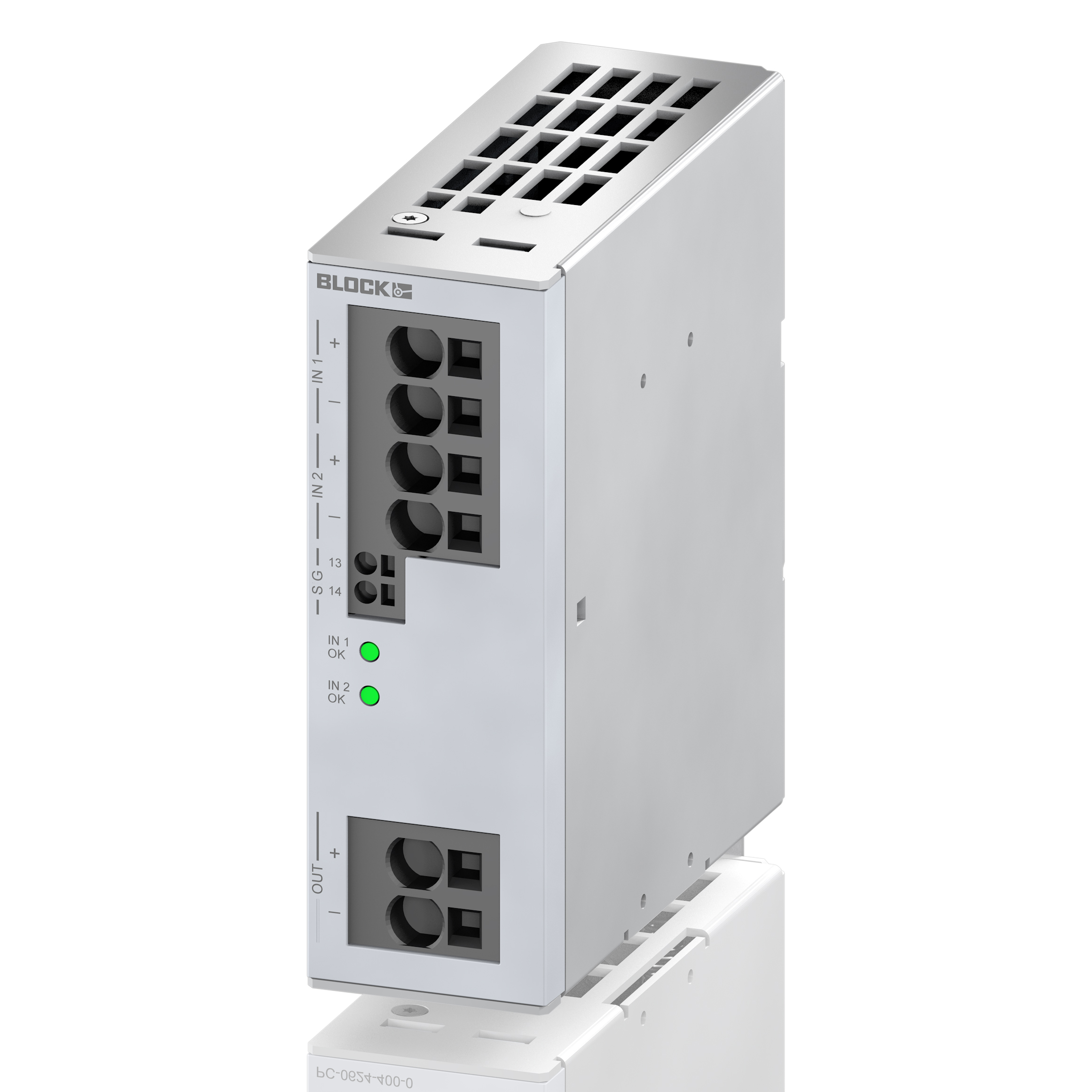

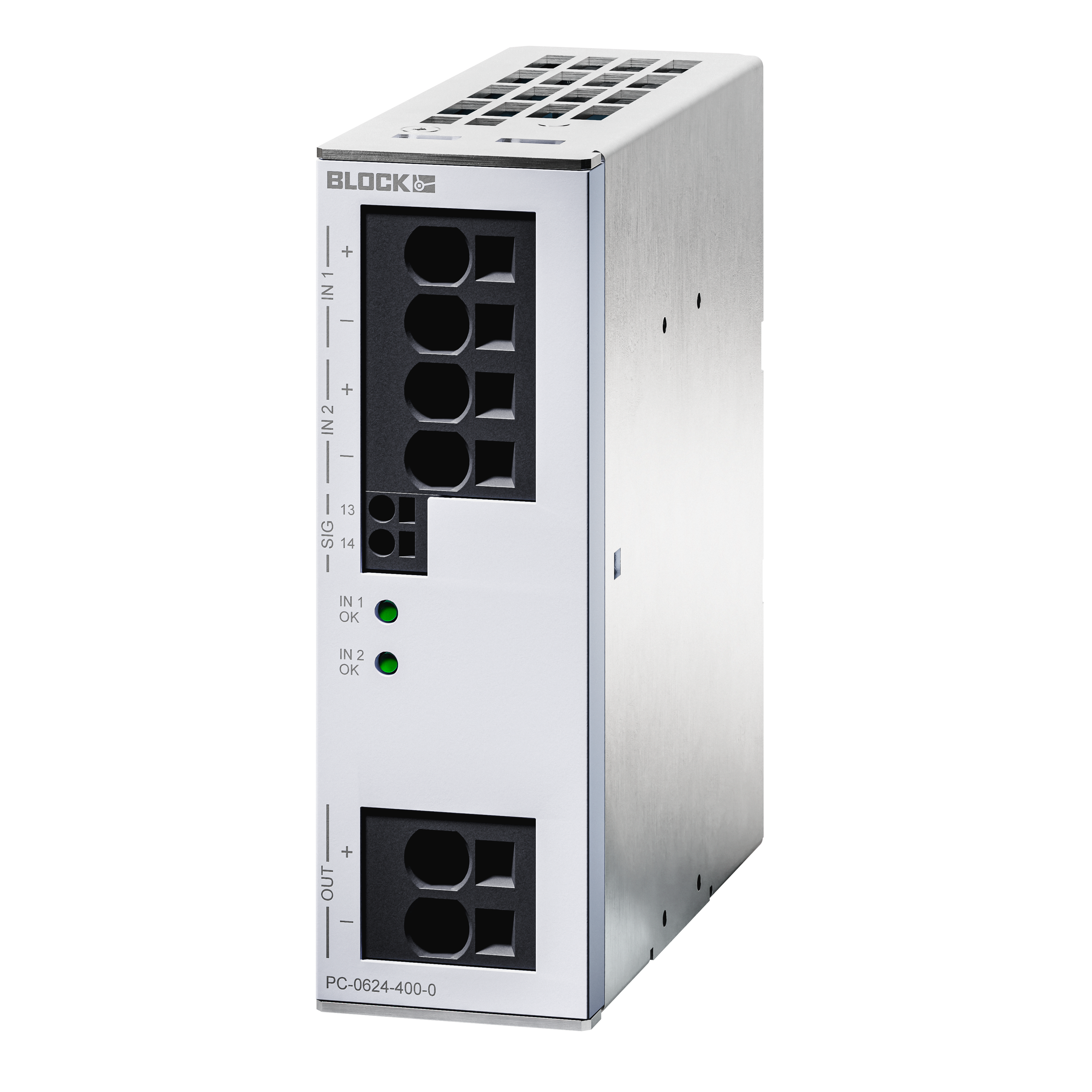

PC-0624-400-0

Redundancy module

Version PC-0624-400-0
Input rated voltage 24 Vdc Output rated current 40.00 A
Version Input rated voltage Output rated current
PC-0624-200-0 24 Vdc 20.00 A
PC-0624-400-0 24 Vdc 40.00 A
PC-0648-200-0 48 Vdc 20.00 A
PC-0648-400-0 48 Vdc 40.00 A

Technical data for PC-0624-400-0

Input
Input rated voltage 24 Vdc
Input voltage range 10 - 36 Vdc
Input rated current 2 x 20 A / 1 x 40 A
Output
Output rated voltage 24 Vdc
Output voltage range 10 - 36 Vdc
Voltage drop max. 100 mV
Resistance to reverse feed max. 37 Vdc
Output rated current 40.00 A
Internal fuse No
Power Boost 200 A, 50 ms / 120 A, 4 s / 100 A, 8 s
Parallel connection Yes
max. Power loss idling/nominal load 1,5 W / 9,5 W
Efficiency 99,5 %
Signaling
Power Good (DC OK) Green LED per input
Potential-free signal contact N/O contact
Approvals
Approvals UL 60950/ UL508 (prepared), GL (prepared)
Environment
Ambient temperature -40 °C to +70 °C
Storage temperature -40 °C to +85 °C
Derating -
Climatic category 3k3
Required minimum spacing (left/right) 0 mm
Type of cooling convection
Required minimum spacing (over/under) 50 mm
Degree of pollution 2
Relative humidity 5 - 96 %
MTBF @ 50 °C/500 V (Mil-HB-217F) >500.000h
Safety and protection
Protection index IP 20
Safety class (prepared) III, without PE connection
Reverse connection protection Yes
Terminal and mounting
Terminals input (direct plug-in technology Push-in) max. 16 mm²
Terminals output (direct plug-in technology Push-in) max. 16 mm²
Terminals signaling max. 2,5 mm²
Fixing method DIN Rail system TS35
Mounting position vertical
Measures and weights
Width 42 mm
Height 127 mm
Depth 112.5 mm
Weight 0.37 kg

Info on PC RE series

General Data
  • Output rated current 20 - 40 A
  • Ambient temperature -40 °C to +70 °C
  • Protection index IP 20
  • Output rated voltage 24 - 48 Vdc
  • Input rated voltage 24 - 48 Vdc
Benefits
  • Active operation for minimal power loss even in the event of a short-circuit on the secondary side
  • Safe parallel operation to increase power
  • High efficiency
  • Error message via relay contact and LEDs
  • Fully compatible with Top and Power Boost for your power supplies
  • Based on Mosfet technology
  • 3 years warranty
