PC-0424-115-0

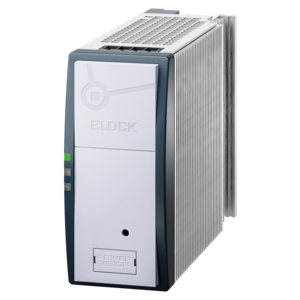

Capacity module PC-0424-115-0
| Version | |
|---|---|
| PC-0424-115-0 |
DOWNLOADS
Technical files
Instruction manual
Approvals / Manufacturer's declaration
EU-Declaration of Conformity
Technical data for PC-0424-115-0
| Input | |
|---|---|
| Input rated voltage | 24 Vdc |
| Output | |
|---|---|
| Output rated voltage | 24 Vdc |
| Output rated current | 40.00 A |
| Storage medium | |
|---|---|
| Type of the storage medium | Capacitors, internal |
| Charging current | max. 3.0 A |
| Signaling | |
|---|---|
| Bus communication | System bus |
| Environment | |
|---|---|
| Ambient temperature | -25 °C to +70 °C |
| Storage temperature | -25 °C to +70 °C |
| Safety and protection | |
|---|---|
| Protection index | IP 20 |
| Safety class | I |
| Terminal and mounting | |
|---|---|
| Mounting position | vertical |
| Fixing method | DIN Rail system TS35 |
| Measures and weights | |
|---|---|
| Width | 77 mm |
| Height | 127 mm |
| Depth | 139 mm |
| Weight | 1.70 kg |
Info on PC-0424-115-0 series
General Data
- Protection index IP 20
- Rated voltage 24 Vdc
- Charging current max. 3 A
- Ambient temperature -25 °C to +70 °C
Benefits
- Extension of the buffer time of PC-0424-017-0 and PC-0424-050-0
- Very long buffer times achievable
- Automatic addressing
- Communication through system bus cable
- 3 years warranty
