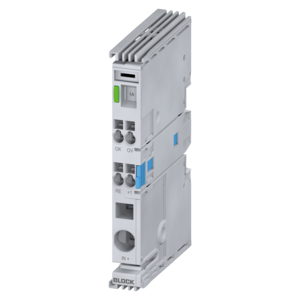

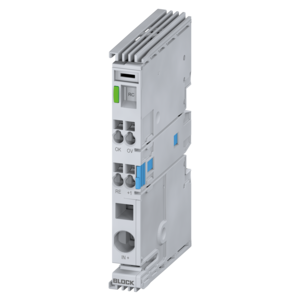

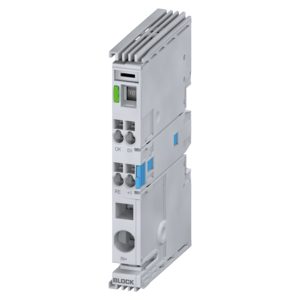

Communication module
EB-IO-LINK1
Characteristics
Benefits
› Interface between PLC and EasyB modules
› Communication with up to 16 channels
› All functions of the circuit breaker (communication, characteristics) can still be utilized.
› Automatic through-contacting of all signals by right-side alignment.
| Product (Headline_Detailseite) | Communication module |
| Order number (PF_Teilenummer) | EB-IO-LINK1 |
| Series (PF_Baureihe) | EB-ACCESSORIE |
Input
| Switch-on threshold (EWS_Erforderliche_Eingangsspannung_zum_Einschalten_der_Ausgaenge) | 17.50 V |
Output
| Switch-off threshold (EWS_Ausschaltschwelle) | 16.7 V |
| Idle current @ 24 V (EWS_Ruhestrom_im_Leerlauf) | 33 mA |
| Max. feedback resistance (EWS_Rueckspeisefestigkeit_max) | 35 Vdc |
| Power losses in stand-by mode (EWS_Verlustleistung_im_Leerlauf_24_V) | 0.36 W |
Signaling
| Potential-free signal output (PIM_alt_potenzialfreier_signalausgang_2) | - |
| Potential-free signal output (PIM_alt_potenzialfreier_signalausgang_1) | - |
| Signal input (ON/OFF/Reset) (PIM_alt_signaleingang) | Reset input Level high = min. 11 Vdc, max. 30 Vdc Level low = min. 0 Vdc, max. 5 Vdc Jitter: +/- 5 %; +/- 5 ms |
Environment
| Climate class according to EN 60721 (EWS_Klimaklasse) | 3K3 |
| Ambient temperature (PF_Umgebungstemperatur) | -25 °C to 70 °C / -13 °F to 158 °F |
| Storage temperature (PF_Lagertemperatur) | -25 °C to 85 °C / -13 °F to 185 °F |
| Humidity without condensation (EWS_Luftfeuchtigkeit) | 5 % to 96 % |
| Cooling type (PF_Kuehlungsart) | natural convection |
Protection and Safety
| Degree of pollution (EWS_Verschmutzungsgrad) | 2 |
Size and Weight
| Width (PF_Breite_mm) | 12 mm / 0.47 in |
| Height (PF_Hoehe_mm) | 99 mm / 3.9 in |
| Depth (PF_Tiefe_mm) | 60 mm / 2.36 in |
| Weight (PF_Gewicht_kg) | 0.04 kg / 0.088 lbs |
