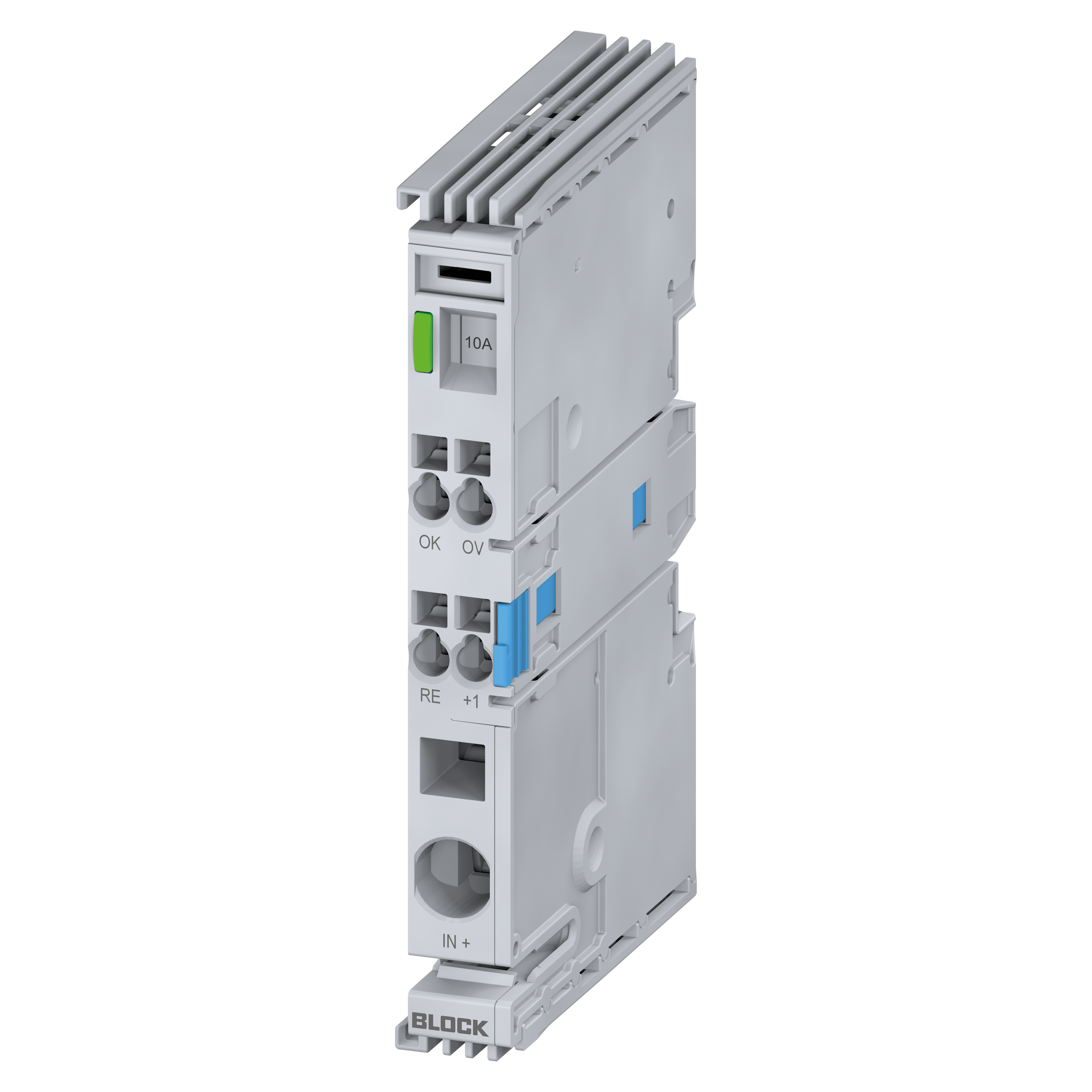

1-Channel circuit breaker current-limiting, communicative

EB-1824-100-0

Characteristics

Benefits

 Automatic channel assignment

 Communication via communication modules

 Optional undervoltage shutdown in combined network

 Optional settings for tripping current

 Additional load outputs through output expanders mountable side by side

 Selective load-dependent activation

 Collective reset input

 3 years warranty

Product Search
Product 1-Channel circuit breaker current-limiting, communicative
Order number EB-1824-100-0
Series EB-18
Input
Rated input voltage 24 Vdc
Input voltage range 18 Vdc to 30 Vdc
Max. continuous current of the module 10 A
Max. continuous current feed terminal (+) 40 A
Überspannungsschutz Suppressordioden
Max. ripple of the feeding input voltage 3 %
Switch-on threshold 17.50 V
Output
Rated output voltage 24 Vdc
Rated Output Current 10 A
Rated Output Current per Output Channel 10 A
Output voltage range 24 Vdc
Number of Output Channels 1
Switch-off threshold 16.7 V
Max. voltage drop between input and output 130 mV
Max. waiting time after switching off an output after an overload (thermal relaxation) 5 s
Idle current @ 24 V 39 mA
Max. feedback resistance 35 Vdc
Power losses in stand-by mode 1.20 W
Parallel connection of outputs Nicht erlaubt
Series connection of outputs Nicht erlaubt
Release Characteristics Active current limiting
Signaling
Signal output Output status, short-circuit proof, DC 24 V, max. 25 mA, high = channel on, low = channel off, error
Signal input Reset: high (min. 500 ms) > low, (high = 15 - 30 Vdc, low = 0 - 5 Vdc)
Status display Green, yellow, red LED
Environment
Climate class according to EN 60721 3K3
Ambient temperature -25 °C to 70 °C / -13 °F to 158 °F
Storage temperature -25 °C to 85 °C / -13 °F to 185 °F
Humidity without condensation 5 % to 96 %
Cooling type natural convection
Required minimum distance (side) 0 mm
Required minimum distance (top/bottom) 30 mm
Protection and Safety
Degree of pollution 2
Protection class according to EN 61140 III, without PE connection
Size and Weight
Width 12 mm / 0.47 in
Height 99 mm / 3.9 in
Depth 60 mm / 2.36 in
Depth incl. DIN TH35 64.5 mm / 2.54 in
Weight 0.04 kg / 0.088 lbs
