1-Channel circuit breaker thermomagnetic

EB-2724-040-0

Download data sheet

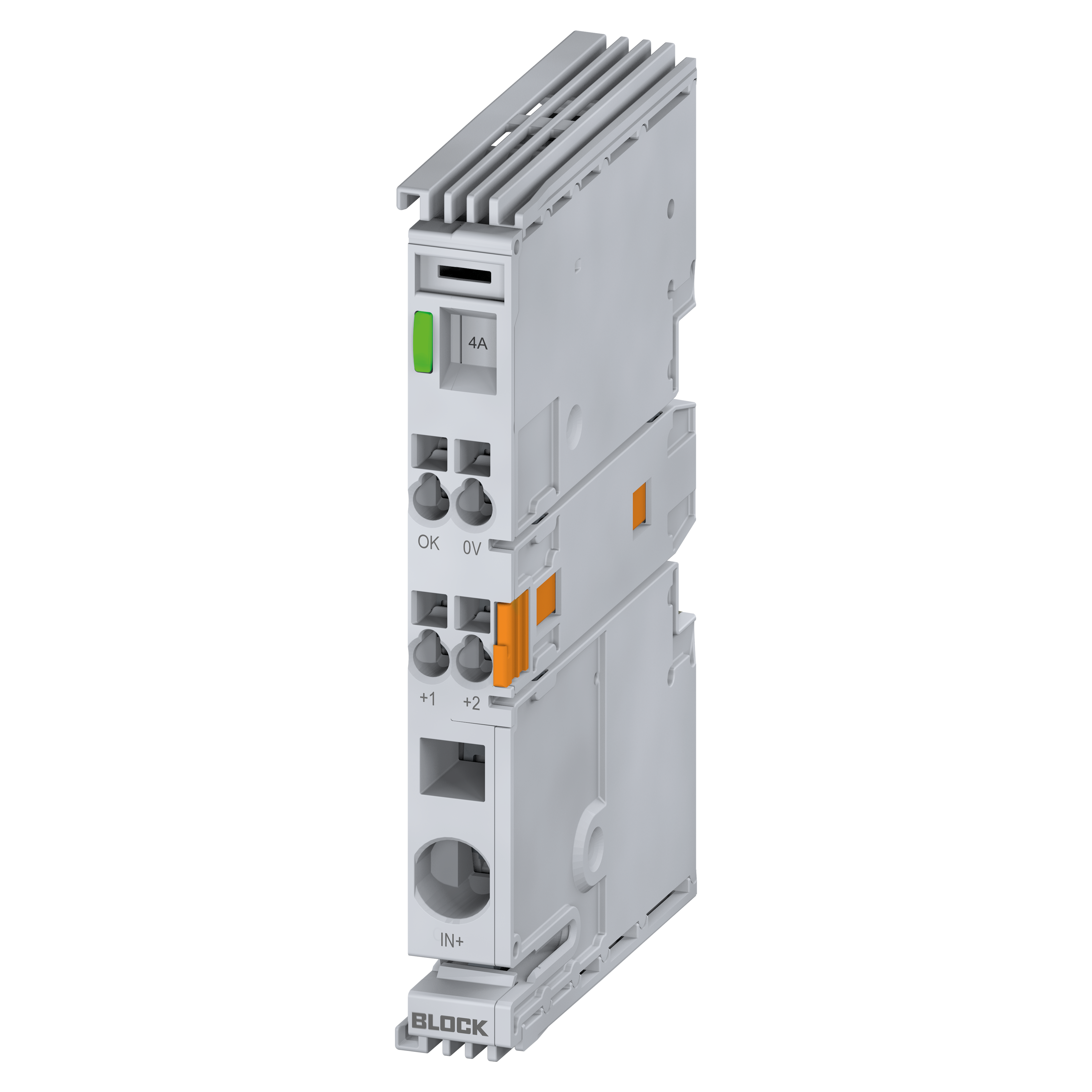

Image of BLOCK Item: EB-2724-040-0

Characteristics

Benefits

› Automatic channel assignment

› Optional undervoltage shutdown in combined network

› Additional load outputs through output expanders mountable side by side

› 3 years warranty

Product 1-Channel circuit breaker thermomagnetic
Order number EB-2724-040-0
Series EB-27
Input
Rated input voltage 24 Vdc
Input voltage range 18 Vdc to 30 Vdc
Max. continuous current of the module 4 A
Max. continuous current feed terminal (+) 40 A
Max. ripple of the feeding input voltage 3 %
Switch-on threshold 17.50 V
Output
Rated output voltage 24 Vdc
Rated Output Current 4 A
Rated Output Current per Output Channel 4 A
Output voltage range 24 Vdc
Number of Output Channels 1
Switch-off threshold 16.7 V
Max. voltage drop between input and output 34 mV
Max. waiting time after switching off an output after an overload (thermal relaxation) 5 s
Idle current @ 24 V 12 mA
Max. feedback resistance 35 Vdc
Power losses in stand-by mode 0.30 W
Parallel connection of outputs Nicht erlaubt
Series connection of outputs Nicht erlaubt
Release Characteristics Thermomagnetic characteristic
Signaling
Signal output Output status, short-circuit proof, DC 24 V, max. 25 mA, high = channel on, low = channel off, error
Status display Green, yellow, red LED
Environment
Climate class according to EN 60721 3K3
Ambient temperature -25 °C to 70 °C / -13 °F to 158 °F
Storage temperature -25 °C to 85 °C / -13 °F to 185 °F
Humidity without condensation 5 % to 96 %
Cooling type natural convection
Required minimum distance (side) 0 mm
Required minimum distance (top/bottom) 30 mm
Protection and Safety
Degree of pollution 2
Protection class according to EN 61140 III, without PE connection
Size and Weight
Width 12 mm / 0.47 in
Height 99 mm / 3.9 in
Depth 60 mm / 2.36 in
Depth incl. DIN TH35 64.5 mm / 2.54 in
Weight 0.04 kg / 0.088 lbs
