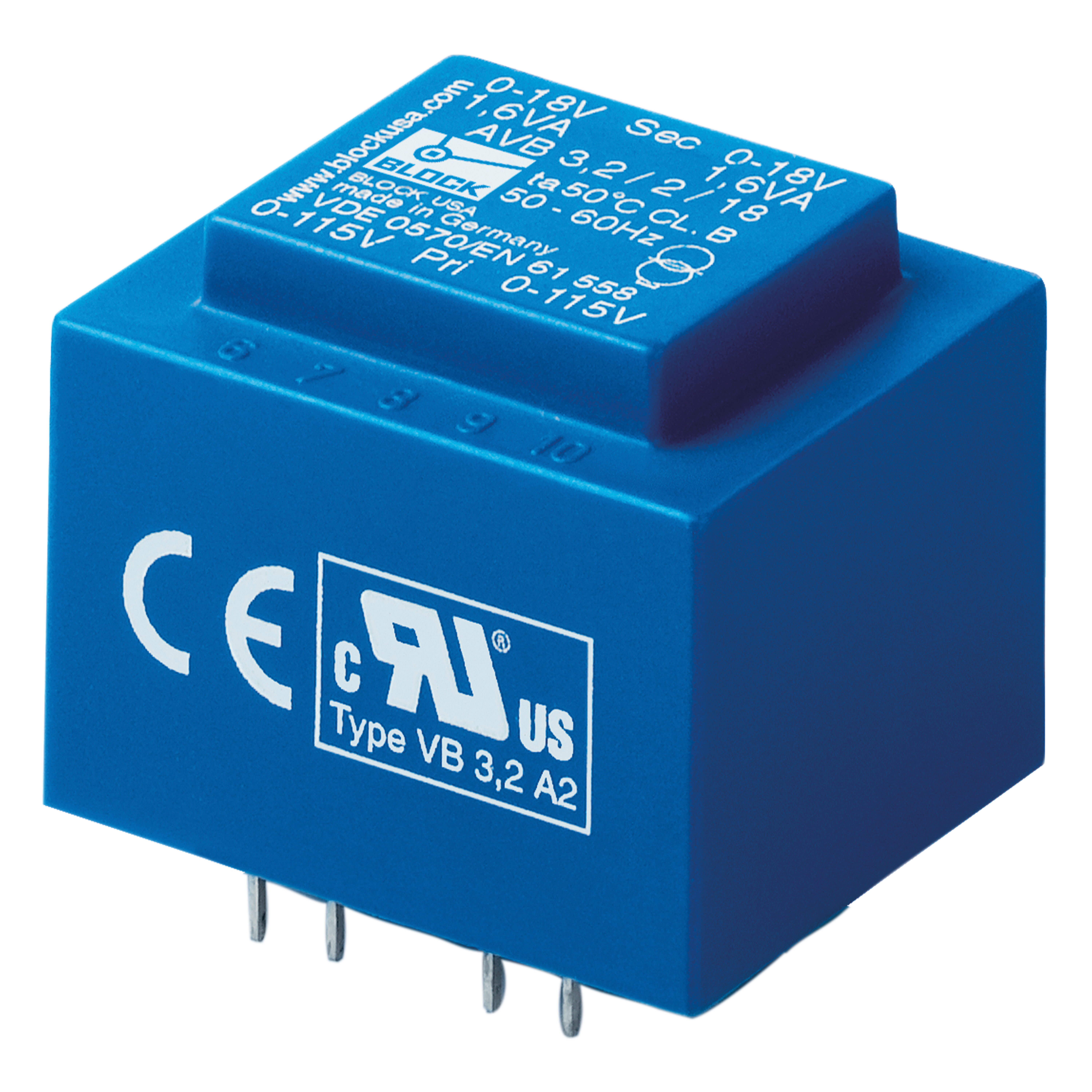

Short circuit proof PCB transformer, separating transformer
AVB 0,5/2/24 - Discontinued types – not for new designs
Characteristics
Benefits
› Minimum size at high output
› Inherently short-circuit proof
› Dual input voltage for series or parallel connection
› Also with dual output voltage for series or parallel connection
› Designed for high ambient temperatures
› Permanent corrosion protection, high insulation value and maximum electrical reliability thanks to XtraDenseFill resin encapsulation
› Self-extinguishing potting and hood material
| Product | Short circuit proof PCB transformer, separating transformer |
| Order number | AVB 0,5/2/24 |
| Series | AVB |
| Power | 0.5 VA |
| Input | 2 x 115 V |
| Output | 2 x 24 V • 0.01 Aac |
| Phases | 1 |
| Frequency range | 50 Hz to 60 Hz |
| Short-Circuit Losses | 0.65 W |
| No-Load Losses | 0.03 W |
| Short circuit voltage uk | 51 % |
| EN Insulation class | B (130°C) |
| UL Insulation class | class 105 |
| Duty Cycle | 100 % |
| Wire material | Copper |
| Efficiency | 42.4 % |
General
| Short circuit proof | inherently short-circuit proof |
| Switching group | IIii0 |
| Cooling type | AN |
Environment
| Ambient temperature | -20 °C to 70 °C / -4 °F to 158 °F |
| Max. installation height | 2,000 m / 6,562 ft |
Protection and Safety
| Protection type | IP00 |
| Protection class (prepared) | II |
| Overvoltage category | III |
| Degree of contamination | 1 |
Electrical Connections
| Input terminal | Pin |
| Output terminal | Pin |
Size and Weight
| Width | 22.7 mm / 0.89 in |
| Height | 19 mm / 0.75 in |
| Depth | 22 mm / 0.87 in |
| Weight | 0.036 kg / 0.079 lbs |
| Low Voltage Directive | EN 61558-2-1 |
| Approval cURus - Recognized | UL 5085-1/-2; CSA 22.2 |
