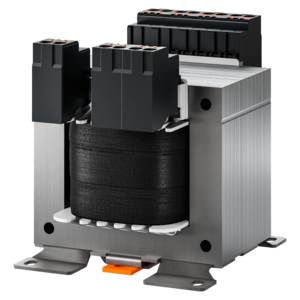

Control- and safety isolating transformer

STSU 100/24

Characteristics

Benefits

 Control and safety isolating transformer according to EN (IEC) 61558-2-2 and EN (IEC) 61558-2-6

 Dual input voltage 230 and 400 Vac

 Very good switch-on behavior thanks to reduced inrush currents

 Primary side ±15 V taps for voltage adjustment

 Touch-protected terminal blocks according to UVV BGV A3

 With combination base plate for screw and DIN rail mounting

Product Control- and safety isolating transformer
Order number STSU 100/24
Series STSU
Power 100 VA
Input 230 V / 400 V ± 15 V
Output 2 x 12 V • 4.17 Aac
Phases 1
Frequency range 50 Hz to 60 Hz
Short-Circuit Losses 11.39 W
No-Load Losses 7.36 W
Short-Term Power / instantaneous output 254 VA
Short circuit voltage uk 7.52 %
EN Insulation class B (130°C)
UL Insulation class class 130
Duty Cycle 100 %
Wire material Copper
Efficiency 84.2 %
General
Short circuit proof not short-circuit proof
Switching group Iii0
Shield winding Yes
Cooling type AN
Environment
Ambient temperature -20 °C to 40 °C / -4 °F to 104 °F
Max. installation height 2,000 m / 6,562 ft
Protection and Safety
Protection type IP 00
Protection class (prepared) I
Overvoltage category III
Degree of contamination 1
Electrical Connections
Input terminal Screw terminal
Output terminal Screw terminal
Terminal PE Screw terminal
Size and Weight
Width 84 mm / 3.31 in
Height 96 mm / 3.78 in
Depth 97 mm / 3.82 in
Weight 2.05 kg / 4.519 lbs
General
TS35 rail mounting possible Ja
Low Voltage Directive EN 61558-2-2
EN 61558-2-6
Approval cURus - Recognized UL 5085-1/-2; CSA 22.2
