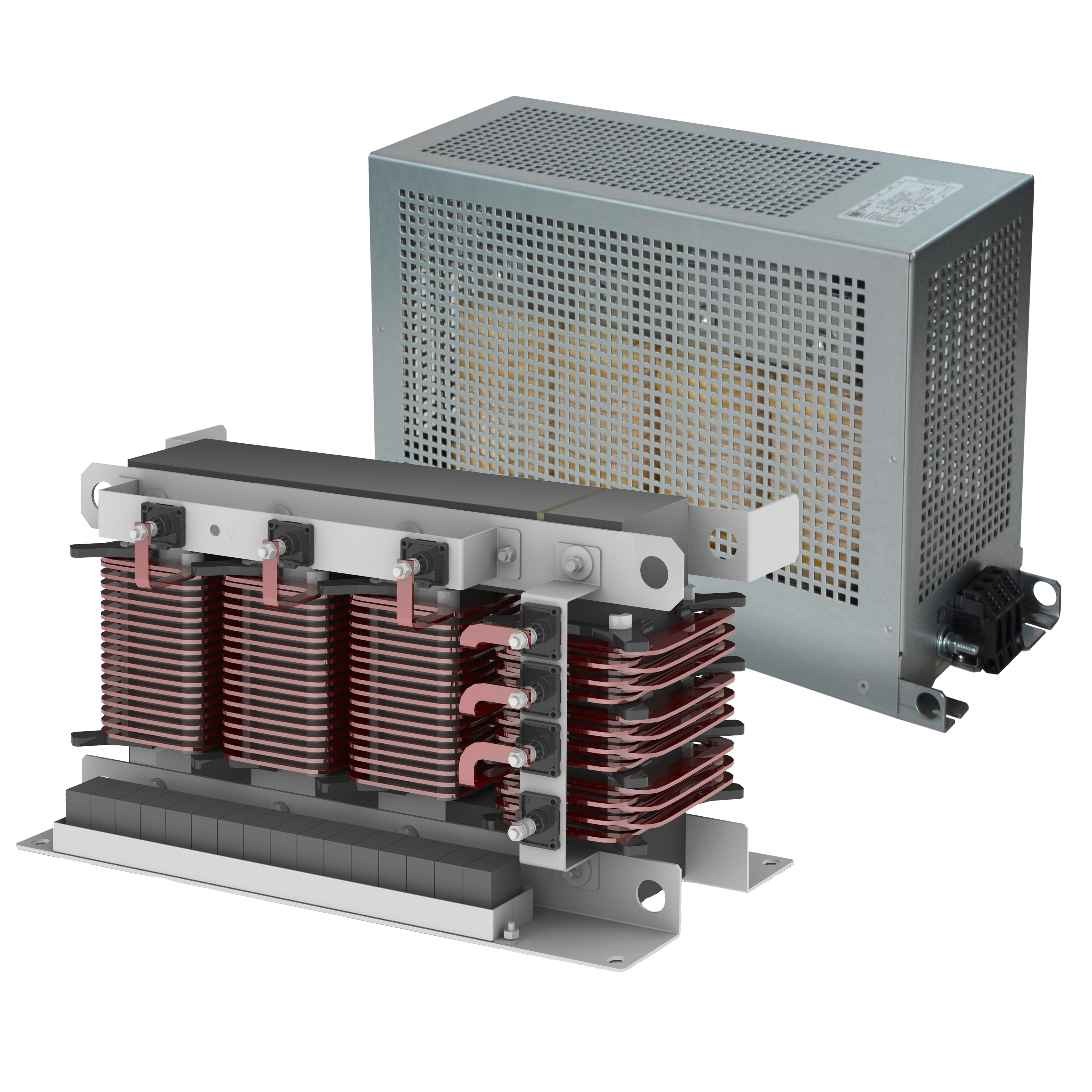

All-pole sine filter
SF4-CE065-500-2
Characteristics
Benefits
› Efficiency optimisation of the drive system
› Use of unshielded motor cables
› Improves conducted and radiated electromagnetic interference (150 kHz - 300 MHz)
› Significant reduction of leakage currents
› Elimination of bearing currents
› Increase of motor service life
| Product (Headline_Detailseite) | All-pole sine filter |
| Order number (PF_Teilenummer) | SF4-CE065-500-2 |
| Series (PF_Baureihe) | SF4 |
| Inductance (PF_Drossel_Phasen_Induktivitaet) | 3x 0.75 mH |
| Rated current (PF_Drossel_Phasen_Strom) | 3x 65 Aac |
| Linear current (PF_Drossel_Phasen_Linearitaetsstrom) | 3x 150 Aac |
| Rated voltage range (PF_Bemessungsspannungsbereich) | 0 V to 500 V |
| Phases (PF_Phasen) | 3 |
| Frequency range (PF_Frequenzbereich) | 5 Hz to 150 Hz |
| Switching frequency range (PF_Taktfrequenzbereich) | to 16 kHz |
| EN Insulation class (PF_EN_Isolierstoffklasse) | H (180°C) |
| UL Insulation class (PF_UL_Isolierstoffklasse) | class 180 |
| Duty Cycle (PF_Einschaltdauer) | 100 % |
| Power loss (PF_Verlustleistung_W) | 550.00 W |
| Wire material (PF_Leitermaterial) | Copper |
General
| Duty Cycle (PF_Einschaltdauer) | 100 % |
| Cooling type (PF_Kuehlungsart) | AN |
| Switching group (PF_Schaltgruppe) | III0 |
Environment
| Ambient temperature (PF_Umgebungstemperatur) | -10 °C to 45 °C / 14 °F to 113 °F |
| Max. installation height (PF_max_Aufstellhoehe_m) | 1,000 m / 3,281 ft |
Protection and Safety
| Protection type (PF_Schutzart) | IP XX B |
| Protection class (prepared) (PF_Schutzklasse) | I |
| Degree of contamination (PF_Verschmutzungsgrad) | 2 |
Electrical Connections
| Input terminal (PF_Anschluss_Eingang) | Screw terminal |
| Output terminal (PF_Anschluss_Ausgang) | Screw terminal |
| Terminal PE (PF_Anschluss_PE) | Bolt connection |
Size and Weight
| Width (PF_Breite_mm) | 680 mm / 26.77 in |
| Height (PF_Hoehe_mm) | 335 mm / 13.19 in |
| Depth (PF_Tiefe_mm) | 200 mm / 7.87 in |
| Weight (PF_Gewicht_kg) | 61.7 kg / 136.025 lbs |
| Low Voltage Directive | EN 61558-2-20 |
| RoHS compliant | EN IEC 63000 |
| Approval cULus - Listed | UL 508; CSA 22.2 |
