Resistance wire

RD 100/3,0

Download data sheet
Image of BLOCK Item: RD 100/3,0 Image of BLOCK Item: RD 100/3,0

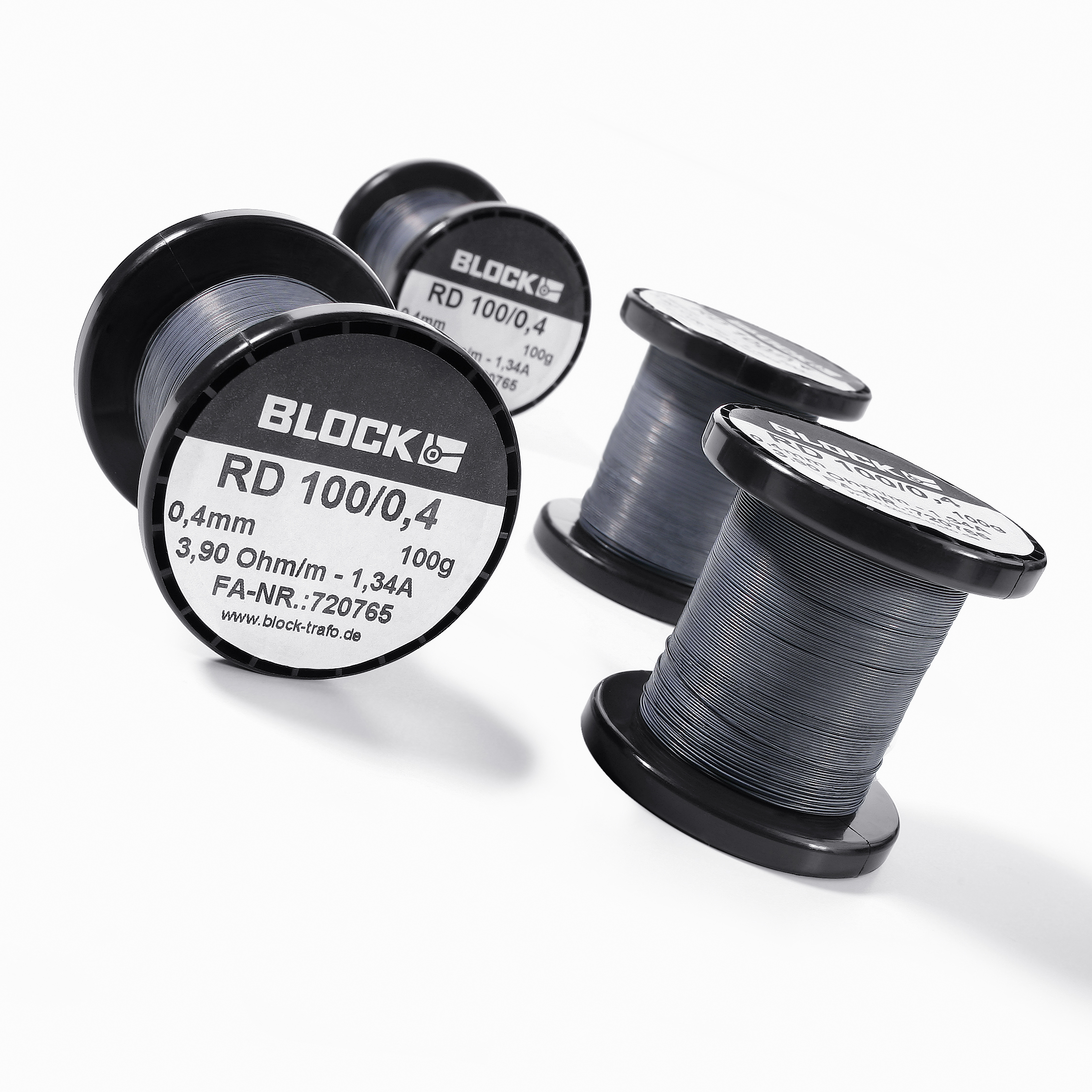

Picture shows RD 100/0,4
Picture Objective

Characteristics

Benefits

› Constant in specific resistance

› Influence of the temperature or inherent heating on the resistance value practically insignificant (max. 0.8 % at 100 °C temperature rise)

› Firmly adhering surface oxide coating withstands any temperature change and protects against further oxidation under continuous load

› Very easy to machine thanks to softness and malleability

› Suitable for soft soldering, hard soldering or welding

Product Resistance wire
Order number RD 100/3,0
Series RD
Direct current resistance 0.07 Ω/km
Protection and Safety
Max. permissible wire temperature bis 600 °C
Melting temperature 1220 - 1270 °C
Size and Weight
Width 3 mm / 0.12 in
Height 3 mm / 0.12 in
Depth 3 mm / 0.12 in
Weight 0.1 kg / 0.22 lbs
Wire diameter 3 mm / 0.12 in
Length (Min.) 1.00 m / 0.04 in
