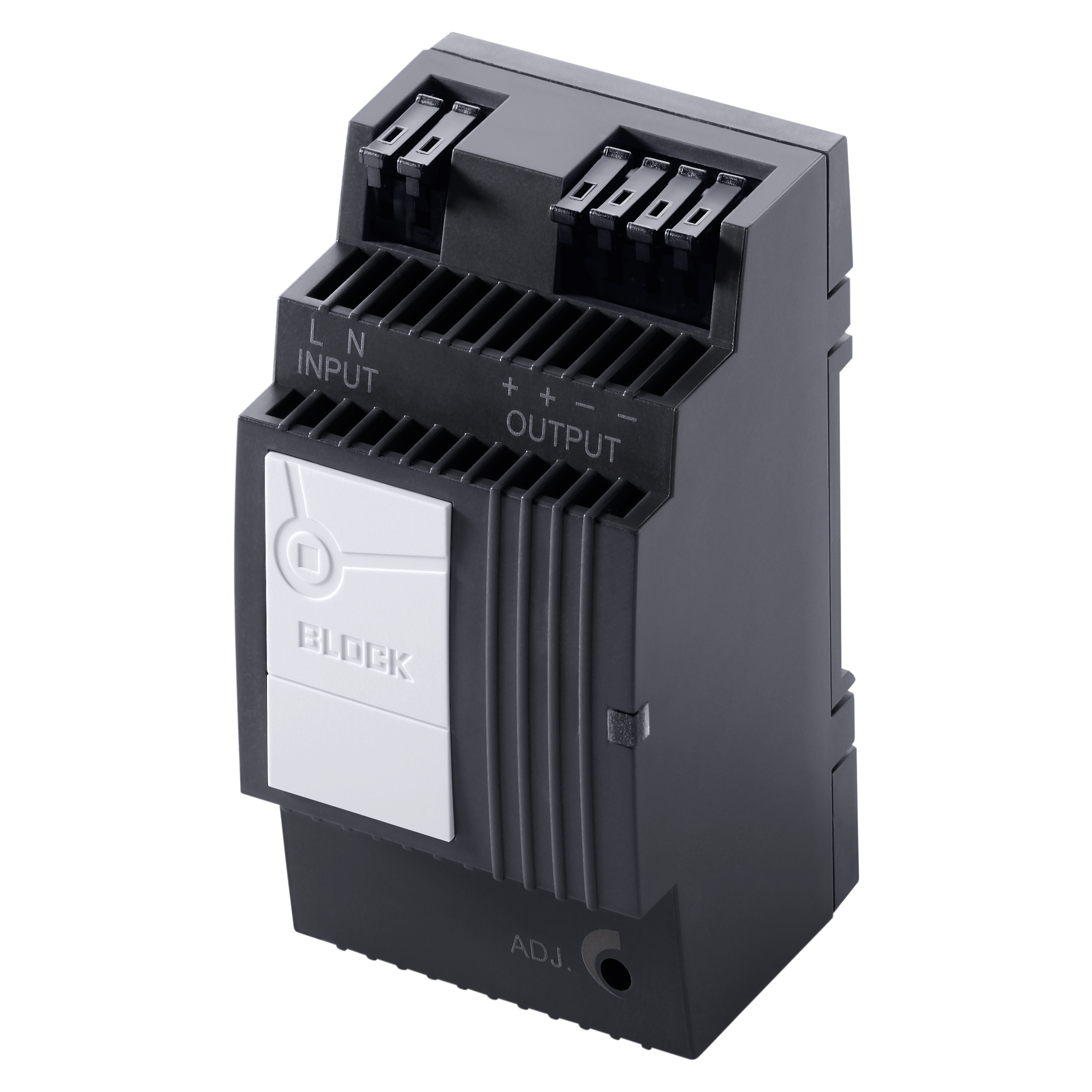

Primary switched mode power supply, single-phase

PEL 230/18-2,5

Characteristics

Benefits

 Stabilised and adjustable output voltage

 DC OK signalling via LEDs

 Parallel connection option

 Service-friendly spring-loaded connector system

 Panel installation on mounting rails

 3 years warranty

Product Search
Product Primary switched mode power supply, single-phase
Order number PEL 230/18-2,5
Input
Rated input voltage 100 Vac to 240 Vac
Input voltage range 85 Vac to 264 Vac
Input voltage range 120 Vdc to 373 Vdc
Rated input current (rated load) (100Vac) 0.72 A
Rated input current (rated load) (230Vac) 0.42 A
Internal input fuse 4 AT
Rated frequency range AC 44 Hz to 66 Hz
Rated frequency range DC 0 Hz
Inrush current limitation NTC < 30 A
Recommended preliminary fuse 6A, 10A, 16A, B/C-Char.
Mains failure bridging (rated load) (100Vac) 25.0 ms
Mains failure bridging (rated load) (230Vac) 120.0 ms
Output
Power 45 W
Rated output voltage 18 Vdc
Rated Output Current 2.5 A
Output voltage range 15 Vdc to 28 Vdc
Output Current Limitation (Constant Current) typ. 2.75 A
Ripple (rated load) typ. 50 mVss
Power factor 0.58
Max. power loss 11 W
Max. feedback resistance 35 Vdc
Verlustleistung Leerlauf (230Vac) 1.00 W
Verlustleistung Nennlast (230Vac) 9.20 W
Efficiency 83 %
Parallel connection possible Yes
Series connection possible Yes
Signaling
Status display Green LED
Enviroment
Ambient temperature -25 °C to 60 °C / -13 °F to 140 °F
Storage Temperature -25 °C to 85 °C / -13 °F to 185 °F
Humidity without condensation 5 % to 96 %
Cooling type natural convection
Required minimum distance (side) 0 mm
Required minimum distance (top/bottom) 50 mm
Protection and Safety
Degree of pollution 2
Protection class according to EN 61140 II (in the closed control cabinet)
Size and Weight
Width 72 mm / 2.83 in
Height 89 mm / 3.5 in
Depth 59 mm / 2.32 in
Weight 0.24 kg / 0.53 lbs
