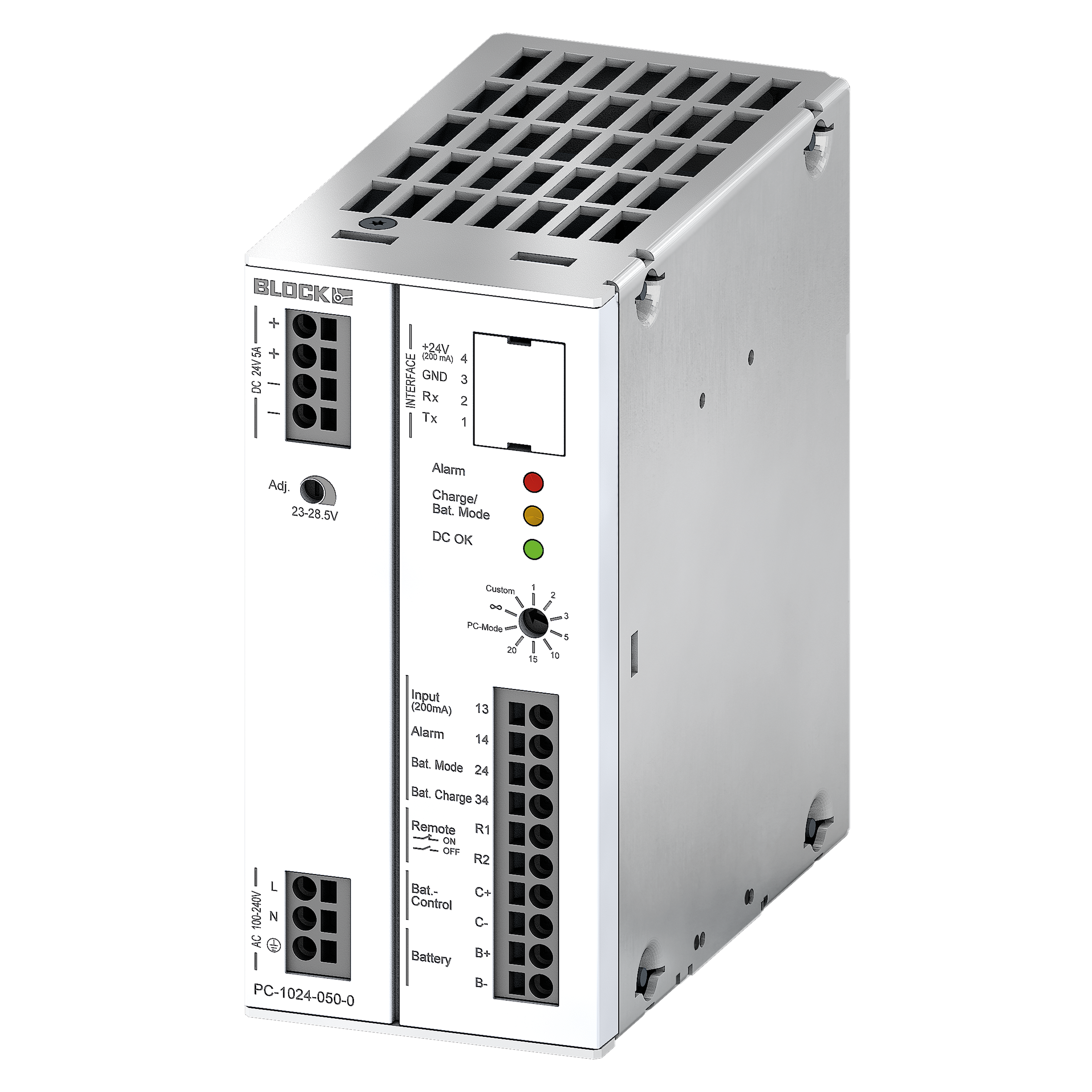

PC-1024-050-0
Power Compact - Uninterruptible power supply PC Kombi USV
Input rated voltage
100 - 240 Vac
Output rated voltage
24 Vdc
Output rated current
5.00 A
| Version | Input rated voltage | Output rated voltage | Output rated current | |
|---|---|---|---|---|
| PC-1024-050-0 | 100 - 240 Vac | 24 Vdc | 5.00 A | |
| PCC-1024-050-2U | 100 - 240 Vac | 24 Vdc | 5.00 A | |
| PCC-1024-050-20 | 100 - 240 Vac | 24 Vdc | 5.00 A | |
| PCC-1024-100-2U | 100 - 240 Vac | 24 Vdc | 10.00 A | |
| PCC-1024-100-20 | 100 - 240 Vac | 24 Vdc | 10.00 A |
DOWNLOADS
Technical files
Dimension sheet
Instruction manual
Approvals / Manufacturer's declaration
UL 508 Listed USA (E219022)
UL 508 Listed Canada (E219022)
COC UL 508 & CSA 22.2
UL 60950-1 USA (E213214)
UL 60950-1 Canada (E213214)
COA UL 60950-1 & CSA 22.2
COC UL 60950-1 & CSA 22.2
EU-Declaration of Confirmity
Marine GL (1452215 HH)
CAD/CAE data
3D-CAD-Modell (STEP)
Software
Software UPS_CONTROL (Version 4.1.4)
Additional information
Uninterruptible power supplies brochure
Technical data for PC-1024-050-0
| Input | |
|---|---|
| Input rated voltage | 100 - 240 Vac |
| Input voltage range | 85 - 264 Vac (120 - 372 Vdc) |
| AC input derating | -1.5 % / Vac < 110 Vac |
| DC input derating | -1 % / Vdc < 150 Vdc |
| Rated frequency range | 47 Hz - 63 Hz / 0 Hz |
| Input rated current (rated load) | 1.96 A / 0.95 A (100 / 230 Vac) |
| Starting current limiter | < 30 A, NTC |
| Switch-on time | < 200 ms |
| Input fuse internal | 4 A (time-lag) |
| Recommended back-up fuse (circuit breaker) | 6 A, 10 A, 16 A, charakteristic B, C |
| Transient surge voltage protection | Varistor |
| Output | |
|---|---|
| Output rated current | 5.00 A |
| Tripping of LS circuit breakers | max. B4 |
| Parallel connection | Only with redundancy module, max. 5 A output current |
| Serial operation | Yes |
| Ripple factor | typ. 50 mVss |
| Output rated voltage | 24 Vdc |
| Over-voltage-protection | typ. 38 Vdc |
| Rated output voltage (normal mode) | 24 Vdc |
| Rated output voltage (buffer mode) | 24 Vdc |
| Output voltage range (mains operation) | 23 – 28.5 Vdc |
| Output voltage range (battery operation) | Battery voltage - 0.5 V (27.5 - 19 Vdc) |
| Output voltage limiting (mains operation) | typ. 6.5 A, constant current |
| Output voltage limiting (battery operation) | typ. 5.5 A |
| Power losses in mains operation (nominal load, battery charged) | 22 W (100 Vac) 17W (230 Vac) |
| Max. power losses in battery operation (stand-by/nominal load) | 3.2 W / 5.2 W |
| Storage medium | |
|---|---|
| Remote shutdown | Yes |
| Buffer period | 1, 2, 3, 5, 10, 15, 20 Min, PC-Mode, Maximum, Individual |
| Type of the storage medium | Accumulator, external |
| Reverse connection protection | Yes, (fuse in battery module trips) |
| Charging characteristic | 3-stage charging process (IUoU charging characteristic) |
| Charging current | max. 0.6 A |
| End-of-charge voltage | 26...29,5 V temperature-controlled, adjustable via interface |
| Check for presence of battery | 1 per minute |
| Check remaining battery life | 6 per hour |
| Deep discharge protection | 19 Vdc |
| Warning threshold, battery almost flat | 20.4 Vdc |
| Recommended battery modules | 1.2 - 12 Ah |
| Parallel connection of battery modules | Yes, max. 3 |
| Signaling | |
|---|---|
| Status indicator | 3 LED green/yellow/red |
| Isolated group input | max. 30 V / 200 mA current limiting (in 3 seperate signal outputs) |
| Alarm/Bat.Mode/Bat.Charge signal output | Relay, kill switch type, max. 30 V, function adjustable via interface |
| Approvals | |
|---|---|
| Approvals | cURus, cULus, GL |
| Environment | |
|---|---|
| Ambient temperature | -25 °C to +70 °C |
| Storage temperature | -25 °C to +85 °C |
| Derating | -3 %/K > +50 °C |
| Mounting position | horizontal for standard rail DIN TS35 |
| Type of cooling | natural convection |
| Required minimum spacing (left/right) | 0 mm |
| Required minimum spacing (over/under) | 50 mm |
| Safety and protection | |
|---|---|
| Protection index | IP 20 |
| Safety class | I, with PE connection |
| Resistance to reverse feed max. | 35 Vdc |
| Terminal and mounting | |
|---|---|
| Terminals signalling (direct plug-in technology Push-in) | max 2,5 mm² |
| Terminals input (direct plug-in technology Push-in) | max 2,5 mm² |
| Terminals output (direct plug-in technology Push-in) | max 2,5 mm² |
| Terminals storage medium direct plug-in technology Push-in | max. 2,5 mm² |
| Measures and weights | |
|---|---|
| Width | 60 mm |
| Height | 127 mm |
| Depth | 136 mm |
| Weight | 0.8 kg |
| Accessory | |
|---|---|
| Connector for interface | PC-CON1 (optional) |
| Communication cable for interface | PC-KOK1 (optional) |
Info on Combi UPS series
General Data
- Rated output voltage 24 Vdc
- Protection index IP 20
- Ambient temperature -25 °C to +70 °C
- Recommended battery modules 1.2 - 12 Ah
- Rated output current 5 A
- Rated input voltage 100 - 240 Vac
Benefits
- Reliable signalling when there is low remaining life expectancy of connected battery modules
- 3 years warranty
- Interface to visualise and adjust relevant data
- Reliable supply of industrial PC's
- Combined power supply with charging and controlling unit
- Fast tripping of conventional circuit breakers
- Battery modules get detected automatically
- Extended life expectancy through temperature controlled battery management
