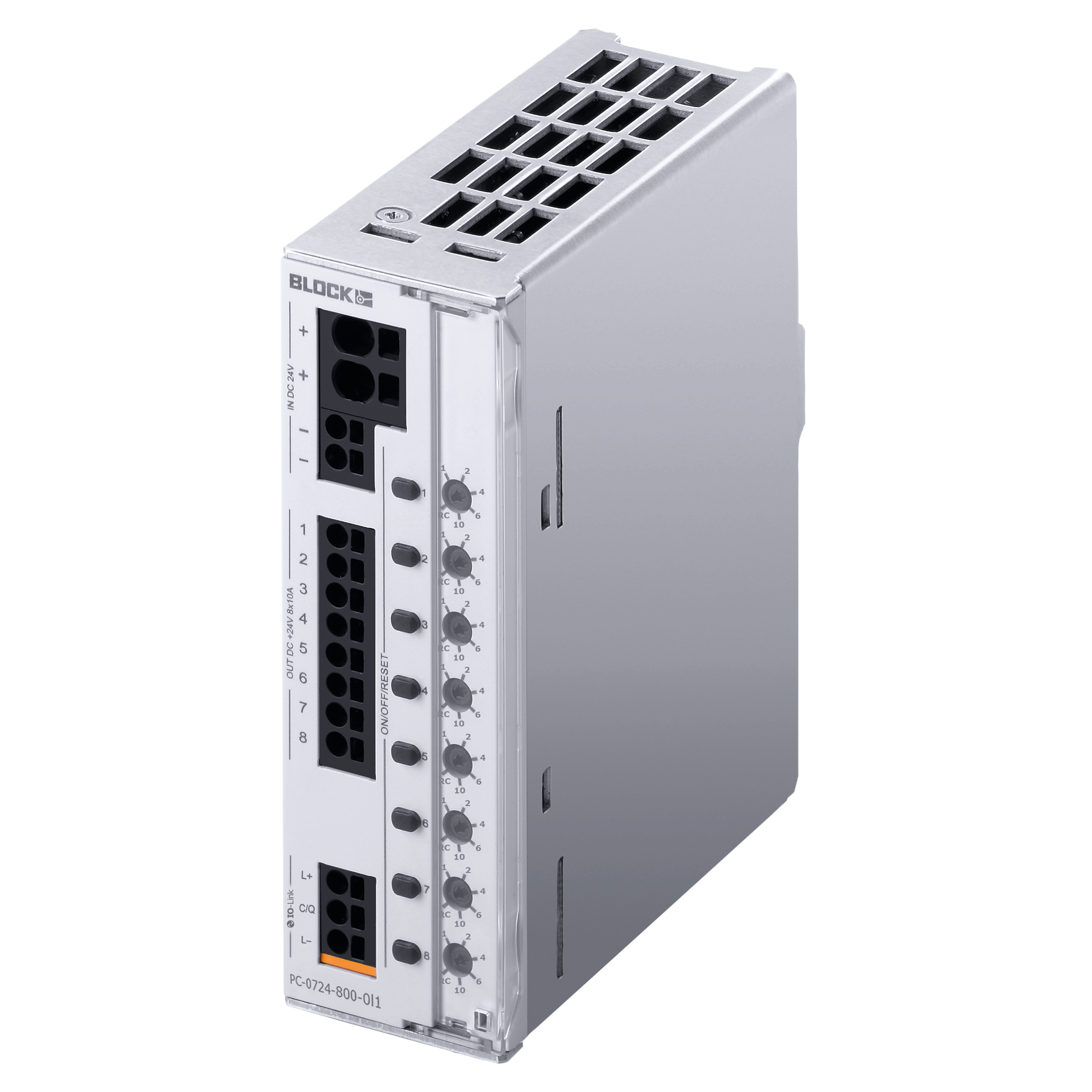

8-Channel circuit breaker

PC-0724-800-0I1

Characteristics

Benefits

 Adjustable tripping current for each output channel via current selector switch

 Ability to turn-on high load capacitance at each channel

 Sequential and load-dependent switching-on of channels

 Comprehensive single-channel-diagnostics and remote switching on/off of each output channel via 2-wire-interface, potential-free signal output or IO-Link

 LED signalisation and remote request for each output channel

 Group alarm contact

 3 years warranty

Product Search
Product 8-Channel circuit breaker
Order number PC-0724-800-0I1
Input
Rated input voltage 24 Vdc
Input voltage range 18 Vdc to 30 Vdc
Max. continuous current of the module 70 A
Max. continuous current feed terminal (+) 40 A
Überspannungsschutz Suppressordioden
Max. ripple of the feeding input voltage 3 %
Switch-on threshold 20.00 V
Output
Rated output voltage 24 Vdc
Rated Output Current 10 A
Rated Output Current Adjustable 1,2,4,6,10
Rated Output Current per Output Channel 10.0 A
Output voltage range 24 Vdc
Number of Output Channels 8
Switch-off threshold 18 V
Max. voltage drop between input and output 200 mV
Max. power loss 20 W @ 8 x 10 A
Max. waiting time after switching off an output after an overload (thermal relaxation) 20 s
Idle current @ 24 V 55 mA
Max. feedback resistance 35 Vdc
Power losses in stand-by mode 1.32 W
Efficiency 99 %
Parallel connection of outputs Not allowed
Series connection of outputs Not allowed
Release Characteristics Thermomagnetic characteristic
Signaling
Signal output S2 C/Q: IO-LINK C/Q (BK; Communication)
Signal output S3 L-: IO-LINK L- (BU; 0 Vdc)
Status display Green, yellow, red LED
Enviroment
Climate class according to EN 60721 3K3
Ambient temperature -25 °C to 70 °C / -13 °F to 158 °F
Storage Temperature -25 °C to 85 °C / -13 °F to 185 °F
Humidity without condensation 5 % to 96 %
Cooling type natural convection
Required minimum distance (side) 0 mm
Required minimum distance (top/bottom) 40 mm
Protection and Safety
Degree of pollution 2
Protection class according to EN 61140 III, without PE connection
Safety extra low voltage (SELV/PELV) IEC 60364-4-41 (DIN VDE 0100-410)
Size and Weight
Width 42 mm / 1.65 in
Height 127 mm / 5 in
Depth 116.5 mm / 4.59 in
Depth incl. DIN TH35 124 mm / 4.88 in
Weight 0.47 kg / 1.04 lbs
