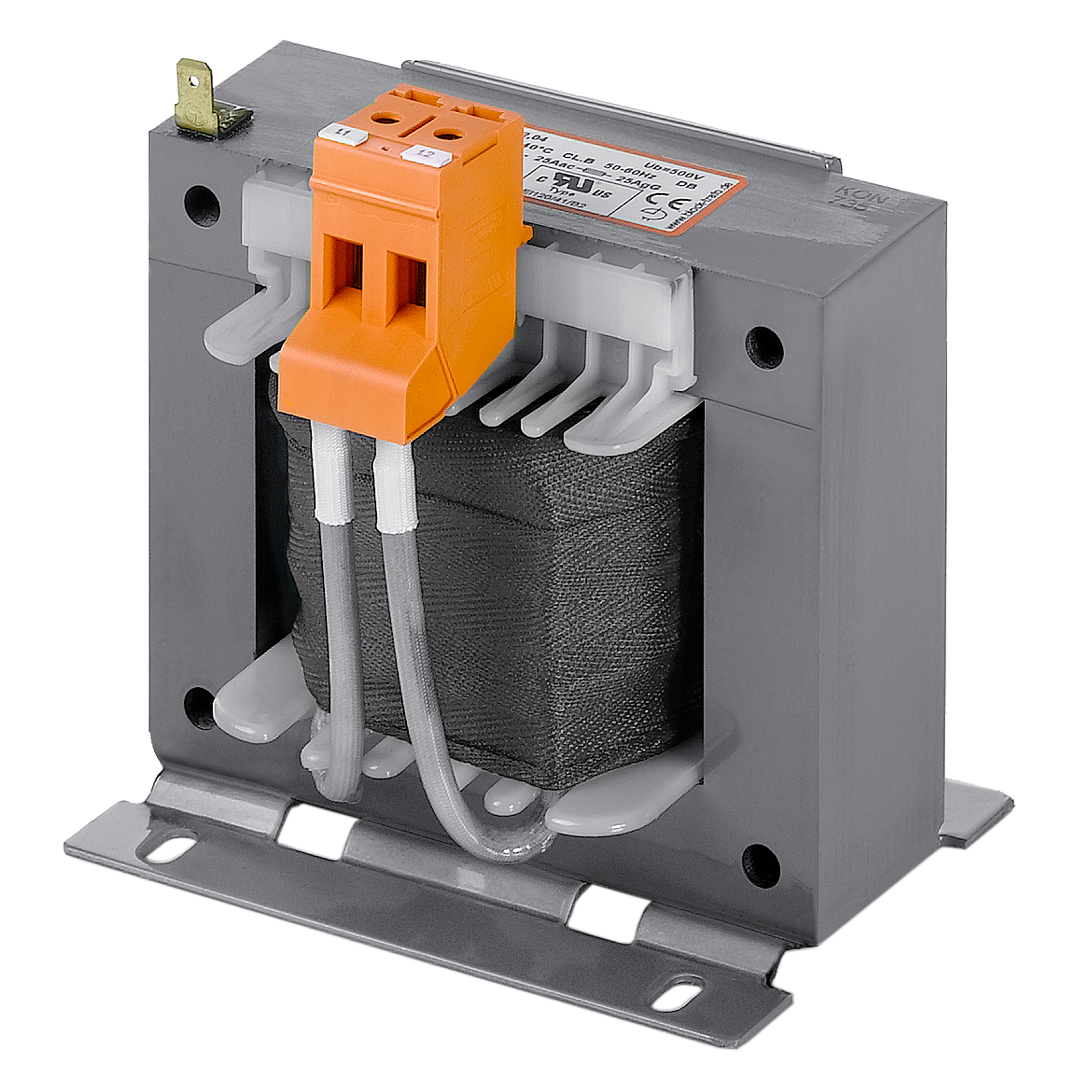

Line reactor
NKE 10/5,10
Characteristics
Benefits
› Use as line reactor, commutating reactor or PFC reactor
› Power harmonic damping
› Starting current limitation
› Increases the service life of consumers
› Low ripple
› Very good corrosion protection and low noise thanks to vacuum impregnation
› Bridging voltage dips
› Peak current limitation
| Product (Headline_Detailseite) | Line reactor |
| Order number (PF_Teilenummer) | NKE 10/5,10 |
| Series (PF_Baureihe) | NKE |
| Inductance (PF_Drossel_Phasen_Induktivitaet) | 5.1 mH |
| Rated current (PF_Drossel_Phasen_Strom) | 10 Aac |
| Linear current (PF_Drossel_Phasen_Linearitaetsstrom) | 15 Aac |
| Rated voltage range (PF_Bemessungsspannungsbereich) | 0 V to 400 V |
| Rated voltage (PF_Bemessungsspannung) | 400 V |
| Phases (PF_Phasen) | 1 |
| Frequency range (PF_Frequenzbereich) | 50 Hz to 60 Hz |
| Short circuit voltage (PF_Drossel_Kurzschlussspannung) | 4% @ 400 V |
| Motor or converter power (PF_Motor_bzw_Umrichterleistung) | 2.5 kW / 3.35 HP |
| EN Insulation class (PF_EN_Isolierstoffklasse) | B (130°C) |
| UL Insulation class (PF_UL_Isolierstoffklasse) | class 130 |
| Duty Cycle (PF_Einschaltdauer) | 100 % |
| Power loss (PF_Verlustleistung_W) | 13.50 W |
| Wire material (PF_Leitermaterial) | Copper |
General
| Duty Cycle (PF_Einschaltdauer) | 100 % |
| Cooling type (PF_Kuehlungsart) | AN |
| Switching group (PF_Schaltgruppe) | I0 |
Environment
| Ambient temperature (PF_Umgebungstemperatur) | -10 °C to 40 °C / 14 °F to 104 °F |
| Max. installation height (PF_max_Aufstellhoehe_m) | 100 m / 328 ft |
Protection and Safety
| Protection type (PF_Schutzart) | IP00 |
| Protection class (prepared) (PF_Schutzklasse) | I |
| Degree of contamination (PF_Verschmutzungsgrad) | 2 |
Electrical Connections
| Input terminal (PF_Anschluss_Eingang) | Screw terminal |
| Output terminal (PF_Anschluss_Ausgang) | Screw terminal |
| Terminal PE (PF_Anschluss_PE) | Plug-in connection |
Size and Weight
| Width (PF_Breite_mm) | 84 mm / 3.31 in |
| Height (PF_Hoehe_mm) | 96 mm / 3.78 in |
| Depth (PF_Tiefe_mm) | 80 mm / 3.15 in |
| Weight (PF_Gewicht_kg) | 1.36 kg / 2.998 lbs |
| Low Voltage Directive | EN 61558-2-20 |
| RoHS compliant | EN IEC 63000 |
| Approval cURus - Recognized | UL 5085-1/-2; CSA 22.2 |
