Sine filter, three-phase
MF 400/60 - Discontinued items – not for new applications
| Product | Sine filter, three-phase |
| Order number | MF 400/60 |
| Series | MF |
| Inductance | 3x 0 mH |
| Rated current | 3x 0 Aac |
| Linear current | 3x 0 Aac |
| Rated voltage range | 0 V to 400 V |
| Phases | 3 |
| Frequency range | to 150 Hz |
| Switching frequency range | to 10 kHz |
| EN Insulation class | A (105°C) |
| UL Insulation class | class 105 |
General
| Cooling type | AN |
| Switching group |
Environment
| Ambient temperature | -10 °C to 40 °C / 14 °F to 104 °F |
Protection and Safety
| Protection type | IP20 |
| Protection class (prepared) | I |
| Degree of contamination | 2 |
| Low Voltage Directive | EN 61558-2-20 |
| RoHS compliant | EN IEC 63000 |

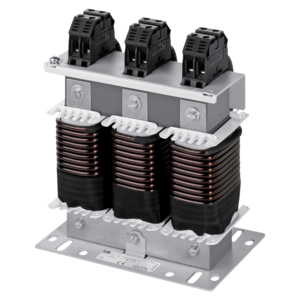

MR3 400/61
Motor reactor, three-phase
| Rated voltage range | Rated voltage | Frequency range | Rated current | Inductance |
|---|---|---|---|---|
0 V to 690 V |
400 V |
0 Hz to 50 Hz |
61 A |
0.1 mH |
