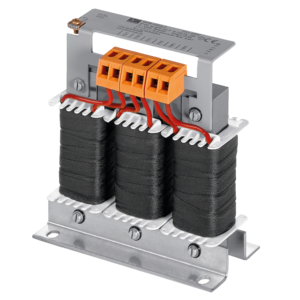

Line reactor, three-phase
LR3 60-3/20 - Only available in USA
Characteristics
Benefits
› Ensuring the short-circuit voltage of 3 - 5 % to the mains
› Power harmonic damping
› Starting current limitation
› Increases the service life of consumers
› Low ripple
› Bridging voltage dips
› Peak current limitation
› Integrated lifting rings
› Multifunctional fixing rails
› Use as line reactor, commutating reactor or PFC reactor
› Very good corrosion protection and low noise due to vacuum impregnation
| Product (Headline_Detailseite) | Line reactor, three-phase |
| Order number (PF_Teilenummer) | LR3 60-3/20 |
| Series (PF_Baureihe) | LR3 |
| Inductance (PF_Drossel_Phasen_Induktivitaet) | 3x 1.47 mH |
| Rated current (PF_Drossel_Phasen_Strom) | 3x 20 Aac |
| Linear current (PF_Drossel_Phasen_Linearitaetsstrom) | 3x 0 Aac |
| Rated voltage range (PF_Bemessungsspannungsbereich) | 690 V |
| Phases (PF_Phasen) | 3 |
| Frequency range (PF_Frequenzbereich) | 50 Hz to 60 Hz |
| EN Insulation class (PF_EN_Isolierstoffklasse) | F (155°C) |
| UL Insulation class (PF_UL_Isolierstoffklasse) | class 155 |
| Wire material (PF_Leitermaterial) | Copper |
General
| Cooling type (PF_Kuehlungsart) | AN |
Environment
| Ambient temperature (PF_Umgebungstemperatur) | -10 °C to 40 °C / 14 °F to 104 °F |
Size and Weight
| Weight (PF_Gewicht_kg) | 3.7 kg / 8.157 lbs |
| Low Voltage Directive | EN 61558-2-20 |
