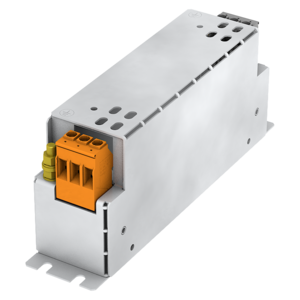

Radio interference suppression filter for IT Network, three-phase
HLD 810-500/180
Characteristics
Benefits
› For enhanced requirements
› Single-stage filter concept
› Efficient filter effect against line-bound interference emissions
› Increase in the interference immunity of the connected consumer
| Product | Radio interference suppression filter for IT Network, three-phase |
| Order number | HLD 810-500/180 |
| Series | HLD 810 |
| Inductance | 3x 0.406 mH |
| Rated current | 3x 180 Aac |
| Rated voltage range | 0 V to 520 V |
| Rated voltage | 480 V |
| Phases | 3 |
| Frequency range | 50 Hz to 60 Hz |
| Motor or converter power | 110 kW / 147.51 HP |
| EN Insulation class | A (105°C) |
| UL Insulation class | class 105 |
| Duty Cycle | 100 % |
| Power loss | 150.00 W |
| Wire material | Copper |
General
| Duty Cycle | 100 % |
| Cooling type | AN |
Environment
| Ambient temperature | -25 °C to 50 °C / -13 °F to 122 °F |
| Max. installation height | 1,000 m / 3,281 ft |
Protection and Safety
| Protection type | IP20 |
| Protection class (prepared) | I |
| Degree of contamination | 2 |
Electrical Connections
| Input terminal | Screw terminal |
| Output terminal | Screw terminal |
| Terminal PE | Bolt connection |
Size and Weight
| Width | 130 mm / 5.12 in |
| Height | 181 mm / 7.13 in |
| Depth | 380 mm / 14.96 in |
| Weight | 9.8 kg / 21.605 lbs |
| RoHS compliant | EN IEC 63000 |
| Approval cURus - Recognized | UL 1283; CSA 22.2 |
