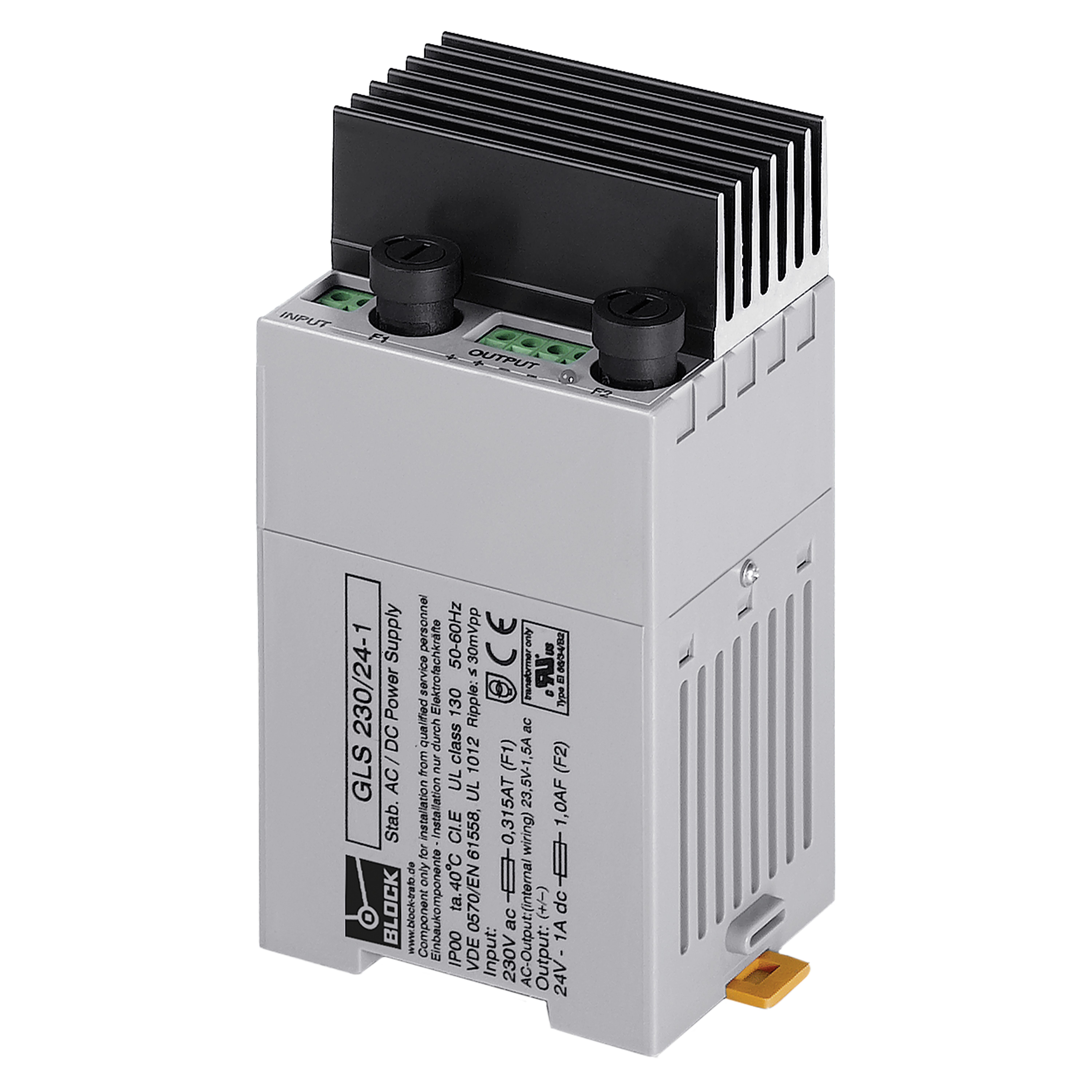

Linear stabilized DC power supply
GLS 230/24-1 - Discontinued items - no longer available
Characteristics
Benefits
› Accurate output current regulation
› Short settling time
› Low ripple factor
› Input and output protection
| Product | Linear stabilized DC power supply |
| Order number | GLS 230/24-1 |
| Duty Cycle | 100 % |
| EN insulation class | B (130°C) |
| Frequency range | 50 Hz to 60 Hz |
| Power | 24 VA |
| Wire material | Copper |
| UL Insulation class | class 130 |
| Efficiency | 50 % |
General
| Short circuit proof | conditionally short-circuit proof |
| Cooling type | AN |
| Switching group | Ii0 |
Environment
| Max. installation height | 2,000 m / 6,562 ft |
| Ambient temperature | -20 °C to 40 °C / -4 °F to 104 °F |
Protection and Safety
| Protection type | IP 00 |
| Protection class (prepared) | II |
| Degree of contamination | 1 |
General
| TS35 rail mounting possible | ja |
Electrical Connections
| Terminal Pri | Screw terminal |
| Terminal Sec | Screw terminal |
Size and Weight
| Width | 62.5 mm / 2.46 in |
| Height | 135 mm / 5.31 in |
| Depth | 75 mm / 2.95 in |
| Weight | 1.25 kg / 2.76 lbs |
