Unregulated DC power supply

GLC 230/24-3 - Discontinued types – not for new designs

Download data sheet
Image of BLOCK Item: GLC 230/24-3 - Discontinued types – not for new designs Image of BLOCK Item: GLC 230/24-3 - Discontinued types – not for new designs

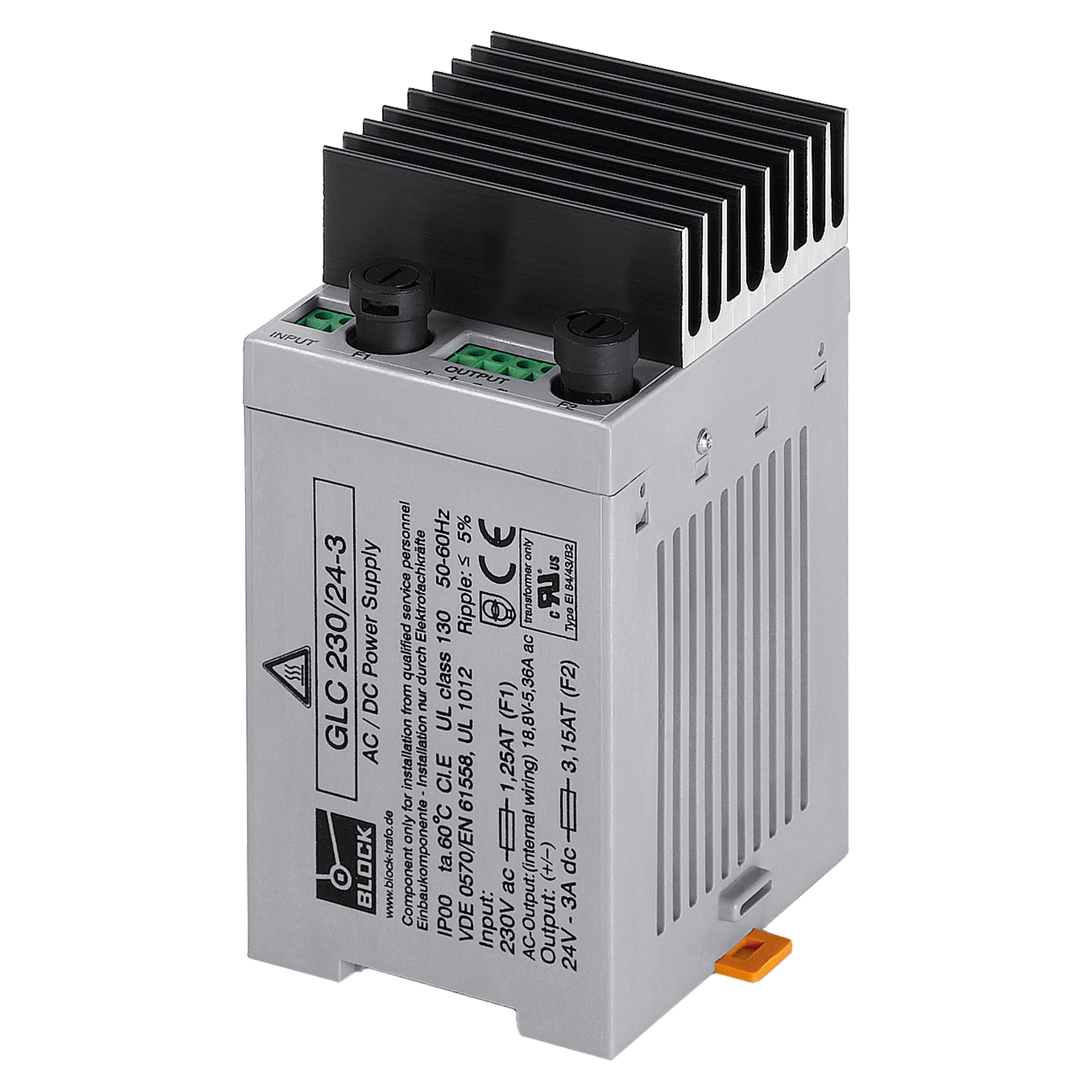

Picture shows GLC 230/24-3
Picture Objective

Characteristics

Benefits

› Fuse protection in the input and a fuse protection for the output

› Separate windings

› Capacitor switching at the output

› Double screw terminals on the output

› DC OK signalling via LEDs

› Panel installation on mounting rails

Product Search
Product Unregulated DC power supply
Order number GLC 230/24-3
Series GLC
Duty Cycle 100 %
EN Insulation class B (130°C)
Frequency range 50 Hz to 60 Hz
Power 66 VA
Wire material Copper
UL Insulation class class 130
General
Short circuit proof conditionally short-circuit proof
Cooling type AN
Switching group Ii0
Environment
Max. installation height 2,000 m / 6,562 ft
Ambient temperature -20 °C to 60 °C / -4 °F to 140 °F
Protection and Safety
Protection type IP00
Protection class (prepared) II
Degree of contamination 1
General
TS35 rail mounting possible ja
Electrical Connections
Output terminal Screw terminal
Input terminal Screw terminal
Size and Weight
Width 85 mm / 3.35 in
Height 138 mm / 5.43 in
Depth 90 mm / 3.54 in
Weight 2.3 kg / 5.071 lbs
