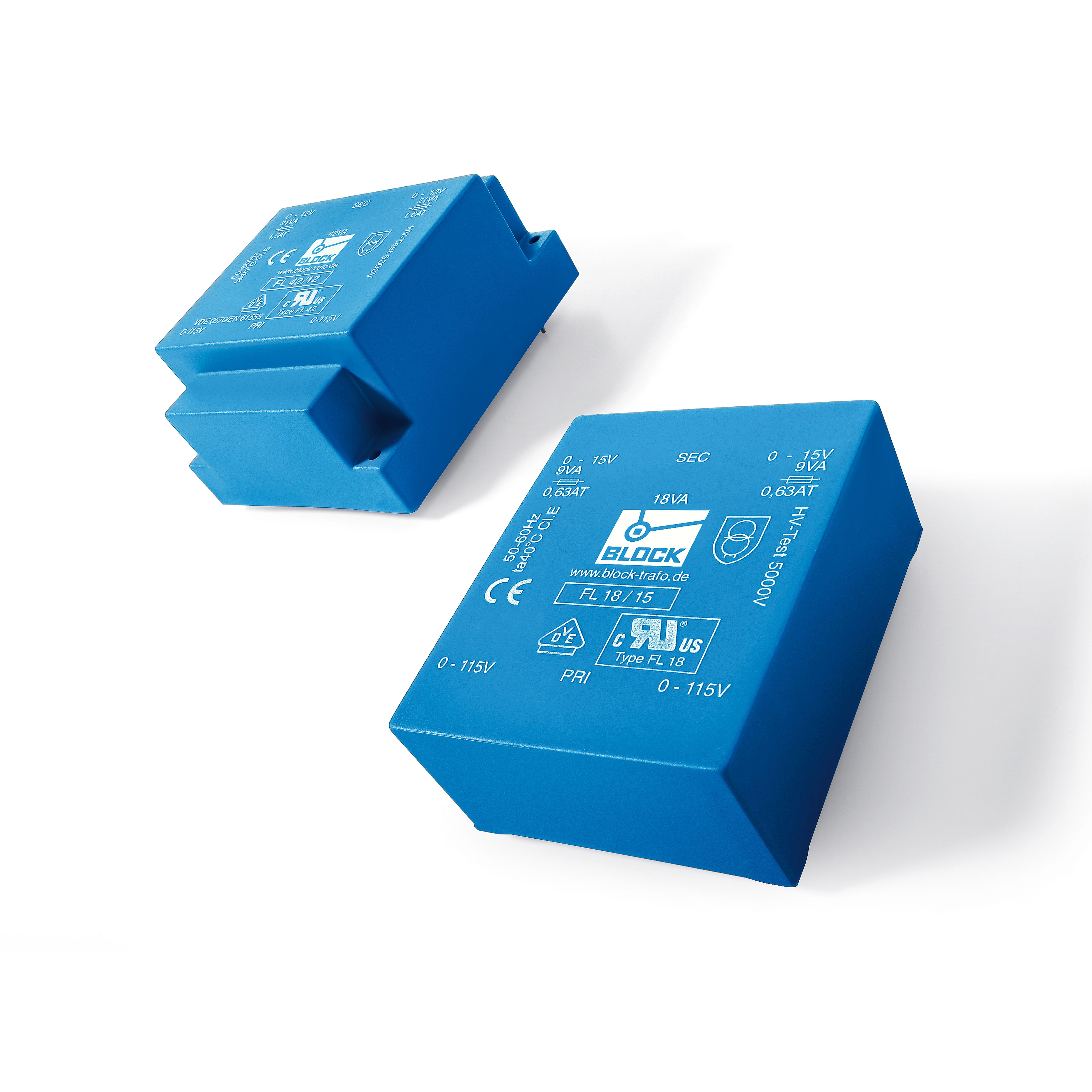

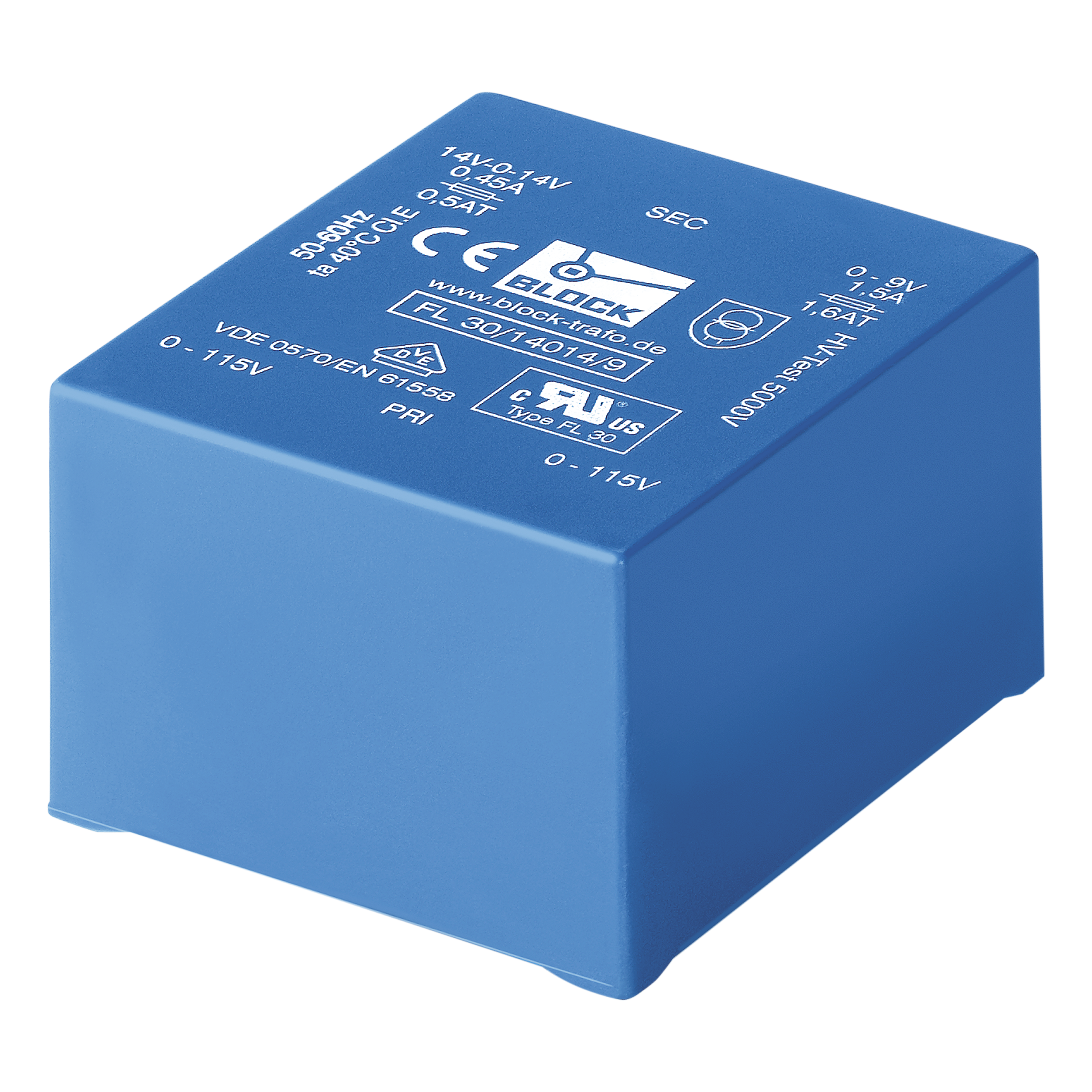

Low profile transformer, safety isolating transformer

FL 2/15

Characteristics

Benefits

 Minimum size at high output

 Low height

 Double input voltage for series or parallel connection

 Permanent corrosion protection, high insulation value and maximum electrical reliability thanks to XtraDenseFill resin encapsulation

 Coil shell in 2-chamber technology

 Self-extinguishing potting material

Product Low profile transformer, safety isolating transformer
Order number FL 2/15
Power 2 VA
Input 2 x 115 V
Output 2 x 15 V • 0.067 Aac
Frequency range 50 Hz to 60 Hz
No-Load Losses 0.5 W
Short circuit voltage uk 29.00 %
EN insulation class B (130°C)
UL Insulation class class 105
Duty Cycle 100 %
Wire material Copper
Efficiency 66 %
General
Short circuit proof not short-circuit proof
Switching group IIii0
Cooling type AN
Enviroment
Ambient temperature -20 °C to 40 °C / -4 °F to 104 °F
Max. installation height 2,000 m / 6,562 ft
Protection and safety
Protection type IP 00
Protection class (prepared) I
Overvoltage category III
Degree of contamination 1
Electrical Connections
Terminal Pri Pin
Terminal Sec Pin
Size and Weight
Width 44 mm / 1.73 in
Height 17.6 mm / 0.69 in
Depth 53 mm / 2.09 in
Weight 0.12 kg / 0.26 lbs
Low Voltage Directive EN 61558-2-6
RoHS compliant EN IEC 63000
Approval cURus - Recognized UL 5085-1/-2; CSA 22.2
VDE Approval

VDE 0570-2-x (DIN EN 61558-2-x)
