1-Channel circuit-breaker thermomagnetic with fast tripping characteristics, communicative

EB-1724-080-0F

Characteristics

Benefits

 Additional load outputs through output expanders mountable sidewise

 Automatic channel assignment

 Internal fuse adapted to the tripping current

Product Search
Product 1-Channel circuit-breaker thermomagnetic with fast tripping characteristics, communicative
Order number EB-1724-080-0F
Input
Rated input voltage 24 Vdc
Input voltage range 18 Vdc to 30 Vdc
Max. continuous current of the module 8 A
Max. continuous current feed terminal (+) 40 A
Überspannungsschutz Suppressordioden
Max. ripple of the feeding input voltage 3 %
Switch-on threshold 17.50 V
Output
Rated output voltage 24 Vdc
Rated Output Current 8 A
Rated Output Current per Output Channel 8 A
Output voltage range 24 Vdc
Number of Output Channels 1
Switch-off threshold 16.7 V
Max. waiting time after switching off an output after an overload (thermal relaxation) 5 s
Max. feedback resistance 35 Vdc
Power losses in stand-by mode 0.30 W
Parallel connection of outputs Nicht erlaubt
Series connection of outputs Nicht erlaubt
Release Characteristics Thermomagnetic characteristic
Signaling
Signal output Output status, short-circuit proof, DC 24 V, max. 25 mA, high = channel on, low = channel off, error
Signal input Reset: high (min. 500 ms) > low, (high = 15 - 30 Vdc, low = 0 - 5 Vdc)
Status display Green, yellow, red LED
Environment
Ambient temperature -25 °C to 70 °C / -13 °F to 158 °F
Storage Temperature -25 °C to 85 °C / -13 °F to 185 °F
Humidity without condensation 5 % to 96 %
Cooling type natural convection
Required minimum distance (side) 0 mm
Required minimum distance (top/bottom) 30 mm
Protection and Safety
Degree of pollution 2
Size and Weight
Width 12 mm / 0.47 in
Height 99 mm / 3.9 in
Depth 60 mm / 2.36 in
Depth incl. DIN TH35 64.5 mm / 2.54 in
Weight 0.04 kg / 0.09 lbs
Image of BLOCK Item: EB-COV

EB-COV

2-pole physical isolation
Image of BLOCK Item: EB-PMM

EB-PMM

2-pole physical isolation
Image of BLOCK Item: EB-IO-LINK

EB-IO-LINK

2-pole physical isolation
Image of BLOCK Item: EB-BAR41

EB-BAR41

Accessories for product line EasyB
Image of BLOCK Item: EB-GND4

EB-GND4

2-pole physical isolation
Image of BLOCK Item: EB-MODBUS-RTU

EB-MODBUS-RTU

2-pole physical isolation

This could also be of interest to you

PCC-0124-100-2
Single-phase, primary switched mode power supply
Product details

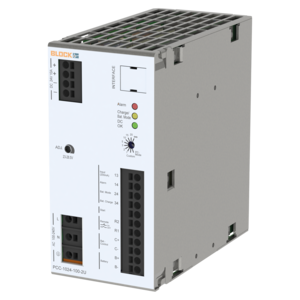

PCC-1024-100-2U
