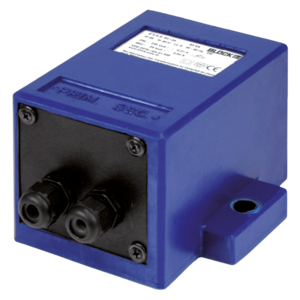

ACT 63
Safety isolating transformer ACT
Version ACT 63
Rated input voltage
230 Vac
Rated output voltage
24 Vac
Rated Power
63 VA
Technical data for ACT 63
| Input | |
|---|---|
| Rated input voltage | 230 Vac |
| Rated frequency | 50 - 60 Hz |
| Output | |
|---|---|
| Rated output voltage | 24 Vac |
| Rated Power | 63 VA |
| Environment | |
|---|---|
| Ambient temperature max. | 25 °C |
| Type of cooling | self-cooling |
| Safety and protection | |
|---|---|
| Type | Resin encapsulated transformer |
| Insulation class | B |
| Protection index | IP 00 |
| Safety class (prepared) | II |
| Short circuit strength | non-inherently short-circuit proof |
| Test voltage | 3750 Vac, 50 Hz |
| Terminal and mounting | |
|---|---|
| Fixing method | Panel installation on mounting rails |
| Terminals | Screw-type terminal |
| Measures and weights | |
|---|---|
| Width | 94 mm |
| Height | 63 mm |
| Depth | 159 mm |
| Weight | 1.93 kg |

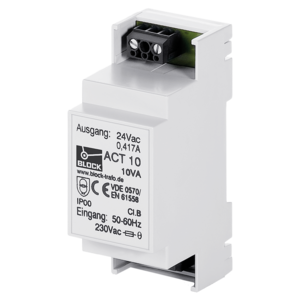

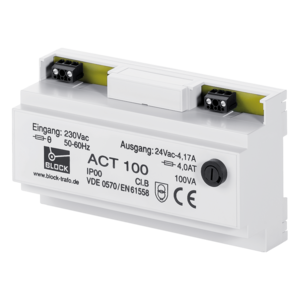

Info on ACT series
General Data
- Maximum ambient temperature 25 °C
- Degree of protection IP 00
- Rated input voltage 230 Vac
- Rated output voltage 24 Vac
- Insulation class B
- Rated power 10 - 100 VA
Benefits
- Robust plastic enclosure for rail mounting, e.g. in consumer units or meter mounting boards
- Permanent corrosion protection, high insulation value and maximum electrical reliability thanks to XtraDenseFill resin encapsulation
- Integrated short-circuit and overload protection thanks to temperature fuse in the input and fuse in the output (ACT 10 only temperature fuse)
