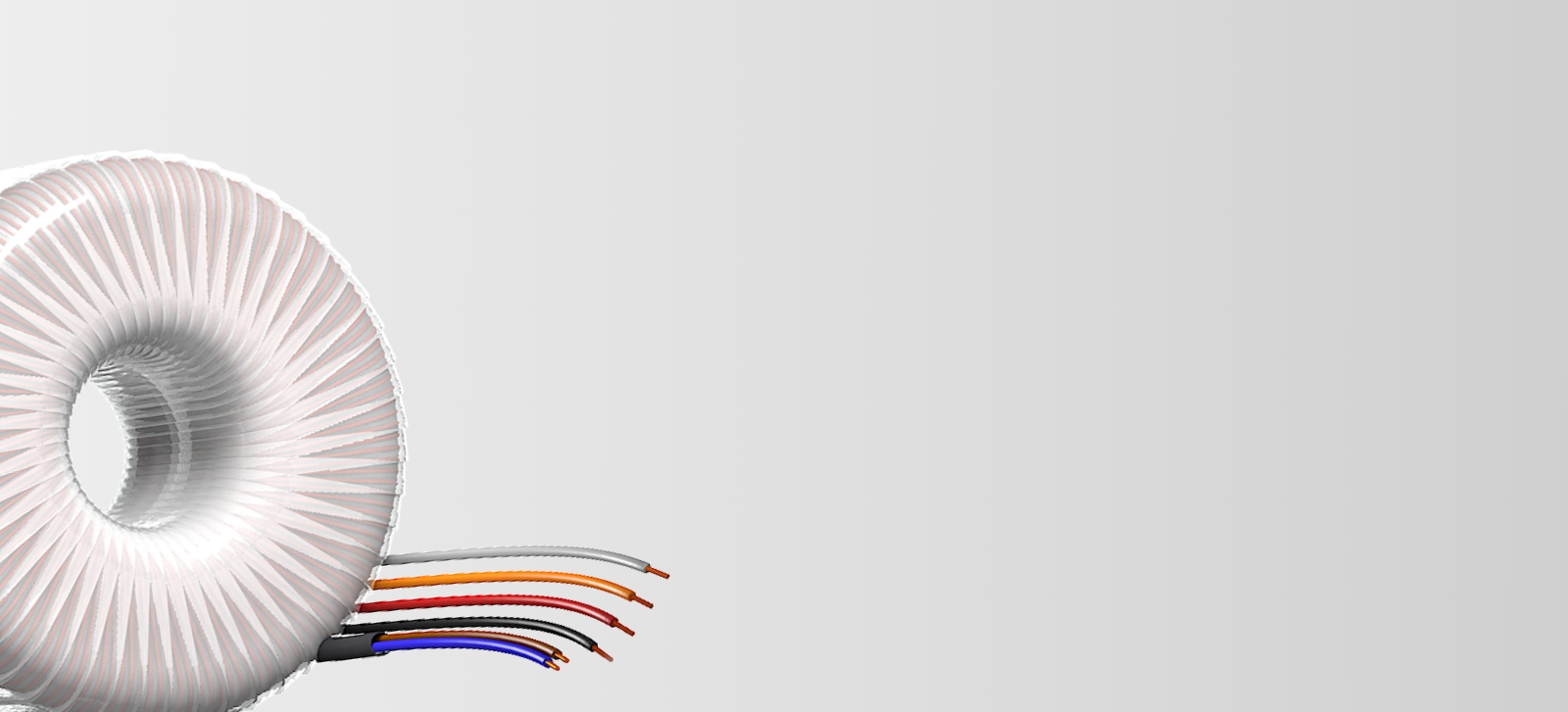

Toroidal transformers only produce minimal leakage fields thanks to their shape. This means that the surrounding components remain free from interference. The transformers feature a very low design height and offer a crucial advantage as power, safety or isolating transformers in difficult installation conditions. With a space-saving wire connection, toroidal transformers can be soldered directly onto a PCB. BLOCK’s standard range includes power outputs of between 0.35 VA and 3,000 VA.
Product search for Toroidal transformers
Equipment type
Output power
- 100 VA (10)
- 1000 VA (2)
- 120 VA (11)
- 1200 VA (1)
- 15 VA (8)
- 160 VA (10)
- 1600 VA (1)
- 20 VA (8)
- 200 VA (8)
- 2000 VA (1)
- 225 VA (9)
- 250 VA (8)
- 30 VA (10)
- 300 VA (4)
- 3000 VA (1)
- 330 VA (2)
- 40 VA (10)
- 400 VA (7)
- 50 VA (8)
- 500 VA (6)
- 60 VA (11)
- 625 VA (3)
- 80 VA (8)
- 800 VA (2)
Input voltage
Output voltage
149 Versions of 2 products
Or do you have different requirements?
We can help you!
RKD
Toroidal safety isolating and isolating transformer
, PRI 2 x 115 Vac, SEC 2 x 6 – 2 x 115 Vac, 15 – 3,000 VA
| Version | Rated input voltage | Rated output voltage | Power | |
|---|---|---|---|---|
| RKD 15/2x6 | 2 x 115 Vac | 2 x 6 Vac | 15 VA | |
| RKD 15/2x9 | 2 x 115 Vac | 2 x 9 Vac | 15 VA | |
| RKD 15/2x12 | 2 x 115 Vac | 2 x 12 Vac | 15 VA | |
| RKD 15/2x15 | 2 x 115 Vac | 2 x 15 Vac | 15 VA | |
| RKD 15/2x18 | 2 x 115 Vac | 2 x 18 Vac | 15 VA | |
| RKD 20/2x12 | 2 x 115 Vac | 2 x 12 Vac | 20 VA | |
| RKD 20/2x15 | 2 x 115 Vac | 2 x 15 Vac | 20 VA | |
| RKD 20/2x18 | 2 x 115 Vac | 2 x 18 Vac | 20 VA | |
| RKD 20/2x24 | 2 x 115 Vac | 2 x 24 Vac | 20 VA | |
| RKD 30/2x6 | 2 x 115 Vac | 2 x 6 Vac | 30 VA | |
| RKD 30/2x9 | 2 x 115 Vac | 2 x 9 Vac | 30 VA | |
| RKD 30/2x12 | 2 x 115 Vac | 2 x 12 Vac | 30 VA | |
| RKD 30/2x15 | 2 x 115 Vac | 2 x 15 Vac | 30 VA | |
| RKD 30/2x18 | 2 x 115 Vac | 2 x 18 Vac | 30 VA | |
| RKD 30/2x24 | 2 x 115 Vac | 2 x 24 Vac | 30 VA | |
| RKD 40/2x6 | 2 x 115 Vac | 2 x 6 Vac | 40 VA | |
| RKD 40/2x9 | 2 x 115 Vac | 2 x 9 Vac | 40 VA | |
| RKD 40/2x12 | 2 x 115 Vac | 2 x 12 Vac | 40 VA | |
| RKD 40/2x15 | 2 x 115 Vac | 2 x 15 Vac | 40 VA | |
| RKD 40/2x18 | 2 x 115 Vac | 2 x 18 Vac | 40 VA | |
| RKD 40/2x24 | 2 x 115 Vac | 2 x 24 Vac | 40 VA | |
| RKD 50/2x12 | 2 x 115 Vac | 2 x 12 Vac | 50 VA | |
| RKD 50/2x15 | 2 x 115 Vac | 2 x 15 Vac | 50 VA | |
| RKD 50/2x18 | 2 x 115 Vac | 2 x 18 Vac | 50 VA | |
| RKD 50/2x24 | 2 x 115 Vac | 2 x 24 Vac | 50 VA | |
| RKD 60/2x6 | 2 x 115 Vac | 2 x 6 Vac | 60 VA | |
| RKD 60/2x9 | 2 x 115 Vac | 2 x 9 Vac | 60 VA | |
| RKD 60/2x12 | 2 x 115 Vac | 2 x 12 Vac | 60 VA | |
| RKD 60/2x15 | 2 x 115 Vac | 2 x 15 Vac | 60 VA | |
| RKD 60/2x18 | 2 x 115 Vac | 2 x 18 Vac | 60 VA | |
| RKD 60/2x24 | 2 x 115 Vac | 2 x 24 Vac | 60 VA | |
| RKD 60/2x30 | 2 x 115 Vac | 2 x 30 Vac | 60 VA | |
| RKD 80/2x12 | 2 x 115 Vac | 2 x 12 Vac | 80 VA | |
| RKD 80/2x15 | 2 x 115 Vac | 2 x 15 Vac | 80 VA | |
| RKD 80/2x18 | 2 x 115 Vac | 2 x 18 Vac | 80 VA | |
| RKD 80/2x24 | 2 x 115 Vac | 2 x 24 Vac | 80 VA | |
| RKD 100/2x9 | 2 x 115 Vac | 2 x 9 Vac | 100 VA | |
| RKD 100/2x12 | 2 x 115 Vac | 2 x 12 Vac | 100 VA | |
| RKD 100/2x15 | 2 x 115 Vac | 2 x 15 Vac | 100 VA | |
| RKD 100/2x18 | 2 x 115 Vac | 2 x 18 Vac | 100 VA | |
| RKD 100/2x24 | 2 x 115 Vac | 2 x 24 Vac | 100 VA | |
| RKD 100/2x30 | 2 x 115 Vac | 2 x 30 Vac | 100 VA | |
| RKD 120/2x9 | 2 x 115 Vac | 2 x 9 Vac | 120 VA | |
| RKD 120/2x12 | 2 x 115 Vac | 2 x 12 Vac | 120 VA | |
| RKD 120/2x15 | 2 x 115 Vac | 2 x 15 Vac | 120 VA | |
| RKD 120/2x18 | 2 x 115 Vac | 2 x 18 Vac | 120 VA | |
| RKD 120/2x24 | 2 x 115 Vac | 2 x 24 Vac | 120 VA | |
| RKD 120/2x30 | 2 x 115 Vac | 2 x 30 Vac | 120 VA | |
| RKD 160/2x12 | 2 x 115 Vac | 2 x 12 Vac | 160 VA | |
| RKD 160/2x15 | 2 x 115 Vac | 2 x 15 Vac | 160 VA | |
| RKD 160/2x18 | 2 x 115 Vac | 2 x 18 Vac | 160 VA | |
| RKD 160/2x24 | 2 x 115 Vac | 2 x 24 Vac | 160 VA | |
| RKD 160/2x30 | 2 x 115 Vac | 2 x 30 Vac | 160 VA | |
| RKD 160/2x35 | 2 x 115 Vac | 2 x 35 Vac | 160 VA | |
| RKD 200/2x12 | 2 x 115 Vac | 2 x 12 Vac | 200 VA | |
| RKD 200/2x15 | 2 x 115 Vac | 2 x 15 Vac | 200 VA | |
| RKD 200/2x18 | 2 x 115 Vac | 2 x 18 Vac | 200 VA | |
| RKD 200/2x24 | 2 x 115 Vac | 2 x 24 Vac | 200 VA | |
| RKD 225/2x12 | 2 x 115 Vac | 2 x 12 Vac | 225 VA | |
| RKD 225/2x15 | 2 x 115 Vac | 2 x 15 Vac | 225 VA | |
| RKD 225/2x18 | 2 x 115 Vac | 2 x 18 Vac | 225 VA | |
| RKD 225/2x24 | 2 x 115 Vac | 2 x 24 Vac | 225 VA | |
| RKD 225/2x30 | 2 x 115 Vac | 2 x 30 Vac | 225 VA | |
| RKD 250/2x12 | 2 x 115 Vac | 2 x 12 Vac | 250 VA | |
| RKD 250/2x18 | 2 x 115 Vac | 2 x 18 Vac | 250 VA | |
| RKD 250/2x24 | 2 x 115 Vac | 2 x 24 Vac | 250 VA | |
| RKD 250/2x30 | 2 x 115 Vac | 2 x 30 Vac | 250 VA | |
| RKD 300/2x12 | 2 x 115 Vac | 2 x 12 Vac | 300 VA | |
| RKD 300/2x18 | 2 x 115 Vac | 2 x 18 Vac | 300 VA | |
| RKD 300/2x24 | 2 x 115 Vac | 2 x 24 Vac | 300 VA | |
| RKD 330/2x18 | 2 x 115 Vac | 2 x 18 Vac | 330 VA | |
| RKD 400/2x18 | 2 x 115 Vac | 2 x 18 Vac | 400 VA | |
| RKD 400/2x24 | 2 x 115 Vac | 2 x 24 Vac | 400 VA | |
| RKD 400/2x30 | 2 x 115 Vac | 2 x 30 Vac | 400 VA | |
| RKD 500/2x24 | 2 x 115 Vac | 2 x 24 Vac | 500 VA | |
| RKD 500/2x30 | 2 x 115 Vac | 2 x 30 Vac | 500 VA | |
| RKD 500/2x35 | 2 x 115 Vac | 2 x 35 Vac | 500 VA | |
| RKD 625/2x30 | 2 x 115 Vac | 2 x 30 Vac | 625 VA | |
| RKD 625/2x115 | 2 x 115 Vac | 2 x 115 Vac | 625 VA | |
| RKD 800/2x40 | 2 x 115 Vac | 2 x 40 Vac | 800 VA | |
| RKD 800/2x115 | 2 x 115 Vac | 2 x 115 Vac | 800 VA | |
| RKD 1000/2x50 | 2 x 115 Vac | 2 x 50 Vac | 1,000 VA | |
| RKD 1000/2x115 | 2 x 115 Vac | 2 x 115 Vac | 1,000 VA | |
| RKD 1200/2x115 | 2 x 115 Vac | 2 x 115 Vac | 1,200 VA | |
| RKD 1600/2x115 | 2 x 115 Vac | 2 x 115 Vac | 1,600 VA | |
| RKD 2000/2x115 | 2 x 115 Vac | 2 x 115 Vac | 2,000 VA | |
| RKD 3000/2x115 | 2 x 115 Vac | 2 x 115 Vac | 3,000 VA |
Or do you have different requirements?
We can help you!
RTE
Toroidal safety isolating and isolating transformer
, PRI 230 Vac, SEC 2 x 12 – 2 x 35 Vac, 15 – 625 VA
| Version | Rated input voltage | Rated output voltage | Power | |
|---|---|---|---|---|
| RTE 15/2x12 | 230 Vac | 2 x 12 Vac | 15 VA | |
| RTE 15/2x15 | 230 Vac | 2 x 15 Vac | 15 VA | |
| RTE 15/2x18 | 230 Vac | 2 x 18 Vac | 15 VA | |
| RTE 20/2x12 | 230 Vac | 2 x 12 Vac | 20 VA | |
| RTE 20/2x15 | 230 Vac | 2 x 15 Vac | 20 VA | |
| RTE 20/2x18 | 230 Vac | 2 x 18 Vac | 20 VA | |
| RTE 20/2x24 | 230 Vac | 2 x 24 Vac | 20 VA | |
| RTE 30/2x12 | 230 Vac | 2 x 12 Vac | 30 VA | |
| RTE 30/2x15 | 230 Vac | 2 x 15 Vac | 30 VA | |
| RTE 30/2x18 | 230 Vac | 2 x 18 Vac | 30 VA | |
| RTE 30/2x24 | 230 Vac | 2 x 24 Vac | 30 VA | |
| RTE 40/2x12 | 230 Vac | 2 x 12 Vac | 40 VA | |
| RTE 40/2x15 | 230 Vac | 2 x 15 Vac | 40 VA | |
| RTE 40/2x18 | 230 Vac | 2 x 18 Vac | 40 VA | |
| RTE 40/2x24 | 230 Vac | 2 x 24 Vac | 40 VA | |
| RTE 50/2x12 | 230 Vac | 2 x 12 Vac | 50 VA | |
| RTE 50/2x15 | 230 Vac | 2 x 15 Vac | 50 VA | |
| RTE 50/2x18 | 230 Vac | 2 x 18 Vac | 50 VA | |
| RTE 50/2x24 | 230 Vac | 2 x 24 Vac | 50 VA | |
| RTE 60/2x12 | 230 Vac | 2 x 12 Vac | 60 VA | |
| RTE 60/2x15 | 230 Vac | 2 x 15 Vac | 60 VA | |
| RTE 60/2x18 | 230 Vac | 2 x 18 Vac | 60 VA | |
| RTE 60/2x24 | 230 Vac | 2 x 24 Vac | 60 VA | |
| RTE 80/2x12 | 230 Vac | 2 x 12 Vac | 80 VA | |
| RTE 80/2x15 | 230 Vac | 2 x 15 Vac | 80 VA | |
| RTE 80/2x18 | 230 Vac | 2 x 18 Vac | 80 VA | |
| RTE 80/2x24 | 230 Vac | 2 x 24 Vac | 80 VA | |
| RTE 100/2x12 | 230 Vac | 2 x 12 Vac | 100 VA | |
| RTE 100/2x15 | 230 Vac | 2 x 15 Vac | 100 VA | |
| RTE 100/2x18 | 230 Vac | 2 x 18 Vac | 100 VA | |
| RTE 100/2x24 | 230 Vac | 2 x 24 Vac | 100 VA | |
| RTE 120/2x12 | 230 Vac | 2 x 12 Vac | 120 VA | |
| RTE 120/2x15 | 230 Vac | 2 x 15 Vac | 120 VA | |
| RTE 120/2x18 | 230 Vac | 2 x 18 Vac | 120 VA | |
| RTE 120/2x24 | 230 Vac | 2 x 24 Vac | 120 VA | |
| RTE 120/2x30 | 230 Vac | 2 x 30 Vac | 120 VA | |
| RTE 160/2x12 | 230 Vac | 2 x 12 Vac | 160 VA | |
| RTE 160/2x15 | 230 Vac | 2 x 15 Vac | 160 VA | |
| RTE 160/2x18 | 230 Vac | 2 x 18 Vac | 160 VA | |
| RTE 160/2x24 | 230 Vac | 2 x 24 Vac | 160 VA | |
| RTE 200/2x12 | 230 Vac | 2 x 12 Vac | 200 VA | |
| RTE 200/2x15 | 230 Vac | 2 x 15 Vac | 200 VA | |
| RTE 200/2x18 | 230 Vac | 2 x 18 Vac | 200 VA | |
| RTE 200/2x24 | 230 Vac | 2 x 24 Vac | 200 VA | |
| RTE 225/2x12 | 230 Vac | 2 x 12 Vac | 225 VA | |
| RTE 225/2x15 | 230 Vac | 2 x 15 Vac | 225 VA | |
| RTE 225/2x18 | 230 Vac | 2 x 18 Vac | 225 VA | |
| RTE 225/2x24 | 230 Vac | 2 x 24 Vac | 225 VA | |
| RTE 250/2x12 | 230 Vac | 2 x 12 Vac | 250 VA | |
| RTE 250/2x18 | 230 Vac | 2 x 18 Vac | 250 VA | |
| RTE 250/2x24 | 230 Vac | 2 x 24 Vac | 250 VA | |
| RTE 250/2x30 | 230 Vac | 2 x 30 Vac | 250 VA | |
| RTE 300/2x18 | 230 Vac | 2 x 18 Vac | 300 VA | |
| RTE 300/2x24 | 230 Vac | 2 x 24 Vac | 300 VA | |
| RTE 330/2x18 | 230 Vac | 2 x 18 Vac | 330 VA | |
| RTE 400/2x18 | 230 Vac | 2 x 18 Vac | 400 VA | |
| RTE 400/2x24 | 230 Vac | 2 x 24 Vac | 400 VA | |
| RTE 400/2x30 | 230 Vac | 2 x 30 Vac | 400 VA | |
| RTE 500/2x24 | 230 Vac | 2 x 24 Vac | 500 VA | |
| RTE 500/2x30 | 230 Vac | 2 x 30 Vac | 500 VA | |
| RTE 500/2x35 | 230 Vac | 2 x 35 Vac | 500 VA | |
| RTE 625/2x30 | 230 Vac | 2 x 30 Vac | 625 VA |
