VC 3,2/1/6

Safety isolating transformer

Version VC 3,2/1/6
Rated input voltage 230 Vac Rated output voltage 6 Vac Rated Power 3.2 VA
Display options
Version Rated input voltage Rated output voltage Rated Power
VC 3,2/1/6 230 Vac 6 Vac 3.2 VA
VC 3,2/1/8 230 Vac 8 Vac 3.2 VA
VC 3,2/1/9 230 Vac 9 Vac 3.2 VA
VC 3,2/1/12 230 Vac 12 Vac 3.2 VA
VC 3,2/1/15 230 Vac 15 Vac 3.2 VA
VC 3,2/1/18 230 Vac 18 Vac 3.2 VA
VC 3,2/1/24 230 Vac 24 Vac 3.2 VA
VC 3,2/2/6 230 Vac 2 x 6 Vac 3.2 VA
VC 3,2/2/8 230 Vac 2 x 8 Vac 3.2 VA
VC 3,2/2/9 230 Vac 2 x 9 Vac 3.2 VA
VC 3,2/2/12 230 Vac 2 x 12 Vac 3.2 VA
VC 3,2/2/15 230 Vac 2 x 15 Vac 3.2 VA
VC 3,2/2/18 230 Vac 2 x 18 Vac 3.2 VA
VC 3,2/2/24 230 Vac 2 x 24 Vac 3.2 VA
VC 5,0/1/6 230 Vac 6 Vac 5 VA
VC 5,0/1/8 230 Vac 8 Vac 5 VA
VC 5,0/1/9 230 Vac 9 Vac 5 VA
VC 5,0/1/12 230 Vac 12 Vac 5 VA
VC 5,0/1/15 230 Vac 15 Vac 5 VA
VC 5,0/1/18 230 Vac 18 Vac 5 VA
VC 5,0/1/24 230 Vac 24 Vac 5 VA
VC 5,0/2/6 230 Vac 2 x 6 Vac 5 VA
VC 5,0/2/8 230 Vac 2 x 8 Vac 5 VA
VC 5,0/2/9 230 Vac 2 x 9 Vac 5 VA
VC 5,0/2/12 230 Vac 2 x 12 Vac 5 VA
VC 5,0/2/15 230 Vac 2 x 15 Vac 5 VA
VC 5,0/2/18 230 Vac 2 x 18 Vac 5 VA
VC 5,0/2/24 230 Vac 2 x 24 Vac 5 VA
VC 10/1/6 230 Vac 6 Vac 10 VA
VC 10/1/8 230 Vac 8 Vac 10 VA
VC 10/1/9 230 Vac 9 Vac 10 VA
VC 10/1/12 230 Vac 12 Vac 10 VA
VC 10/1/15 230 Vac 15 Vac 10 VA
VC 10/1/18 230 Vac 18 Vac 10 VA
VC 10/1/24 230 Vac 24 Vac 10 VA
VC 10/2/6 230 Vac 2 x 6 Vac 10 VA
VC 10/2/8 230 Vac 2 x 8 Vac 10 VA
VC 10/2/9 230 Vac 2 x 9 Vac 10 VA
VC 10/2/12 230 Vac 2 x 12 Vac 10 VA
VC 10/2/15 230 Vac 2 x 15 Vac 10 VA
VC 10/2/18 230 Vac 2 x 18 Vac 10 VA
VC 10/2/24 230 Vac 2 x 24 Vac 10 VA
VC 16/1/6 230 Vac 6 Vac 16 VA
VC 16/1/8 230 Vac 8 Vac 16 VA
VC 16/1/9 230 Vac 9 Vac 16 VA
VC 16/1/12 230 Vac 12 Vac 16 VA
VC 16/1/15 230 Vac 15 Vac 16 VA
VC 16/1/18 230 Vac 18 Vac 16 VA
VC 16/1/24 230 Vac 24 Vac 16 VA
VC 16/2/6 230 Vac 2 x 6 Vac 16 VA
VC 16/2/8 230 Vac 2 x 8 Vac 16 VA
VC 16/2/9 230 Vac 2 x 9 Vac 16 VA
VC 16/2/12 230 Vac 2 x 12 Vac 16 VA
VC 16/2/15 230 Vac 2 x 15 Vac 16 VA
VC 16/2/18 230 Vac 2 x 18 Vac 16 VA
VC 16/2/24 230 Vac 2 x 24 Vac 16 VA

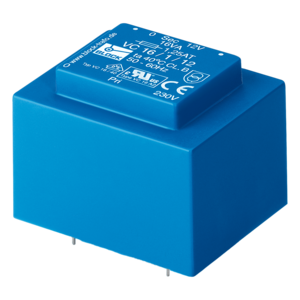

Image of %s BLOCK Item: VC 3,2/1/6

Technical data for VC 3,2/1/6

Input
Rated input voltage 230 Vac
Rated frequency 50 - 60 Hz
Output
Rated output voltage 6 Vac
Rated Power 3.2 VA
No-load voltage (app. x factor) 1.50
No-load loss (typ.) 1.00 W
Efficiency 60.0 %
Standards
Classification Safety isolating transformer
Approvals
Approvals cURus, VDE
Environment
Ambient temperature max. 60 °C
Safety and protection
Type Encapsulated
Insulation class VDE=B, UL=class 105
Protection index IP 00
Safety class (prepared) II
Short circuit strength non-short-circuit proof
Terminal and mounting
Terminals Pins for printed circuit boards
Measures and weights
Depth 35 mm
Height 28.1 mm
Width 41 mm
Pin (ø) 0.8 mm
Core type EI 38/13,5
Weight 0.15 kg

Info on VC series

General Data
  • Insulation class B
  • Degree of protection IP 00
  • Efficiency up to 76 %
  • Maximum ambient temperature 40 - 60 °C
  • Rated power 3.2 - 16 VA
  • Rated output voltage 6 - 2 x 24 Vac
  • Rated input voltage 230 Vac
Benefits
  • Self-extinguishing potting material
  • Minimum size at high output
  • Permanent corrosion protection, high insulation value and maximum electrical reliability thanks to XtraDenseFill resin encapsulation
  • Also with dual output voltage for series or parallel connection
