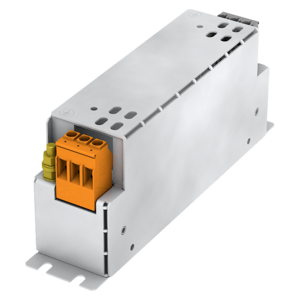

HLE 110-230/20
Radio interference suppression filter, single-phase HLE 110
Rated voltage
250 Vac
Rated current
20 A
Leakage current (50 Hz)*
8.50 mA
| Version | Rated voltage | Rated current | Leakage current (50 Hz)* | |
|---|---|---|---|---|
| HLE 110-230/4 | 250 Vac | 4 A | 8.50 mA | |
| HLE 110-230/8 | 250 Vac | 8 A | 8.50 mA | |
| HLE 110-230/12 | 250 Vac | 12 A | 8.50 mA | |
| HLE 110-230/16 | 250 Vac | 16 A | 8.50 mA | |
| HLE 110-230/20 | 250 Vac | 20 A | 8.50 mA | |
| HLE 110-230/25 | 250 Vac | 25 A | 8.50 mA | |
| HLE 110-230/30 | 250 Vac | 30 A | 8.50 mA | |
| HLE 110-230/42 | 250 Vac | 42 A | 8.50 mA | |
| HLE 110-230/55 | 250 Vac | 55 A | 8.50 mA |
DOWNLOADS
Technical files
Data sheet
Approvals / Manufacturer's declaration
Manufacturer's declaration to EN 60939-2
CAD/CAE data
3D-CAD-Model (STEP)
ePlan Makro
Technical data for HLE 110-230/20
| Operating data | |
|---|---|
| Rated voltage | 250 Vac |
| Voltage range | 0 - 250 Vac |
| Rated current | 20 A |
| Leakage current (50 Hz)* | 8.50 mA |
| Rated frequency | 50 - 60 Hz |
| Overrating Capacity | 150 %, short-time |
| Environment | |
|---|---|
| Ambient temperature max. | 50 °C |
| Climatic category | 25/085/21 [in accordance with EN 60068-1] |
| Safety and protection | |
|---|---|
| Protection index | IP 20 |
| Type | Metal enclosure |
| Safety class (prepared) | I |
| Test voltage | 1700 Vdc Phase/Phase, 2700 Vdc Phase/PE |
| Terminal and mounting | |
|---|---|
| Terminals phase | Screw clamp, 4 mm² |
| Terminals PE | Bolt, M5 |
| Fixing method | Mounting lugs |
| Fixing screws | M5 |
| Measures and weights | |
|---|---|
| Depth | 190 mm |
| Height | 75 mm |
| Width | 38 mm |
| Weight | 0.80 kg |
| Notes | |
|---|---|
| * | Leakage current measured against the maximum permissible input voltage fluctuation in accordance with IEC 38 ±10 % |
Info on HLE 110 series
General Data
- Degree of protection IP 20
- Rated current 4 - 55 A
- Ambient temperature max. 50 °C
- Leakage current 8.50 mA
- Voltage range 0 - 250 Vac
- Rated voltage 250 Vac
Benefits
- Single-stage filter concept
- For enhanced requirements
- Increase in the interference immunity of the connected consumer
- Efficient filter effect against line-bound interference emissions
