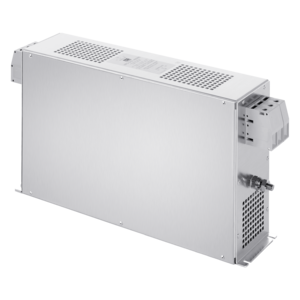

Radio interference suppression filter, three-phase

HFD 510-500/50

Characteristics

Benefits

 For general requirements

 Two-stage filter concept

 Efficient filter effect against line-bound interference emissions

 Increase in the interference immunity of the connected consumer

Product Search
Product Radio interference suppression filter, three-phase
Order number HFD 510-500/50
Inductance 3x 1.2 mH
Rated Current 3x 50 Aac
Linear Current 3x 0 Aac
Rated voltage range 0 V to 520 V
Rated voltage 480 V
Frequency range 50 Hz to 60 Hz
EN insulation class A (105°C)
UL Insulation class class 105
Duty Cycle 100 %
Wire material Copper
General
Duty Cycle 100 %
Cooling type AN
Enviroment
Ambient temperature -25 °C to 40 °C / -13 °F to 104 °F
Max. installation height 1,000 m / 3,281 ft
Protection and Safety
Protection type IP 20
Protection class (prepared) I
Degree of contamination 2
Electrical Connections
Input terminal Screw terminal
Output terminal Screw terminal
Terminal PE Bolt connection
Size and Weight
Width 429 mm / 16.89 in
Height 240 mm / 9.45 in
Depth 110 mm / 4.33 in
Weight 7.04 kg / 15.52 lbs
RoHS compliant EN IEC 63000
