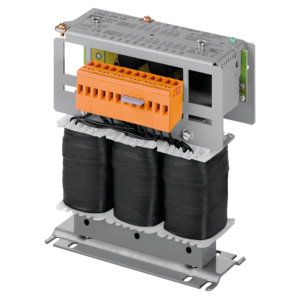

DNC 24-50 C
Non stabilized DC power supply DNC
Version DNC 24-50 C
Input rated voltage
Delta-connection: 3x219 Vac/230 Vac/241 Vac<br />Star-connection:<br />3x380 Vac/400 Vac/420 Vac
Output rated voltage
24 Vdc
Output rated current
50.00 A
| Version | Input rated voltage | Output rated voltage | Output rated current | |
|---|---|---|---|---|
| DNC 24-4 | Delta-connection: 3x219 Vac/230 Vac/241 Vac<br />Star-connection:<br />3x380 Vac/400 Vac/420 Vac | 24 Vdc | 4.00 A | |
| DNC 24-10 | Delta-connection: 3x219 Vac/230 Vac/241 Vac<br />Star-connection:<br />3x380 Vac/400 Vac/420 Vac | 24 Vdc | 10.00 A | |
| DNC 24-15 C | Delta-connection: 3x219 Vac/230 Vac/241 Vac<br />Star-connection:<br />3x380 Vac/400 Vac/420 Vac | 24 Vdc | 15.00 A | |
| DNC 24-20 C | Delta-connection: 3x219 Vac/230 Vac/241 Vac<br />Star-connection:<br />3x380 Vac/400 Vac/420 Vac | 24 Vdc | 20.00 A | |
| DNC 24-30 C | Delta-connection: 3x219 Vac/230 Vac/241 Vac<br />Star-connection:<br />3x380 Vac/400 Vac/420 Vac | 24 Vdc | 30.00 A | |
| DNC 24-40 C | Delta-connection: 3x219 Vac/230 Vac/241 Vac<br />Star-connection:<br />3x380 Vac/400 Vac/420 Vac | 24 Vdc | 40.00 A | |
| DNC 24-50 C | Delta-connection: 3x219 Vac/230 Vac/241 Vac<br />Star-connection:<br />3x380 Vac/400 Vac/420 Vac | 24 Vdc | 50.00 A |
Technical data for DNC 24-50 C
| Input | |
|---|---|
| Input rated voltage | Delta-connection: 3x219 Vac/230 Vac/241 Vac Star-connection: 3x380 Vac/400 Vac/420 Vac |
| Rated frequency | 50 - 60 Hz |
| Output | |
|---|---|
| Output rated voltage | 24 Vdc |
| Power | 1200.00 W |
| Output rated current | 50.00 A |
| Ripple factor | typ. 2 % |
| Approvals | |
|---|---|
| Approvals | cURus (transformer only) |
| Environment | |
|---|---|
| Ambient temperature max. | +60 °C |
| Type of cooling | self-cooling |
| Safety and protection | |
|---|---|
| Type | Open type |
| Insulation class | VDE=B, UL=class 130 |
| Protection index | IP 00 |
| Safety class (prepared) | I |
| Short circuit strength | non-short-circuit proof |
| Terminal and mounting | |
|---|---|
| Terminals | Screw-type terminals |
| Fixing method | Base plate |
| Fixing screws | M6 |
| Measures and weights | |
|---|---|
| Width | 225 mm |
| Height | 297 mm |
| Depth | 266 mm |
| Weight | 22.10 kg |
Info on DNC series
General Data
- Protection index IP 00
- Universal input rated voltage
- Output rated voltage 24 Vdc
- Output rated power 96 - 1200 W
- Residual ripple factor ≤2 %
- Ambient temperature +60 °C
Benefits
- Varistor wiring
- Impulse loading MKT-capacitors
- Unsusceptible to voltage surges or transients
- Capacitor switching at the output
- DC OK signalling via LEDs
- High overload capacity
- Very good corrosion protection and low noise thanks to vacuum impregnation
- Contact protected screw connection terminals complying with UVV BGV A3
