BG 270

Metal enclosures BG

Version BG 270
Enclosure suitable for protection index IP 23 Weight 60 kg
Display options
Version Enclosure suitable for protection index Weight
BG 240 IP 23 45 kg
BG 270 IP 23 60 kg
BG 300 IP 23 110 kg
BG 450 IP 23 160 kg

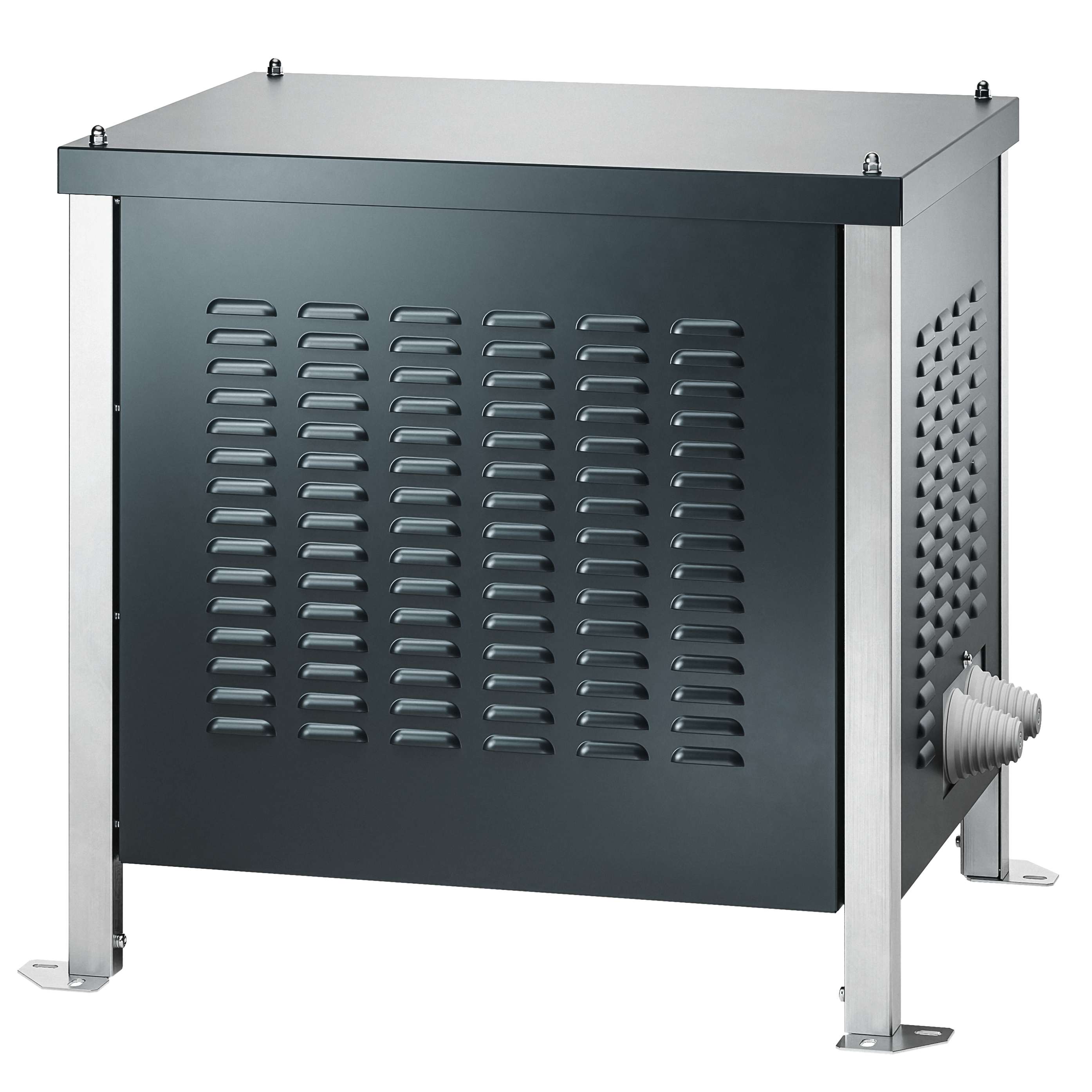

Image of %s BLOCK Item: BG 270
Download product datasheet
Additional information Brochure

Technical data for BG 270

Operating data
Enclosure suitable for protection index IP 23
Max. Power loos (at 40 °C ambient temperature) 1200 W
For power (single-phase)* 36,000 VA
For power (three-phase)* 60,000 VA
Terminal and mounting
Cable glanding type 2 x M63
Cable glanding Ø 37 - 44 mm
Measures and weights
Width 858 mm
Height 809 mm
Depth 690 mm
Effective inside dimension (W) 670 mm
Effective inside dimension (H) 760 mm
Effective inside dimension (D) 550 mm
Fixing hole Ø 11 x 22 mm
Weight 60 kg
Notes
* The indicated power is a guideline. Deviations may occur depending on the version of the transformer.

Info on BG series

General Data
  • Degree of protection IP 23
  • For floor mounting
Benefits
  • Optionally available in degree of protection IP 54
  • With cooling fins for optimal heat extraction
  • Excellent corrosion protection and high abrasion resistance through powder-coated surface RAL 5008/9006
