Enclosures

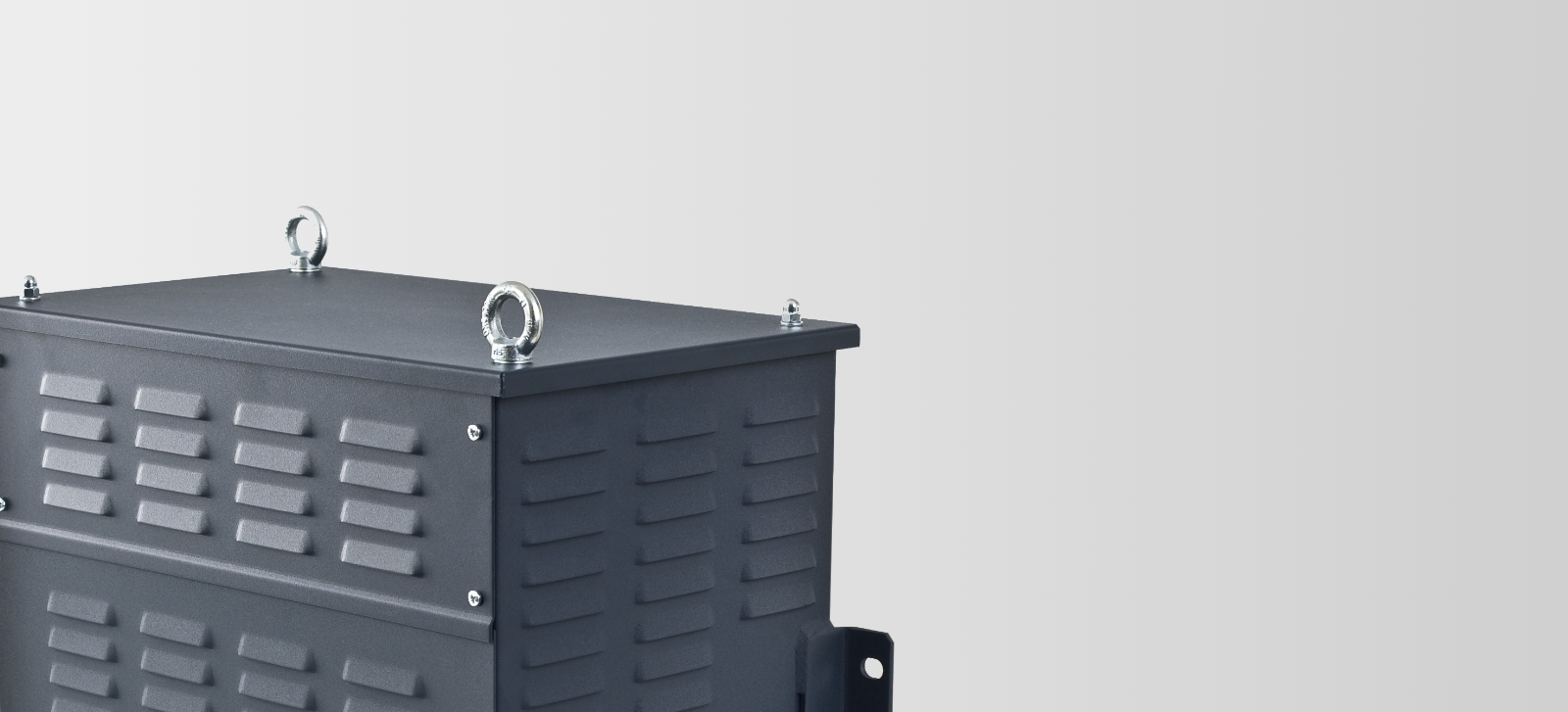

The BG, BGE, BGUK and TOGA enclosure series provide optimum protection from environmental influences. Their design allows them to be adjusted individually to the application. The focus at all times is on optimum cooling for the installed components. BLOCK’s standard range includes enclosures with edge lengths of up to 1.5 meters for power ratings up to 25 kVA.

Overview:

◼︎  IP 20 and IP 23
◼︎  For power ratings up to 25 kVA

Your contact:

Andreas Reinhardt

Andreas ReinhardtHead of Transformer Development

Downloads

Product search for all Transformers

Product search for Enclosures

View filter
Degree of protection
24 Versions of 4 products
Or do you have different requirements? We can help you!
Image of %s BLOCK Item: BGE
BGE
Metal enclosures
Variable foot angle for easy installation, Degree of protection IP 23, For floor mounting, For power 3,000 – 420,000 VA
Display options
Version Enclosure suitable for protection index Weight
BGE-050 IP 23 15 kg
BGE-065 IP 23 19 kg
BGE-070 IP 23 25 kg
BGE-080 IP 23 40 kg
BGE-085 IP 23 50 kg
BGE-095 IP 23 60 kg
BGE-115 IP 23 75 kg
BGE-130 IP 23 125 kg
BGE-150 IP 23 75 kg
Or do you have different requirements? We can help you!
Image of %s BLOCK Item: BGUK
BGUK
Metal enclosures
Integrated rail system for the installation of different product sizes, Degree of protection IP 20 - IP 23, For wall and floor mounting, For Power 63 - 25,000 VA
Display options
Version Dimension (W x H x D) Enclosure suitable for protection index Weight
BGUK 1 140 x 150 x 130 mm IP 20 1.5 kg
BGUK 2 190 x 200 x 170 mm IP 20 2.7 kg
BGUK 3 230 x 250 x 210 mm IP 20 4.0 kg
BGUK 10 320 x 250 x 195 mm IP 23 7.0 kg
BGUK 20 420 x 322 x 230 mm IP 23 12.0 kg
BGUK 30 470 x 423 x 265 mm IP 23 16.0 kg
BGUK 40 580 x 472 x 325 mm IP 23 22.0 kg
BGUK 50 700 x 572 x 420 mm IP 23 32.0 kg
BGUK 60 950 x 744 x 570 mm IP 23 65.0 kg
Or do you have different requirements? We can help you!
Image of %s BLOCK Item: BG
BG
Metal enclosures
Integrated rail system for the installation of different product sizes, Degree of protection IP 23, For floor mounting, For Power 17,000 – 100,000 VA
Display options
Version Enclosure suitable for protection index Weight
BG 240 IP 23 45 kg
BG 270 IP 23 60 kg
BG 300 IP 23 110 kg
BG 450 IP 23 160 kg
Or do you have different requirements? We can help you!
Image of %s BLOCK Item: TOGA
TOGA
Plastic enclosure
Wall fastening, Protection index IP 20
Display options
Version Weight
TOGA-100 0.2 kg
TOGA-450 0.5 kg
