Control transformers with galvanic isolation are used for supplies of control systems with more than two consumers in accordance with EN 60204. Designed in accordance with VDE 0113, control transformers also provide continuous power in the event of short-term overloads. BLOCK’s standard range includes power ratings of between 20 VA and 25,000 VA.
Product search for Control transformers
Equipment type
Output power
- 100 VA (20)
- 1000 VA (19)
- 10000 VA (4)
- 1200 VA (1)
- 12500 VA (1)
- 130 VA (6)
- 15000 VA (1)
- 160 VA (17)
- 1600 VA (13)
- 2000 VA (10)
- 20000 VA (1)
- 250 VA (24)
- 2500 VA (11)
- 25000 VA (1)
- 3000 VA (6)
- 320 VA (9)
- 3200 VA (1)
- 40 VA (2)
- 400 VA (17)
- 4000 VA (8)
- 500 VA (16)
- 5000 VA (5)
- 6000 VA (1)
- 63 VA (20)
- 630 VA (15)
- 6300 VA (6)
- 800 VA (13)
- 8000 VA (4)
Input voltage
- 115 Vac (5)
- 208 Vac (17)
- 210 Vac (22)
- 219 Vac (4)
- 230 Vac (143)
- 241 Vac (4)
- 250 Vac (22)
- 380 Vac (56)
- 400 Vac (169)
- 415 Vac (17)
- 418 Vac (6)
- 420 Vac (39)
- 440 Vac (53)
- 460 Vac (39)
- 462 Vac (6)
- 475 Vac (4)
- 480 Vac (39)
- 500 Vac (48)
- 520 Vac (22)
- 525 Vac (22)
- 540 Vac (22)
- 550 Vac (17)
- 575 Vac (18)
- 600 Vac (17)
- 690 Vac (15)
Output voltage
- 11.3 Vac (1)
- 110 Vac (1)
- 115 Vac (1)
- 12 Vac (5)
- 2 x 115 Vac (92)
- 2 x 12 Vac (23)
- 2 x 24 Vac (17)
- 230 Vac (62)
- 24 Vac (46)
- 42 Vac (7)
Connections
Fixing method
Approvals
252 Versions of 10 products
Or do you have different requirements?
We can help you!

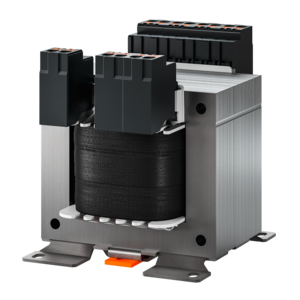

USTE
Universal control transformer
Universal input voltages, PRI 208 – 600 Vac, SEC 2 x 12 – 2 x 115 Vac, 100 – 3,200 VA, Push-in terminals
| Version | Rated input voltage | Rated output voltage | Rated power VDE (DB cos phi=1) | |
|---|---|---|---|---|
| USTE 40/2x12 | 208 Vac/ 230 Vac/ 380 Vac/ 400 Vac/ 415 Vac/ 440 Vac/ 460 Vac/ 480 Vac/ 500 Vac/ 525 Vac/ 550 Vac/ 575 Vac/ 600 Vac | 2 x 12 Vac | 40 VA | |
| USTE 100/2x12 | 208 Vac/ 230 Vac/ 380 Vac/ 400 Vac/ 415 Vac/ 440 Vac/ 460 Vac/ 480 Vac/ 500 Vac/ 525 Vac/ 550 Vac/ 575 Vac/ 600 Vac | 2 x 12 Vac | 100 VA | |
| USTE 100/2x115 | 208 Vac/ 230 Vac/ 380 Vac/ 400 Vac/ 415 Vac/ 440 Vac/ 460 Vac/ 480 Vac/ 500 Vac/ 525 Vac/ 550 Vac/ 575 Vac/ 600 Vac | 2 x 115 Vac | 100 VA | |
| USTE 250/2x12 | 208 Vac/ 230 Vac/ 380 Vac/ 400 Vac/ 415 Vac/ 440 Vac/ 460 Vac/ 480 Vac/ 500 Vac/ 525 Vac/ 550 Vac/ 575 Vac/ 600 Vac | 2 x 12 Vac | 250 VA | |
| USTE 250/2x115 | 208 Vac/ 230 Vac/ 380 Vac/ 400 Vac/ 415 Vac/ 440 Vac/ 460 Vac/ 480 Vac/ 500 Vac/ 525 Vac/ 550 Vac/ 575 Vac/ 600 Vac | 2 x 115 Vac | 250 VA | |
| USTE 400/2x12 | 208 Vac/ 230 Vac/ 380 Vac/ 400 Vac/ 415 Vac/ 440 Vac/ 460 Vac/ 480 Vac/ 500 Vac/ 525 Vac/ 550 Vac/ 575 Vac/ 600 Vac | 2 x 12 Vac | 400 VA | |
| USTE 400/2x115 | 208 Vac/ 230 Vac/ 380 Vac/ 400 Vac/ 415 Vac/ 440 Vac/ 460 Vac/ 480 Vac/ 500 Vac/ 525 Vac/ 550 Vac/ 575 Vac/ 600 Vac | 2 x 115 Vac | 400 VA | |
| USTE 630/2x12 | 208 Vac/ 230 Vac/ 380 Vac/ 400 Vac/ 415 Vac/ 440 Vac/ 460 Vac/ 480 Vac/ 500 Vac/ 525 Vac/ 550 Vac/ 575 Vac/ 600 Vac | 2 x 12 Vac | 630 VA | |
| USTE 630/2x115 | 208 Vac/ 230 Vac/ 380 Vac/ 400 Vac/ 415 Vac/ 440 Vac/ 460 Vac/ 480 Vac/ 500 Vac/ 525 Vac/ 550 Vac/ 575 Vac/ 600 Vac | 2 x 115 Vac | 630 VA | |
| USTE 800/2x115 | 208 Vac/ 230 Vac/ 380 Vac/ 400 Vac/ 415 Vac/ 440 Vac/ 460 Vac/ 480 Vac/ 500 Vac/ 525 Vac/ 550 Vac/ 575 Vac/ 600 Vac | 2 x 115 Vac | 800 VA | |
| USTE 1000/2x115 | 208 Vac/ 230 Vac/ 380 Vac/ 400 Vac/ 415 Vac/ 440 Vac/ 460 Vac/ 480 Vac/ 500 Vac/ 525 Vac/ 550 Vac/ 575 Vac/ 600 Vac | 2 x 115 Vac | 1,000 VA | |
| USTE 1200/2x115 | 208 Vac/ 230 Vac/ 380 Vac/ 400 Vac/ 415 Vac/ 440 Vac/ 460 Vac/ 480 Vac/ 500 Vac/ 525 Vac/ 550 Vac/ 575 Vac/ 600 Vac | 2 x 115 Vac | 1,200 VA | |
| USTE 1600/2x115 | 208 Vac/ 230 Vac/ 380 Vac/ 400 Vac/ 415 Vac/ 440 Vac/ 460 Vac/ 480 Vac/ 500 Vac/ 525 Vac/ 550 Vac/ 575 Vac/ 600 Vac | 2 x 115 Vac | 1,600 VA | |
| USTE 2500/2x115 | 208 Vac/ 230 Vac/ 380 Vac/ 400 Vac/ 415 Vac/ 440 Vac/ 460 Vac/ 480 Vac/ 500 Vac/ 525 Vac/ 550 Vac/ 575 Vac/ 600 Vac | 2 x 115 Vac | 2,500 VA | |
| USTE 3200/2x115 | 208 Vac/ 230 Vac/ 380 Vac/ 400 Vac/ 415 Vac/ 440 Vac/ 460 Vac/ 480 Vac/ 500 Vac/ 525 Vac/ 550 Vac/ 575 Vac/ 600 Vac | 2 x 115 Vac | 3,200 VA |
Or do you have different requirements?
We can help you!
STEU
Control- and safety isolating- resp. isolating transformer
PRI 230/400 Vac, SEC 2 x 12 – 2 x 115 Vac, 63 – 2,500 VA, Push-in terminals
| Version | Rated input voltage | Rated output voltage | Rated power VDE (DB cos phi=1) | |
|---|---|---|---|---|
| STEU 63/24 | 230/400 Vac | 2 x 12 Vac | 63 VA | |
| STEU 63/48 | 230/400 Vac | 2 x 24 Vac | 63 VA | |
| STEU 63/23 | 230/400 Vac | 2 x 115 Vac | 63 VA | |
| STEU 100/24 | 230/400 Vac | 2 x 12 Vac | 100 VA | |
| STEU 100/48 | 230/400 Vac | 2 x 24 Vac | 100 VA | |
| STEU 100/23 | 230/400 Vac | 2 x 115 Vac | 100 VA | |
| STEU 160/24 | 230/400 Vac | 2 x 12 Vac | 160 VA | |
| STEU 160/48 | 230/400 Vac | 2 x 24 Vac | 160 VA | |
| STEU 160/23 | 230/400 Vac | 2 x 115 Vac | 160 VA | |
| STEU 250/24 | 230/400 Vac | 2 x 12 Vac | 250 VA | |
| STEU 250/48 | 230/400 Vac | 2 x 24 Vac | 250 VA | |
| STEU 250/23 | 230/400 Vac | 2 x 115 Vac | 250 VA | |
| STEU 320/24 | 230/400 Vac | 2 x 12 Vac | 320 VA | |
| STEU 320/48 | 230/400 Vac | 2 x 24 Vac | 320 VA | |
| STEU 320/23 | 230/400 Vac | 2 x 115 Vac | 320 VA | |
| STEU 400/24 | 230/400 Vac | 2 x 12 Vac | 400 VA | |
| STEU 400/48 | 230/400 Vac | 2 x 24 Vac | 400 VA | |
| STEU 400/23 | 230/400 Vac | 2 x 115 Vac | 400 VA | |
| STEU 500/24 | 230/400 Vac | 2 x 12 Vac | 500 VA | |
| STEU 500/48 | 230/400 Vac | 2 x 24 Vac | 500 VA | |
| STEU 500/23 | 230/400 Vac | 2 x 115 Vac | 500 VA | |
| STEU 630/24 | 230/400 Vac | 2 x 12 Vac | 630 VA | |
| STEU 630/23 | 230/400 Vac | 2 x 115 Vac | 630 VA | |
| STEU 630/48 | 230/400 Vac | 2 x 24 Vac | 630 VA | |
| STEU 800/24 | 230/400 Vac | 2 x 12 Vac | 800 VA | |
| STEU 800/48 | 230/400 Vac | 2 x 24 Vac | 800 VA | |
| STEU 800/23 | 230/400 Vac | 2 x 115 Vac | 800 VA | |
| STEU 1000/24 | 230/400 Vac | 2 x 12 Vac | 1,000 VA | |
| STEU 1000/48 | 230/400 Vac | 2 x 24 Vac | 1,000 VA | |
| STEU 1000/23 | 230/400 Vac | 2 x 115 Vac | 1,000 VA | |
| STEU 1600/23 | 230/400 Vac | 2 x 115 Vac | 1,600 VA | |
| STEU 2000/23 | 230/400 Vac | 2 x 115 Vac | 2,000 VA | |
| STEU 2500/23 | 230/400 Vac | 2 x 115 Vac | 2,500 VA |
Or do you have different requirements?
We can help you!
STE
Control- and safety isolating- resp. isolating transformer
PRI 230 – 400 Vac, SEC 24 – 230 Vac, 63 – 2,500 VA, Push-in terminals
| Version | Rated input voltage | Rated output voltage | Rated power VDE (DB cos phi=1) | |
|---|---|---|---|---|
| STE 63/23/24 | 230 Vac | 24 Vac | 63 VA | |
| STE 63/4/24 | 400 Vac | 24 Vac | 63 VA | |
| STE 63/4/23 | 400 Vac | 230 Vac | 63 VA | |
| STE 100/23/24 | 230 Vac | 24 Vac | 100 VA | |
| STE 100/4/23 | 400 Vac | 230 Vac | 100 VA | |
| STE 160/23/24 | 230 Vac | 24 Vac | 160 VA | |
| STE 160/4/23 | 400 Vac | 230 Vac | 160 VA | |
| STE 250/23/24 | 230 Vac | 24 Vac | 250 VA | |
| STE 250/4/24 | 400 Vac | 24 Vac | 250 VA | |
| STE 250/4/23 | 400 Vac | 230 Vac | 250 VA | |
| STE 320/23/24 | 230 Vac | 24 Vac | 320 VA | |
| STE 320/4/23 | 400 Vac | 230 Vac | 320 VA | |
| STE 400/23/24 | 230 Vac | 24 Vac | 400 VA | |
| STE 400/4/23 | 400 Vac | 230 Vac | 400 VA | |
| STE 500/23/24 | 230 Vac | 24 Vac | 500 VA | |
| STE 500/4/24 | 400 Vac | 24 Vac | 500 VA | |
| STE 500/4/23 | 400 Vac | 230 Vac | 500 VA | |
| STE 630/4/23 | 400 Vac | 230 Vac | 630 VA | |
| STE 800/4/23 | 400 Vac | 230 Vac | 800 VA | |
| STE 1000/4/23 | 400 Vac | 230 Vac | 1,000 VA | |
| STE 1600/4/23 | 400 Vac | 230 Vac | 1,600 VA | |
| STE 2000/4/23 | 400 Vac | 230 Vac | 2.000 VA | |
| STE 2500/4/23 | 400 Vac | 230 Vac | 2.500 VA |
Or do you have different requirements?
We can help you!
ST
Control- and safety isolating- resp. isolating transformer
Base plate, PRI 115 – 690 Vac, SEC 12 – 230 Vac, 20 – 2,500 VA
| Version | Rated input voltage | Rated output voltage | Rated power VDE (DB cos phi=1) | |
|---|---|---|---|---|
| ST 63/11/24 | 115 Vac | 24 Vac | 63 VA | |
| ST 63/23/12 | 230 Vac | 12 Vac | 63 VA | |
| ST 63/23/24 | 230 Vac | 24 Vac | 63 VA | |
| ST 63/23/23 | 230 Vac | 230 Vac | 63 VA | |
| ST 63/4/24 | 400 Vac | 24 Vac | 63 VA | |
| ST 63/4/42 | 400 Vac | 42 Vac | 63 VA | |
| ST 63/4/23 | 400 Vac | 230 Vac | 63 VA | |
| ST 63/44/23 | 440 Vac | 230 Vac | 63 VA | |
| ST 63/69/23 | 690 Vac | 230 Vac | 63 VA | |
| ST 100/23/12 | 230 Vac | 12 Vac | 100 VA | |
| ST 100/23/24 | 230 Vac | 24 Vac | 100 VA | |
| ST 100/23/23 | 230 Vac | 230 Vac | 100 VA | |
| ST 100/4/24 | 400 Vac | 24 Vac | 100 VA | |
| ST 100/4/23 | 400 Vac | 230 Vac | 100 VA | |
| ST 100/69/23 | 690 Vac | 230 Vac | 100 VA | |
| ST 130/23/24 | 230 Vac | 24 Vac | 130 VA | |
| ST 130/23/11 | 230 Vac | 110 Vac | 130 VA | |
| ST 130/4/23 | 400 Vac | 230 Vac | 130 VA | |
| ST 130/69/23 | 690 Vac | 230 Vac | 130 VA | |
| ST 160/23/24 | 230 Vac | 24 Vac | 160 VA | |
| ST 160/23/23 | 230 Vac | 230 Vac | 160 VA | |
| ST 160/4/24 | 400 Vac | 24 Vac | 160 VA | |
| ST 160/4/23 | 400 Vac | 230 Vac | 160 VA | |
| ST 160/69/23 | 690 Vac | 230 Vac | 160 VA | |
| ST 250/11/24 | 115 Vac | 24 Vac | 250 VA | |
| ST 250/23/12 | 230 Vac | 12 Vac | 250 VA | |
| ST 250/23/24 | 230 Vac | 24 Vac | 250 VA | |
| ST 250/23/42 | 230 Vac | 42 Vac | 250 VA | |
| ST 250/23/23 | 230 Vac | 230 Vac | 250 VA | |
| ST 250/4/23 | 400 Vac | 230 Vac | 250 VA | |
| ST 250/4/24 | 400 Vac | 24 Vac | 250 VA | |
| ST 250/44/23 | 440 Vac | 230 Vac | 250 VA | |
| ST 250/69/23 | 690 Vac | 230 Vac | 250 VA | |
| ST 320/23/24 | 230 Vac | 24 Vac | 320 VA | |
| ST 320/23/23 | 230 Vac | 230 Vac | 320 VA | |
| ST 320/4/23 | 400 Vac | 230 Vac | 320 VA | |
| ST 320/69/23 | 690 Vac | 230 Vac | 320 VA | |
| ST 400/23/24 | 230 Vac | 24 Vac | 400 VA | |
| ST 400/23/23 | 230 Vac | 230 Vac | 400 VA | |
| ST 400/4/24 | 400 Vac | 24 Vac | 400 VA | |
| ST 400/4/23 | 400 Vac | 230 Vac | 400 VA | |
| ST 400/69/23 | 690 Vac | 230 Vac | 400 VA | |
| ST 500/11/23 | 115 Vac | 230 Vac | 500 VA | |
| ST 500/23/23 | 230 Vac | 230 Vac | 500 VA | |
| ST 500/23/24 | 230 Vac | 24 Vac | 500 VA | |
| ST 500/23/42 | 230 Vac | 42 Vac | 500 VA | |
| ST 500/4/24 | 400 Vac | 24 Vac | 500 VA | |
| ST 500/4/23 | 400 Vac | 230 Vac | 500 VA | |
| ST 500/44/23 | 440 Vac | 230 Vac | 500 VA | |
| ST 500/69/23 | 690 Vac | 230 Vac | 500 VA | |
| ST 630/23/23 | 230 Vac | 230 Vac | 630 VA | |
| ST 630/23/42 | 230 Vac | 42 Vac | 500 VA | |
| ST 630/4/23 | 400 Vac | 230 Vac | 630 VA | |
| ST 630/69/23 | 690 Vac | 230 Vac | 630 VA | |
| ST 800/11/11 | 115 Vac | 115 Vac | 800 VA | |
| ST 800/23/23 | 230 Vac | 230 Vac | 800 VA | |
| ST 800/4/24 | 400 Vac | 24 Vac | 800 VA | |
| ST 800/4/23 | 400 Vac | 230 Vac | 800 VA | |
| ST 800/44/23 | 440 Vac | 230 Vac | 800 VA | |
| ST 800/69/23 | 690 Vac | 230 Vac | 800 VA | |
| ST 1000/11/23 | 115 Vac | 230 Vac | 1,000 VA | |
| ST 1000/23/23 | 230 Vac | 230 Vac | 1,000 VA | |
| ST 1000/4/23 | 400 Vac | 230 Vac | 1,000 VA | |
| ST 1000/44/23 | 440 Vac | 230 Vac | 1,000 VA | |
| ST 1000/5/23 | 500 Vac | 230 Vac | 1,000 VA | |
| ST 1000/69/23 | 690 Vac | 230 Vac | 1,000 VA | |
| ST 1600/4/23 | 400 Vac | 230 Vac | 1,600 VA | |
| ST 1600/69/23 | 690 Vac | 230 Vac | 1,600 VA | |
| ST 2000/4/23 | 400 Vac | 230 Vac | 2,000 VA | |
| ST 2000/69/23 | 690 Vac | 230 Vac | 2,000 VA | |
| ST 2500/4/23 | 400 Vac | 230 Vac | 2,500 VA | |
| ST 2500/69/23 | 690 Vac | 230 Vac | 2,500 VA |
Or do you have different requirements?
We can help you!
STU
Universal control- and safety isolating- resp. isolating transformer
Universal input voltages, PRI 210 – 540 Vac, SEC 24 – 2 x 115 Vac, 63 – 2,500 VA
| Version | Rated input voltage | Rated output voltage | Rated power VDE (DB cos phi=1) | |
|---|---|---|---|---|
| STU 63/24 | 210 Vac/230 Vac/250 Vac/ 380 Vac/400 Vac/420 Vac/ 440 Vac/460 Vac/480 Vac/ 500 Vac/520 Vac/540 Vac | 24 Vac | 63 VA | |
| STU 63/2x115 | 210 Vac/230 Vac/250 Vac/ 380 Vac/400 Vac/420 Vac/ 440 Vac/460 Vac/480 Vac/ 500 Vac/520 Vac/540 Vac | 2 x 115 Vac | 63 VA | |
| STU 100/24 | 210 Vac/230 Vac/250 Vac/ 380 Vac/400 Vac/420 Vac/ 440 Vac/460 Vac/480 Vac/ 500 Vac/520 Vac/540 Vac | 24 Vac | 100 VA | |
| STU 100/2x115 | 210 Vac/230 Vac/250 Vac/ 380 Vac/400 Vac/420 Vac/ 440 Vac/460 Vac/480 Vac/ 500 Vac/520 Vac/540 Vac | 2 x 115 Vac | 100 VA | |
| STU 130/24 | 210 Vac/230 Vac/250 Vac/ 380 Vac/400 Vac/420 Vac/ 440 Vac/460 Vac/480 Vac/ 500 Vac/520 Vac/540 Vac | 24 Vac | 130 VA | |
| STU 130/2x115 | 210 Vac/230 Vac/250 Vac/ 380 Vac/400 Vac/420 Vac/ 440 Vac/460 Vac/480 Vac/ 500 Vac/520 Vac/540 Vac | 2 x 115 Vac | 130 VA | |
| STU 160/24 | 210 Vac/230 Vac/250 Vac/ 380 Vac/400 Vac/420 Vac/ 440 Vac/460 Vac/480 Vac/ 500 Vac/520 Vac/540 Vac | 24 Vac | 160 VA | |
| STU 160/2x115 | 210 Vac/230 Vac/250 Vac/ 380 Vac/400 Vac/420 Vac/ 440 Vac/460 Vac/480 Vac/ 500 Vac/520 Vac/540 Vac | 2 x 115 Vac | 160 VA | |
| STU 250/24 | 210 Vac/230 Vac/250 Vac/ 380 Vac/400 Vac/420 Vac/ 440 Vac/460 Vac/480 Vac/ 500 Vac/520 Vac/540 Vac | 24 Vac | 250 VA | |
| STU 250/2x115 | 210 Vac/230 Vac/250 Vac/ 380 Vac/400 Vac/420 Vac/ 440 Vac/460 Vac/480 Vac/ 500 Vac/520 Vac/540 Vac | 2 x 115 Vac | 250 VA | |
| STU 400/24 | 210 Vac/230 Vac/250 Vac/ 380 Vac/400 Vac/420 Vac/ 440 Vac/460 Vac/480 Vac/ 500 Vac/520 Vac/540 Vac | 24 Vac | 400 VA | |
| STU 400/2x115 | 210 Vac/230 Vac/250 Vac/ 380 Vac/400 Vac/420 Vac/ 440 Vac/460 Vac/480 Vac/ 500 Vac/520 Vac/540 Vac | 2 x 115 Vac | 400 VA | |
| STU 500/24 | 210 Vac/230 Vac/250 Vac/ 380 Vac/400 Vac/420 Vac/ 440 Vac/460 Vac/480 Vac/ 500 Vac/520 Vac/540 Vac | 24 Vac | 500 VA | |
| STU 500/2x115 | 210 Vac/230 Vac/250 Vac/ 380 Vac/400 Vac/420 Vac/ 440 Vac/460 Vac/480 Vac/ 500 Vac/520 Vac/540 Vac | 2 x 115 Vac | 500 VA | |
| STU 630/24 | 210 Vac/230 Vac/250 Vac/ 380 Vac/400 Vac/420 Vac/ 440 Vac/460 Vac/480 Vac/ 500 Vac/520 Vac/540 Vac | 24 Vac | 630 VA | |
| STU 630/2x115 | 210 Vac/230 Vac/250 Vac/ 380 Vac/400 Vac/420 Vac/ 440 Vac/460 Vac/480 Vac/ 500 Vac/520 Vac/540 Vac | 2 x 115 Vac | 630 VA | |
| STU 800/24 | 210 Vac/230 Vac/250 Vac/ 380 Vac/400 Vac/420 Vac/ 440 Vac/460 Vac/480 Vac/ 500 Vac/520 Vac/540 Vac | 24 Vac | 800 VA | |
| STU 800/2x115 | 210 Vac/230 Vac/250 Vac/ 380 Vac/400 Vac/420 Vac/ 440 Vac/460 Vac/480 Vac/ 500 Vac/520 Vac/540 Vac | 2 x 115 Vac | 800 VA | |
| STU 1000/2x115 | 210 Vac/230 Vac/250 Vac/ 380 Vac/400 Vac/420 Vac/ 440 Vac/460 Vac/480 Vac/ 500 Vac/520 Vac/540 Vac | 2 x 115 Vac | 1,000 VA | |
| STU 1600/2x115 | 210 Vac/230 Vac/250 Vac/ 380 Vac/400 Vac/420 Vac/ 440 Vac/460 Vac/480 Vac/ 500 Vac/520 Vac/540 Vac | 2 x 115 Vac | 1,600 VA | |
| STU 2000/2x115 | 210 Vac/230 Vac/250 Vac/ 380 Vac/400 Vac/420 Vac/ 440 Vac/460 Vac/480 Vac/ 500 Vac/520 Vac/540 Vac | 2 x 115 Vac | 2,000 VA | |
| STU 2500/2x115 | 210 Vac/230 Vac/250 Vac/ 380 Vac/400 Vac/420 Vac/ 440 Vac/460 Vac/480 Vac/ 500 Vac/520 Vac/540 Vac | 2 x 115 Vac | 2,500 VA |
Or do you have different requirements?
We can help you!
STSU
Control- and safety isolating- resp. isolating transformer with shielding winding
Shielding winding between input and output, Dual input voltage 230 and 400 Vac, SEC 2 x 12 2 x 115 Vac , 40 – 2,500 VA
| Version | Rated input voltage | Rated output voltage | Rated power VDE (DB cos phi=1) | |
|---|---|---|---|---|
| STSU 40/48 | 230/400 Vac | 2 x 24 Vac | 40 VA | |
| STSU 63/23 | 230/400 Vac | 2 x 115 Vac | 63 VA | |
| STSU 63/24 | 230/400 Vac | 2 x 12 Vac | 63 VA | |
| STSU 63/48 | 230/400 Vac | 2 x 24 Vac | 63 VA | |
| STSU 100/23 | 230/400 Vac | 2 x 115 Vac | 100 VA | |
| STSU 100/24 | 230/400 Vac | 2 x 12 Vac | 100 VA | |
| STSU 100/48 | 230/400 Vac | 2 x 24 Vac | 100 VA | |
| STSU 160/23 | 230/400 Vac | 2 x 115 Vac | 160 VA | |
| STSU 160/24 | 230/400 Vac | 2 x 12 Vac | 160 VA | |
| STSU 160/48 | 230/400 Vac | 2 x 24 Vac | 160 VA | |
| STSU 250/23 | 230/400 Vac | 2 x 115 Vac | 250 VA | |
| STSU 250/24 | 230/400 Vac | 2 x 12 Vac | 250 VA | |
| STSU 250/48 | 230/400 Vac | 2 x 24 Vac | 250 VA | |
| STSU 400/23 | 230/400 Vac | 2 x 115 Vac | 400 VA | |
| STSU 400/24 | 230/400 Vac | 2 x 12 Vac | 400 VA | |
| STSU 400/48 | 230/400 Vac | 2 x 24 Vac | 400 VA | |
| STSU 630/23 | 230/400 Vac | 2 x 115 Vac | 630 VA | |
| STSU 630/24 | 230/400 Vac | 2 x 12 Vac | 630 VA | |
| STSU 630/48 | 230/400 Vac | 2 x 24 Vac | 630 VA | |
| STSU 1000/23 | 230/400 Vac | 2 x 115 Vac | 1,000 VA | |
| STSU 1000/24 | 230/400 Vac | 2 x 12 Vac | 1,000 VA | |
| STSU 1000/48 | 230/400 Vac | 2 x 24 Vac | 1,000 VA | |
| STSU 1600/23 | 230/400 Vac | 2 x 115 Vac | 1,600 VA | |
| STSU 2000/23 | 230/400 Vac | 2 x 115 Vac | 2,000 VA | |
| STSU 2500/23 | 230/400 Vac | 2 x 115 Vac | 2,500 VA |
Or do you have different requirements?
We can help you!
TT1
Control- and safety isolating- resp. isolating transformer
Fixing rail, PRI 230/400 Vac, SEC 24, 42, 2 x 115 Vac, 1,000 – 25,000 VA
| Version | Rated input voltage | Rated output voltage | Rated power VDE (DB cos phi=1) | |
|---|---|---|---|---|
| TT1 1-4-23 | 380/400/420 Vac | 2 x 115 Vac | 1,000 VA | |
| TT1 1-23-24 | 219/230/241 Vac | 24 Vac | 1,000 VA | |
| TT1 1,6-4-23 | 380/400/420 Vac | 2 x 115 Vac | 1,600 VA | |
| TT1 1,6-4-42 | 380/400/420 Vac | 42 Vac | 1,600 VA | |
| TT1 1,6-23-24 | 219/230/241 Vac | 24 Vac | 1,600 VA | |
| TT1 2-4-23 | 380/400/420 Vac | 2 x 115 Vac | 2,000 VA | |
| TT1 2-23-24 | 219/230/241 Vac | 24 Vac | 2,000 VA | |
| TT1 2,5-4-23 | 380/400/420 Vac | 2 x 115 Vac | 2,500 VA | |
| TT1 2,5-4-42 | 380/400/420 Vac | 42 Vac | 2,500 VA | |
| TT1 2,5-23-24 | 219/230/241 Vac | 24 Vac | 2,500 VA | |
| TT1 3-4-23 | 380/400/420 Vac | 2 x 115 Vac | 3,000 VA | |
| TT1 3-5-23 | 475/500/525 Vac | 2 x 115 Vac | 3,000 VA | |
| TT1 3-44-23 | 418/440/462 Vac | 2 x 115 Vac | 3.000 VA | |
| TT1 4-4-23 | 380/400/420 Vac | 2 x 115 Vac | 4,000 VA | |
| TT1 4-5-23 | 475/500/525 Vac | 2 x 115 Vac | 4,000 VA | |
| TT1 4-44-23 | 418/440/462 Vac | 2 x 115 Vac | 4,000 VA | |
| TT1 5-4-23 | 380/400/420 Vac | 2 x 115 Vac | 5,000 VA | |
| TT1 5-5-23 | 475/500/525 Vac | 2 x 115 Vac | 5,000 VA | |
| TT1 5-44-23 | 418/440/462 Vac | 2 x 115 Vac | 5,000 VA | |
| TT1 6,3-4-23 | 380/400/420 Vac | 2 x 115 Vac | 6,300 VA | |
| TT1 6,3-5-23 | 475/500/525 Vac | 2 x 115 Vac | 6,300 VA | |
| TT1 6,3-44-23 | 418/440/462 Vac | 2 x 115 Vac | 6,300 VA | |
| TT1 8-4-23 | 380/400/420 Vac | 2 x 115 Vac | 8,000 VA | |
| TT1 8-5-23 | 475/500/525 Vac | 2 x 115 Vac | 8,000 VA | |
| TT1 8-44-23 | 418/440/462 Vac | 2 x 115 Vac | 8,000 VA | |
| TT1 10-4-23 | 380/400/420 Vac | 2 x 115 Vac | 10,000 VA | |
| TT1 10-5-23 | 475/500/525 Vac | 2 x 115 Vac | 10,000 VA | |
| TT1 10-44-23 | 418/440/462 Vac | 2 x 115 Vac | 10,000 VA | |
| TT1 12,5-4-23 | 380/400/420 Vac | 2 x 115 Vac | 12,500 VA | |
| TT1 15-4-23 | 380/400/420 Vac | 2 x 115 Vac | 15,000 VA | |
| TT1 20-4-23 | 380/400/420 Vac | 2 x 115 Vac | 20,000 VA | |
| TT1 25-4-23 | 380/400/420 Vac | 2 x 115 Vac | 25,000 VA |
Or do you have different requirements?
We can help you!
UTT1
Universal control- and isolating transformer
Universal input voltages, PRI 208 – 600 Vac, SEC 2 x 115 Vac, 4000 – 6000 VA
| Version | Rated input voltage | Rated output voltage | Rated power VDE (DB cos phi=1) | |
|---|---|---|---|---|
| UTT1-4-23 | 208 Vac/ 230 Vac/ 380 Vac/ 400 Vac/ 415 Vac/ 440 Vac/ 460 Vac/ 480 Vac/ 500 Vac/ 525 Vac/ 550 Vac/ 575 Vac/ 600 Vac | 2 x 115 Vac | 4000 VA | |
| UTT1-6-23 | 208 Vac/ 230 Vac/ 380 Vac/ 400 Vac/ 415 Vac/ 440 Vac/ 460 Vac/ 480 Vac/ 500 Vac/ 525 Vac/ 550 Vac/ 575 Vac/ 600 Vac | 2 x 115 Vac | 6000 VA |
Or do you have different requirements?
We can help you!
FST
FAIL-SAFE transformer
DIN rail, PRI 230/400 Vac, SEC 24/230 Vac, 100 VA/160 VA/250 VA
| Version | Rated input voltage | Rated output voltage | Rated power VDE (DB cos phi=1) | |
|---|---|---|---|---|
| FST 100/23 | 230 Vac/400 Vac | 230 Vac | 100 VA | |
| FST 100/24 | 230 Vac/400 Vac | 24 Vac | 100 VA | |
| FST 160/23 | 230 Vac/400 Vac | 230 Vac | 160 VA | |
| FST 160/24 | 230 Vac/400 Vac | 24 Vac | 160 VA | |
| FST 250/23 | 230 Vac/400 Vac | 230 Vac | 250 VA | |
| FST 250/24 | 230 Vac/400 Vac | 24 Vac | 250 VA |
Or do you have different requirements?
We can help you!
BUST
Control transformer
PRI 230 – 500 Vac, SEC 24 – 2 x 115 Vac, 1,000 – 10,000 VA ,
| Version | Rated input voltage | Rated output voltage | Rated power VDE (DB cos phi=1) | |
|---|---|---|---|---|
| BUST 1000/23/24 | 230 Vac | 24 Vac | 1,000 VA | |
| BUST 1000/4/23 | 400 Vac | 2 x 115 Vac | 1,000 VA | |
| BUST 1600/23/24 | 230 Vac | 24 Vac | 1,600 VA | |
| BUST 1600/4/23 | 400 Vac | 2 x 115 Vac | 1,600 VA | |
| BUST 1600/4/42 | 400 Vac | 42 Vac | 1,600 VA | |
| BUST 2000/23/23 | 230 Vac | 2 x 115 Vac | 2,000 VA | |
| BUST 2000/4/23 | 400 Vac | 2 x 115 Vac | 2,000 VA | |
| BUST 2500/4/23 | 400 Vac | 2 x 115 Vac | 2,500 VA | |
| BUST 3000/4/23 | 400 Vac | 2 x 115 Vac | 3,000 VA | |
| BUST 3000/44/23 | 440 Vac | 2 x 115 Vac | 3,000 VA | |
| BUST 3000/5/23 | 500 Vac | 2 x 115 Vac | 3,000 VA | |
| BUST 4000/23/23 | 230 Vac | 2 x 115 Vac | 4,000 VA | |
| BUST 4000/4/23 | 400 Vac | 2 x 115 Vac | 4,000 VA | |
| BUST 4000/5/23 | 500 Vac | 2 x 115 Vac | 4,000 VA | |
| BUST 4000/44/23 | 440 Vac | 2 x 115 Vac | 4,000 VA | |
| BUST 5000/23/23 | 230 Vac | 2 x 115 Vac | 5,000 VA | |
| BUST 5000/4/23 | 400 Vac | 2 x 115 Vac | 5,000 VA | |
| BUST 6300/4/23 | 400 Vac | 2 x 115 Vac | 6,300 VA | |
| BUST 6300/44/23 | 440 Vac | 2 x 115 Vac | 6,300 VA | |
| BUST 6300/5/23 | 500 Vac | 2 x 115 Vac | 6,300 VA | |
| BUST 8000/4/23 | 400 Vac | 2 x 115 Vac | 8,000 VA | |
| BUST 10000/4/23 | 400 Vac | 2 x 115 Vac | 10,000 VA |
Or do you have different requirements?
We can help you!
